CCS2 Single EV charger Series

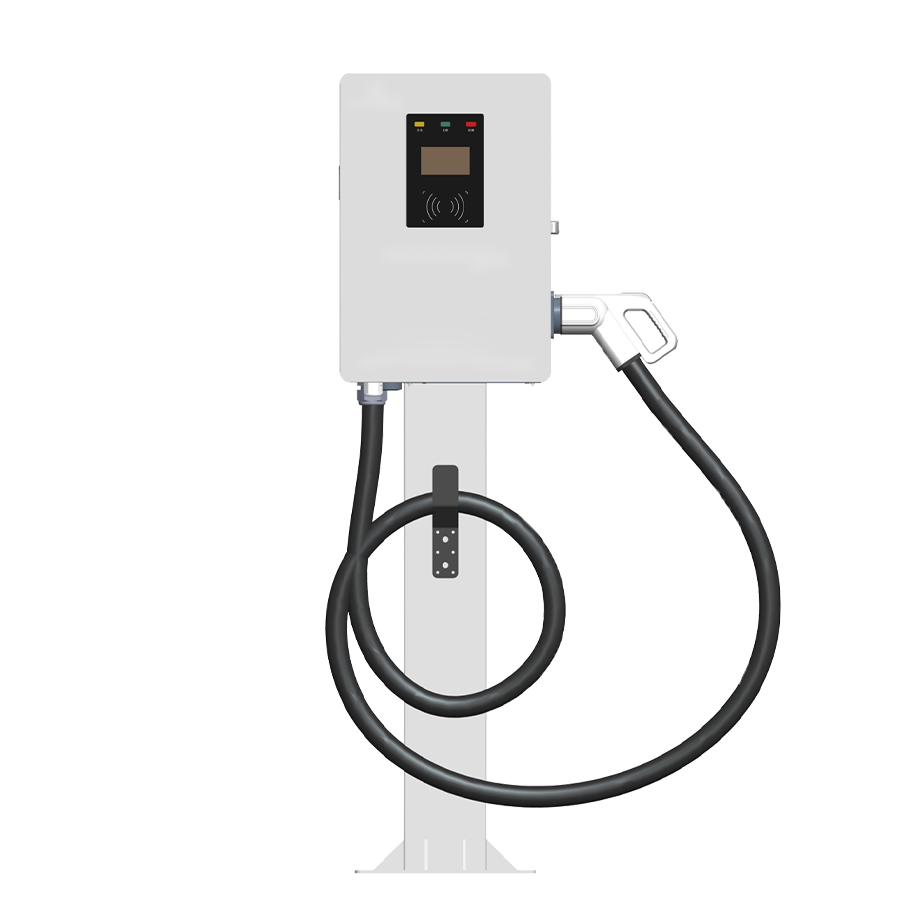

Compact DC Charger

High-Efficiency DC EV Charger for Commercial and Fleet Use

Flexible power, compact design, and robust protection — this single-port CCS2 DC fast charger delivers fast, safe, and future-ready EV charging for a wide range of applications.

Load Balancing
RFID
Plug & Play
OCPP
Wi-Fi
4G

Get a Quote Spec Sheet

3

Power Options

50 A

Output Current

750 V

Max DC Range

<60 dB

Noise Level

High-Efficiency Compact DC Charger

Versatile Charging Power

1. 20kW / 30kW / 40kW power options to scale across public and commercial EV charging needs.

Single-Port CCS2 Output

1.With intelligent load control, ensures optimal energy use for each session.

Multiple Start Modes

1. Plug & Charge, RFID, and optional POS enable smooth access for various use cases.

OCPP and Network Ready

1. Supports OCPP 1.6J, 4G/Wi-Fi/Ethernet — ready for smart integration and platform scalability.

Safety and Protection Built-In

1.IP54, IK08, RCD Type A, and full electrical protections ensure safe long-term operation.

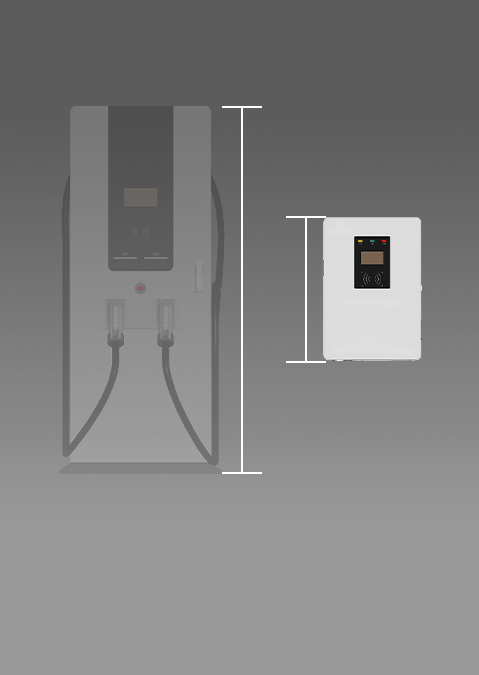

Compact Installation Design

1.Wall-mountable with efficient fan cooling, optimized for tight or retrofitted environments.

Key Features OF EV charger at a Glance
Innovative Details, Premium Quality

Lower Total Cost of Ownership for DC EV Charging Stations

Our wall-mounted DC EV charger is engineered for easy, low-cost installation and reduced maintenance. Its compact, quiet design minimizes both setup expenses and service labor, cutting overall costs. This efficiency makes it the ideal cost-effective solution for large-scale EV charging deployments.

Boost Revenue Efficiency for Public and Fleet Charging Networks

Offering 20kW, 30kW, and 40kW fast charging with a maximum output of 50A, our charger accelerates charging turnover. With MID-certified metering and Plug & Charge capability, precise billing and seamless user access are guaranteed. This ensures higher utilization and revenue for both public charging stations and fleet operations.

Future-Proof Scalability for Smart EV Charging Networks

Equipped with OCPP 1.6J and versatile connectivity options (4G, Wi-Fi, and Ethernet), this charger integrates easily into smart grid systems. It supports scalable network expansion for evolving commercial infrastructures. This future-ready solution is perfect for businesses planning long-term growth in the EV charging market.

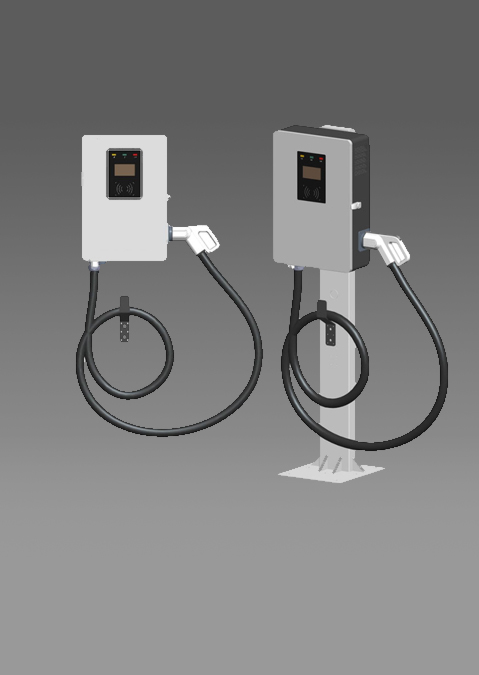

UNR1 vs. UNR1Pro – Key Differences

Specifications

Input

Input Power Supply: 3P + N + PE

Input Voltage: 400V AC ±15%

Input Frequency: 50/60 Hz

Output

Output Voltage: 200V–750V DC

Maximum Current: 50A

Rated Power: 20kW / 30kW / 40kW

User Interface

Charge Connector: CCS2 cable

Cable Length: 5m

Enclosure Material: Galvanized steel

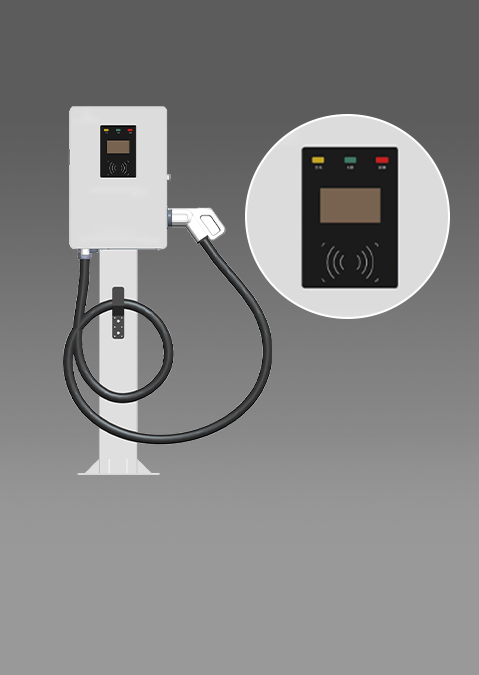

LED Indicator: Green / Yellow / Red

LCD Display: 4.3-inch

RFID Reader: Mifare ISO/IEC 14443 A

Start Mode: Plug & Charge / RFID card

Emergency Stop: Optional

Safety & Protection

Energy Meter: MID certified

RCD: Type A

Ingress Protection: IP54

Impact Protection: IK08

Electrical Protection: Overcurrent protection, Short-circuit protection, Ground protection, Surge protection, Over/Under voltage protection, Over/Under frequency protection, Over/Under temperature protection

Certifications

Certification: CE

Certification Standard: EN/IEC 61851-1:2017, EN/IEC 61851-23:2014

Warranty: 2 years

Environmental Conditions

Installation Type: Wall-mount

Cooling Method: Fan cooling

Noise Level: <60 dB

Operating Temperature: -30°C to +50°C

Operating Humidity: 5% to 95%

Maximum Altitude: <2000m

Packaging

Product Dimensions: 600 x 410 x 156 mm (H x W x D)

Package Dimensions: 815 x 525 x 390 mm (L x W x H)

Net Weight: 38kg

Gross Weight: 41kg

External Packaging: Carton
