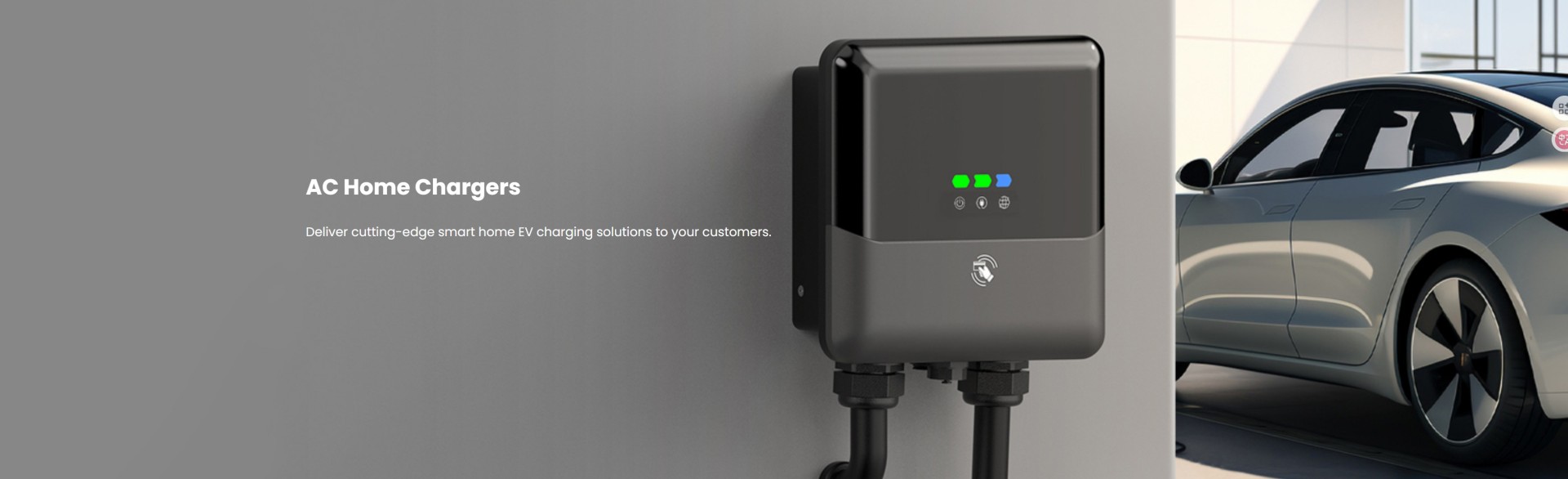

AC Home Chargers

UN Residential EV Charging Series

80A Home Charger

Efficient heat management enables true 80A home charging

The UN Series achieves high-current performance within a compact body through ULandPower's 3D multi-layer thermal management system. That ensures exceptional cooling efficiency, reliable stability, and user safety under full-load operation.

Remote O&M
Scheduler
PV Charging
Load Balancing
App
RFID
Plug to Play
Wi-Fi
Bluetooth

80 A

80A Fast Charging

15 min

15 minutes hassle-free setup

3 years

3-years warranty

0 OEM

We can provide professional
OEM I ODM service.

80amp Charger

Compact and Powerful

14× faster 80A high-current charging in a compact hox. Designed for home users who value speed and space efficiency.

Advanced Thermal Control

3D multi-layer cooling structure + copper heat plates + thermal grease for fast heat conduction and stable full-load operation, even at 50°C ambient temperature with only +12°C surface rise.

Safe and Reliable

High-temperature resistant relay minimizes heat generation, extending relay lifespan and ensuring safe performance during continuous operation.

Smart Charging Experience

Start charging via Bluetooth key, Plug & Play, RFID, or APP. Control and monitor through the U-Charger APP.

Adaptive Load Management

When paired with the energy monitor, the charger automatically adjusts charging power based on household load or solar input to prevent grid overload.

Custom Lighting & Aesthetic

U-shaped ambient light bar with adjustable color and animation modes via the APP, adds brand identity and visual feedback for charging status.

Compact size. Exceptional cooling. Reliable safety.ULandPower’s 3D cooling system ensures stable output and safe temperatures.

High-efficiency Relay for minimal heat and longer service life
Hardware Optimization
3D multi-layer cooling channels for optimized heat transfer

1st-layer Cooling Design
Copper-based
conduction
2nd-layer Cooling Design
Back metal plate

and thermal paste

3rd-layer Cooling Design

Key Features OF EV charger at a Glance
Innovative Details, Premium Quality

Expand Your Portfolio with 80A Home EV Chargers

Meet growing demand for faster home charging with the UN Series 80A, a compact, high-performance residential EV charger that supports both SAE J1772 and NACS connectors.

Offer your customers the next level of charging speed and safety in one refined design.

Lower After-Sales Costs with Reliable Thermal Engineering

Built with ULandPower's multi-layer thermal management system, the charger minimizes heat generation and enhances stability under full-load operation.

This innovation significantly reduces component wear, extending lifespan and lowering maintenance and warranty expenses for partners.

Accelerate Market Growth with OEM/ODM EV Charger Solutions

Leverage ULandPower's OEM/ODM customization to quickly adapt to market needs, from branding and user interface design to firmware integration and testing.

Our end-to-end support helps distributors and energy solution providers achieve faster go-to-market and stronger brand differentiation.

OEM/ODM solution

SINEXCEL BLADE AHF

UN1 Type 1&NACS Specifications

Rated Power: 80A

Voltage: 208/240V, 180 to 264 VAC

Input Connector: Default cable*1m, Hardwired Optioanl;

Charging Connector: SAE J1772 (Type 1), SAE J4300 (NACS) Optional

Mounting Type: Wall-mount / Pedestal-mount

Cable Length: 25ft

Display: Segmented display

Remote control: U-Charger APP

Network Interface: WiFi/BT Standard

Extend:Without

Enclosure Rating: Type 3

Operating Altitude: ≤2000m, No Derating

Safety Protection: Ground Fault Detection: CCID20, Ground Monitor: UL2231, Surge Protection: 6kV @3,000A

Protection: UVP, OVP, OCP, OTP, Control Pilot Fault Protection, Relay-sticking protection, Ground Fault Protection

Safety Compliance: UL 2594 / CSA C22.2 No. 280-16, UL 2231-1 / CSA C22.2 No. 281.1-12, UL 2231-2 / CSA C22.2 No. 281.2-12

Certifications: ETL, FCC

Net Weight: 8.9KG

Gross Weight: 10.6KG

Product Dimensions: 341W*200D*111H(mm)

Package Dimensions: 474W*463D*295H(mm)

UN2 Type 1&NACS Specifications
