CCS2 Dual Port 120kW DC Charger For Business MAX 320kW

CCS2 Dual Port EV charger Series

High-Powered Dual Port DC Charger

Future-Proof EV Charging for High-Traffic Commercial Use

A smart, safe, and cost-efficient DC charging solution with ultra-fast speed, OCPP compliance, and multi-network connectivity to future-proof your EV business.

Load Balancing
RFID
Plug & Play
OCPP
Wi-Fi
Ethernet
4G
3G

Get a Quote Spec Sheet

320 kW

Max Power Output

1000 V

Max Output Voltage

4

Connectivity Options

2 Years

2-years warranty

CCS2 Fast EV Charger

Versatile Charging Power

1. Supports 120kW, 160kW, 240kW, and 320kW models — ideal for commercial fleets, EV stations, and future upgrades.

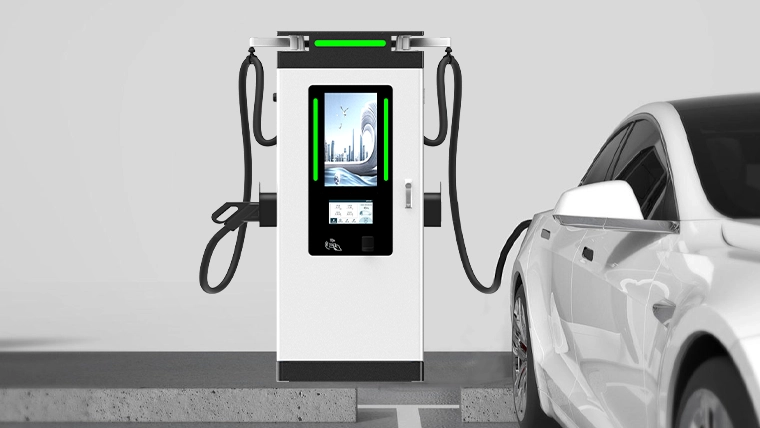

Dual-Port Design

1.CCS2 dual cable with intelligent power distribution, enabling two vehicles to charge simultaneously at high efficiency.

Smart User Activation

1. Supports Plug & Charge, RFID, App control, and optional POS — simplifying public and semi-public charging scenarios.

Advanced Connectivity

1.Compatible with Ethernet, 3G/4G, and OCPP 1.6J for seamless back-end integration with charging platforms.

High Safety & IP Protection

1.IP54-rated galvanized steel enclosure with built-in safeguards: over-voltage, over-temperature, surge, RCD, and MID-certified energy metering.

Load Balancing & Efficiency

1.Dynamically allocates power across multiple chargers, optimizing energy distribution and ensuring efficient charging in high-demand environments.

Key Features OF EV charger at a Glance
Innovative Details, Premium Quality

Minimize Operational Costs with Modular Design for Easy Maintenance

Thanks to its modular structure and compatibility with general electrician support, the charger requires minimal training and lower maintenance cost, increasing uptime and ROI.

Maximize Charging Revenue with Dual-Vehicle Charging & POS Integration

Supports dual-vehicle concurrent charging and POS billing integration, allowing station owners to maximize throughput and monetization in public or fleet applications.

Future-Ready EV Charger with OCPP 1.6, Cloud Integration, and Scalable Connectivity

DC Charger with OCPP 1.6 support, cloud platform integration, and 4G/Wi-Fi/Ethernet options, this charger is fully future-ready for smart city infrastructure, dynamic load balancing, and scalable network upgrades.

CCS2 Dual Port 120kW DC Charger For Business MAX 320kW

Specifications

Input

Power Supply: 3P + N + PE

Voltage Range: 400V AC ±15%

Frequency: 50/60Hz

Output

Voltage Range: 200–1000V DC

Maximum Current: 250A

Rated Power: 120kW / 160kW / 240kW / 320kW

User Interface

Connector Type: CCS2 cable

Cable Length: 5m

Enclosure Material: Galvanized steel

LED Indicator: Green / Yellow / Red

LCD Screen: 7” color touchscreen

RFID Reader: Mifare ISO/IEC 14443 A

Start Mode: Plug & Charge / RFID card

Emergency Stop: Optional

POS Terminal: Optional

Communication

Wi-Fi / Ethernet / 3G/4G: Optional

Protocol Support: OCPP 1.6 (JSON)

Electrical Parameters

Efficiency: Max 95%

Power Factor: ≥99% (50%–100% load)

THD: ≤5% @ 100% load

Ripple Factor: ≤+1%

Safety & Protection

Energy Meter: MID certified

RCD: Type A

IP Rating: IP54

Impact Protection: IK08

Protections:

Over-current, Short-circuit, Ground fault, Surge,

Over/Under Voltage, Frequency & Temperature

Certification & Warranty

Certifications: CE

Standards: EN/IEC 61851-1:2017, 61851-23:2014

Warranty: 2 Years

Environment

Installation: Floor-stand

Cooling: Fan cooling

Noise Level: <60 dB

Operating Temperature: -30°C ~ +50°C

Humidity: 5% ~ 95%

Altitude: <2000m

Package & Dimensions

Product Size:

750×450×1700mm / 750×530×1700mm (H×W×D)

Package Size: 1020×670×1900mm (L×W×H)

Net Weight: 220kg / 250kg

Gross Weight: 260kg / 290kg

External Packaging: Wood case
