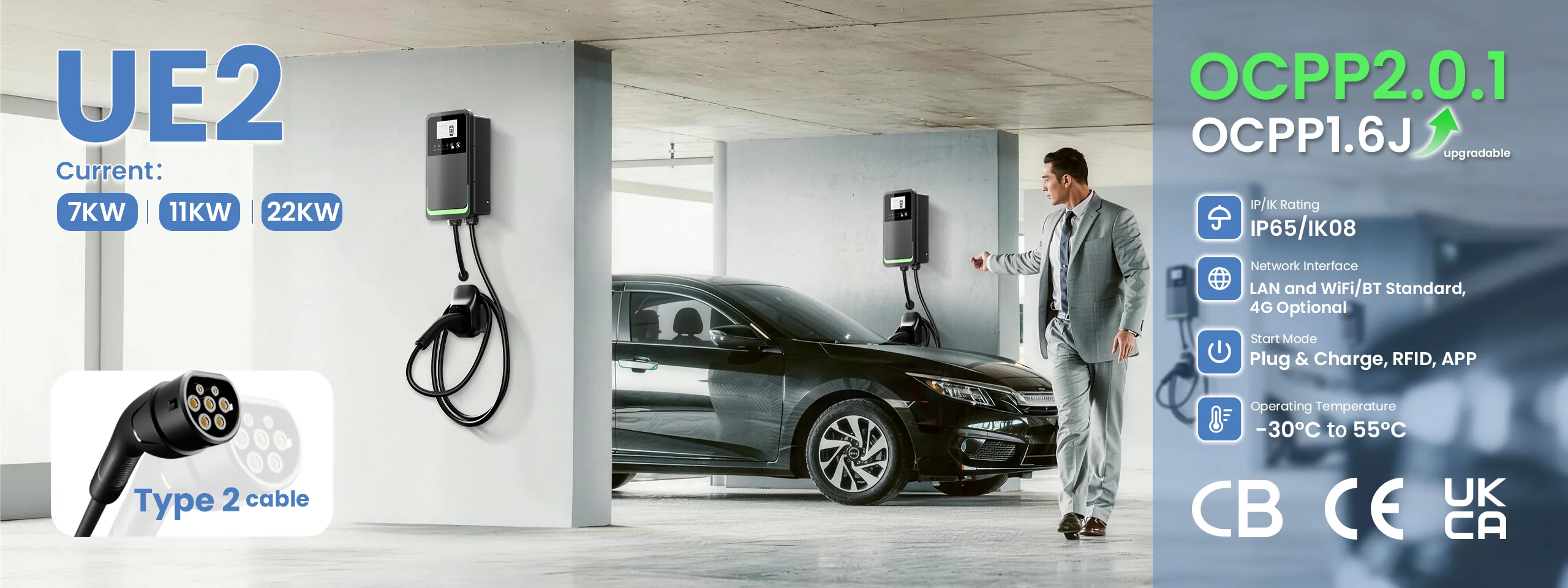

UE2
22kW AC Charger for Europe
Provides up to 22kW (32A three-phase) with Type 2 connector. Includes 4.3" colour LCD, RFID card activation, OCPP 1.6J/2.0.1, LAN/Wi-Fi/BT (4G optional), and IP65 housing. CE certified. Fully customisable.
Durable Display. Distinctive Brand.
UE2's 4.3" screen is made with tough, scratch-resistant glass and responds easily to gloved hands. Readable even in direct sunlight. Complete branding freedom — your logo, your colors, your layout. Ready for commercial use.

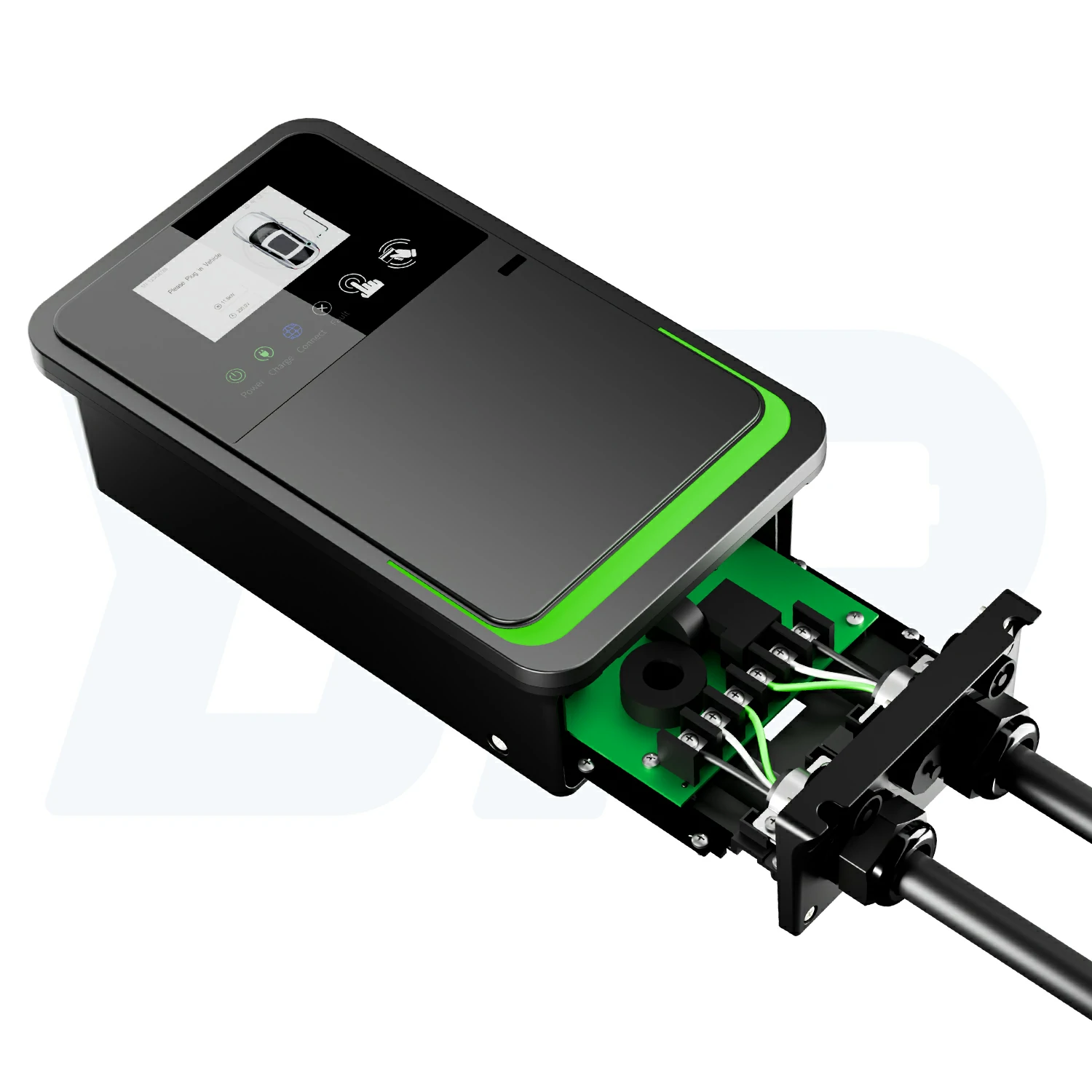

Designed for Installers. Built for Scale.
UE2's retractable drawer design allows easy access for fast installation and simple maintenance. Reduces labor time and rollout costs.
60% Less Idle Power
Smart standby cuts idle power by 60% — reducing electricity costs across large-scale deployments.
Size and Packaging
Launch Your Own Branded Commercial EV Charger
UN2 is built for white-label deployment. Customize hardware, enclosure, LCD UI, and software to match your brand and accelerate time to market.
Contact usWhat Do You Want To KnowFAQ
We have made a general analysis of your questions
Our FAQ section is here to help you navigate common questions and concerns. Whether you’re looking for detailed explanations, guidance on using our products, or information about our services, this is the place to find clear, reliable answers.
-
+ -
Can it work with our existing charging management platform?
Yes. This serie supports OCPP 1.6J and can be upgraded to OCPP 2.0.1, making it compatible with most commercial charging platforms. You can remotely monitor EV chargers, manage users, set pricing, view data, and perform OTA updates through your backend system.
-
+ -
How reliable is the network connection, especially in parking garages?
The charger supports Wi-Fi, Ethernet, Bluetooth, and optional 4G, giving you flexible connectivity options.
For sites with weak signals, such as underground parking garages, it can also support wireless mesh networking, which helps maintain a stable online connection across multiple chargers without relying on a single network source. Please contact us to discuss availability and site-specific requirements. -
+ -
Can I visit your factory?
Yes. You’re welcome to visit our factory and review our production process and quality control system. Visits are appointment-based, please book your time slot with our team.
-
+ -
I'm new to EV charging. Can I still customize an EVSE?
Absolutely. You don’t need prior experience. Our team will help you confirm the specs and recommend the right solution for your project.
| Model No. | UE2 | ||
| UE2-P7 | UE2-P11 | UE2-P22 | |
| ELECTRICAL SPECIFICATION | |||
| Input Connector | Default cable *1m | ||
| Voltage | 230Vac±10% | 400Vac±10% | |
| Amperage/Power Output | 32A/7KW | 16A/11KW | 32A/22KW |
| Energy Metering Accuracy | ±1% | ||
| Mounting Option | Wall or Pedestal mount, Pedestal Optional | ||
| CHARGING INTERFACE | |||
| Charging Connector | IEC 62196-2 Compliant, Type 2 cable | ||
| Charging Cable Length | 5m Standard, 7m Optional | ||
| USER INTERACTION | |||
| Display | 4.3”color LCD, 480 x 272 | ||
| LED Status Indicator | POWER/CHARGING/CONNECT/FAULT status indication | ||
| Touch Button | Wake up the device from sleep | ||
| RFID | ISO14443 Type A&B | ||
| COMMUNICATION | |||
| Network Interface | LAN and WiFi/BT Standard, 4G Optional | ||
| Charging Protocol | OCPP1.6J/OCPP2.0.1 | ||
| ISO15118 | Optional | ||
| Extend | RS485*1 Standard,RS485*2 Optional | ||
| Config Tool | Web Portal over LAN or WiFi | ||
| SAFETY & COMPLIANCE | |||
| RCD | TypeA+DC6mA | ||
| Surge Protection | 4kV @2,000A | ||
| Protection | UVP(UnderVoltage), OVP(OverVoltage), OCP(OverCurrent), OTP(OverTemp), Control Pilot Fault Protection, Relay-sticking protection, Ground Fault Protection,O-PEN Protection | ||
| Safety Compliance | IEC61851-1, IEC61851-21-2, EN 62311, EN 62479, IEC/EN 62955 | ||
| Certification | CE/CB/UKCA | ||
| ENVIRONMENTAL | |||
| Operating Temperature | -30℃ ~ 55℃ | ||
| Operating Humidity | 5%~95% RH, Non-condensing | ||
| Operating Altitude | ≤2000m, No Derating | ||
| IP/IK Level | IP65/IK08 | ||
| SPECIFICATION | |||
| Net Weight | 5.2kg | 6.4kg | |
| Gross Weight | 6.9kg | 8.1kg | |
| Product Dimensions | 341W*200D*111H(mm) | ||
| Package Dimensions | 438W*373D*315H(mm) | ||
request a quote now
- Multiple charging levels available
- Compatible with most EVs
- Scalable for all types of businesses
- State-of-the-art safety features
