EnerSync Power Monitor

The foundation of a smarter, safer EnerSync home EV charging ecosystem.

A high-precision EnerSync Power Monitor providing real-time energy insight for safer, smarter home EV charging.

Remote O&M
PV Charging
Load Balancing
Wi-Fi
Ethernet
Bluetooth

Get a Quote Spec Sheet

EnerSync Power Monitor: Smart Power Control Made Practical

High-Precision Real-Time Monitoring

Current sampling rate: 7.2 kHz, measurement accuracy: ±1%, maximum range up to 200A, supporting 2 channels of three-phase monitoring.

Intelligent Charging Management Algorithm

Built-in smart charging management algorithm dynamically balances EV chargers and household loads, prioritizes solar energy use, and delivers safe, economical, and fully automated EV charging.

Safety & Reliability

Non-contact measurement ensures no impact on monitored circuits and complies with ETL and CE certification standards for secure operation.

Convenient Maintenance

It supports Ethernet and Wi-Fi connectivity, enables remote management and OTA updates, and features a one-touch reset for easy maintenance.

7*24h
Uninterrupted
monitor

How the Power Monitor Interacts with Home Energy System

1. Sense: CT clamps detect real-time, bidirectional current flow

Current transformers (CTs) capture the live electrical load from the home grid and solar system, measuring both import and export power in real time.

2. Transmit: CT data is delivered to the EnerSync Power Monitor

The Power Monitor receives the CT measurements, processes them locally, and generates accurate, up-to-the-second load information.

3. Control: Power Monitor sends commands to the EV charger

The Power Monitor communicates the processed data to the EV charger, enabling intelligent load balancing, safer charging decisions, and smooth coordination across multiple EVs.

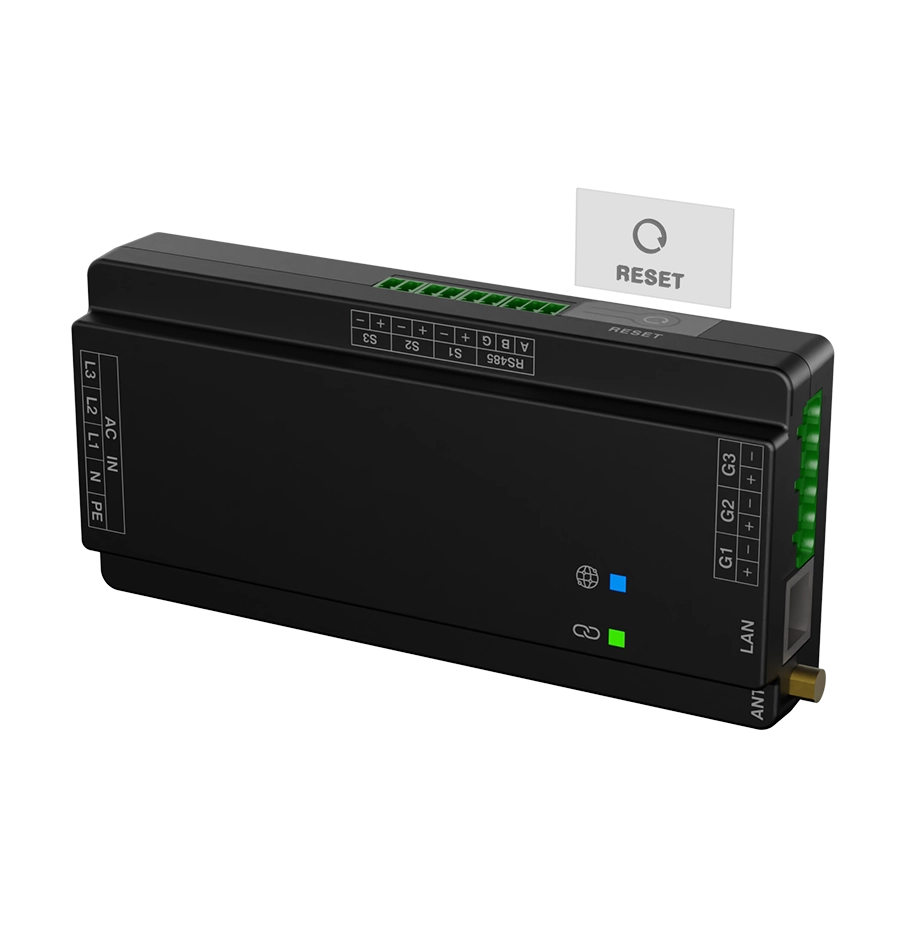

EnerSync Power Monitor
Unboxing and Installation

Build a Smarter, Safer Home Charging System with EnerSync solution

Unlock real-time monitoring, smart load balancing, solar-first charging, and seamless multi-EV coordination, all in one integrated home EV charging energy solution.

Learn More about EnerSync

Power Monitor Specifications

Model No.: EPM01
Input: 110-240 VAC ，50-60Hz
Measurement Accuracy: ±1%
Maximum Value of Voltage Measurement: 264VAC L-N Per Channel
Voltage Measurement Channels: 3

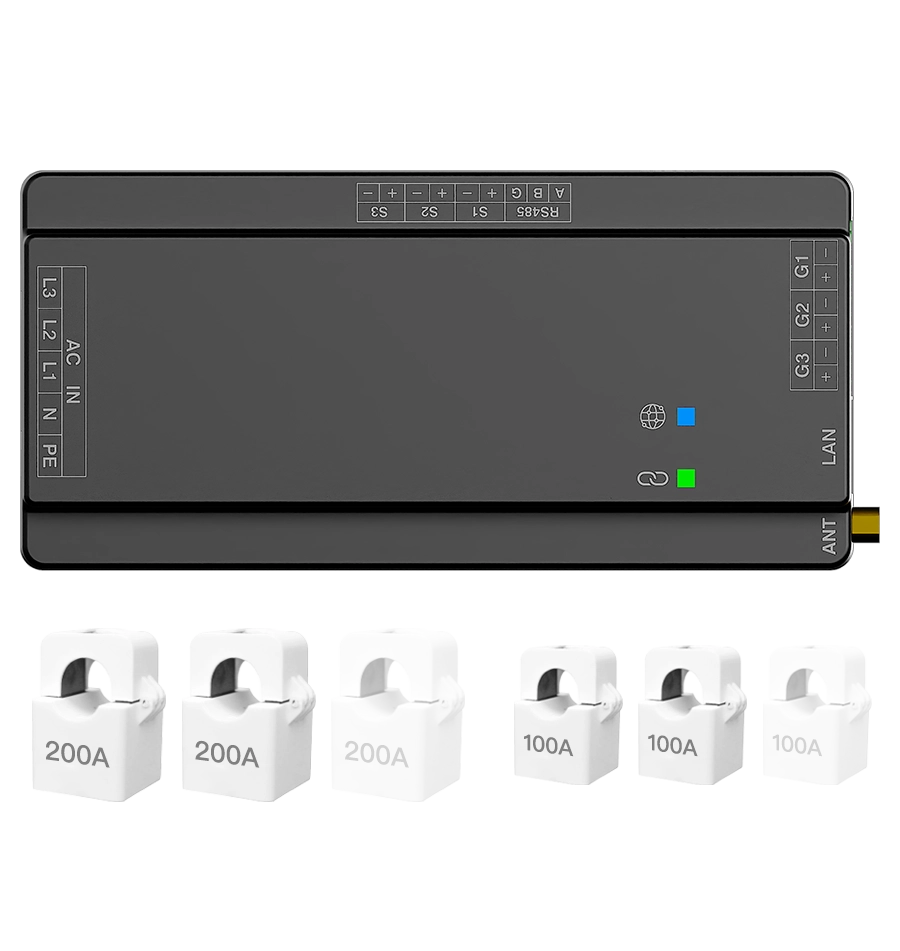

Current Measurement Channels: 200A: 3 100A: 3
Power usage: <3 watts
Wi-Fi: 2.4 GHz IEEE 802.11b/g/n
Ethernet: 10/100Base-T, IEEE 802.3
Operating conditions: -22° to 140° F (-30° to 60° C) | 0 to 95% RH Up to 3,000 meters
Certifications: Safety: UL 61010, UL 2808 EMC: FCC, ISED, CE, PSE, UKCA
Measurement Category:
200ACT Ports: Measurement Category IV
100A CT Ports: Measurement Category III
CT Wire Length: 1m
CT Inside Diameter: 200A CT: 22mm 100A CT: 15mm
