NA UN1 up to 80 Amp EV Chargers Business OCPP RFID NACS J1772 with ETL

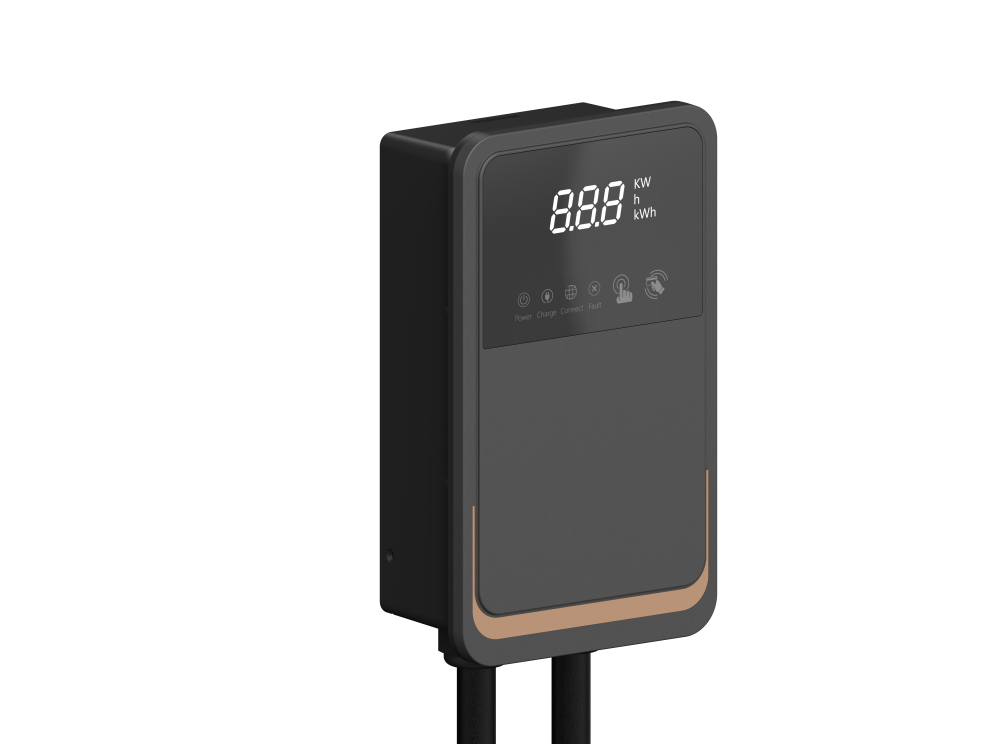

The ULandpower UN1 and UN1Pro are North American Level 2 commercial EV chargers. They offer customizable power outputs of 32A/7.6kW, 40A/9.6kW, 48A/11.5kW, and 80A/19.2kW. Featuring a digital display, they are priced the same as other non-display chargers. The screen clearly shows all charging states, including POWER, CHARGING, CONNECT, and FAULT.

● OEM/ODM
● 32A/7.6KW, 40A/9.6KW, 48A/11.5KW, 80A/19.2KW
● OCPP1.6J, OCPP2.0.1 optional
● Ethernet/Wi-Fi/Bluetooth standard, 4G optional

Warranty 3 Years
technical-support

Request a Quote Download

Innovative Convenient Enclosure

Digital display

Equivalent price to other no-screen charger. Screen displays all charging states directly. One-button wake-up touch.

Modular design

Highly reliable hardware architecture improves the reliability and maintainability of product. Shorten product upgrade development cycle, reduce development and certification costs.

Drawer designed enclosure

under 15 mins for easy installation & maintenance.

PC&ASA material

over 3 years’UV resistance and yellow resistance.

Strong Communication

OCPP1.6J, OCPP2.0.1 optional. Connected successfully with 30+global EVC platforms.
Supoort ISO15118 optional, Plug & Charge.
Activated by RFID authentication optional.
Multi-communications: Ethernet/Wi-Fi/Bluetooth standard, 4G optional.
2*RS485 standard.
Debug Tool: Wireless debug over SSH over LAN.

Dedicated Feature

Virtual wireless Mesh Networking

In the wireless mesh deployment, multiple Mesh EVSEs are deployed as part of the same network. Reliable wireless Self-organized Network solutions for multiple charger, Improve the charger online rate.

Multiple Chargers Dynamic Load Balancing

Dynamically manage and adjust the charging load for each charge points. optimally utilizing available power for charging EVs within safe limits. This ensures that the charging process does not cause power overload or tripping, which could result in power outages.

Security and Safe

IP65, no ingress of dust and protected against any direction jets of water(rain/snow/sleet).
IK08, protected against 5 joules of impact, equivalent to the impact of a 3.75 lb (1.7 kg) mass dropped from 11.8" (300 mm) above the impacted surface.
Multiple Protection: Relay-sticking protection(Unique innovation, relay arc protection mechanism), Ground Fault Detection(CCID20), RCD (TypeA+DC6mA), SPD(Surge Protection), OCP(Over current protection), OVP/UVP(Over/Under voltage protection), OTP(Over temperature protection), Control Pilot Fault Protection.
