The Protective Functions of EV Chargers: Essential Safety Features
When it comes to electric vehicle (EV) charging, safety isn't just a nice-to-have—it's essential. EV charging involves high voltages and currents, which can pose serious risks if not properly managed. In this article, we'll explore the key protective functions of EV chargers and why these safety features are so important.
Importance of Safety Features in EV Chargers
The protective functions of EV chargers help prevent electrical hazards that could damage vehicles, the chargers themselves, or even the electrical systems they're connected to. They also play a crucial role in protecting users from potential harm. Here's a look at the essential safety features:
Emergency Stop (E-Stop)
Under Voltage Protection (UVP)
Over Voltage Protection (OVP)
Over Current Protection (OCP)
Over Temperature Protection (OTP)
Ground Fault Protection
Control Pilot (CP) Signal
Energy Meter Fault Protection
Leakage Current Protection
Relay Fault Protection
Let's dive into each of these features to understand their function and how they work.
Essential Safety Features Explained
Emergency Stop Button (E-Stop)
Function: The emergency stop button allows the charger to cease operation immediately in any situation, preventing injuries or further damage.
How It Works: The main circuit control loop must connect to the emergency stop switch. When pressed, the MCU (microcontroller unit) detects the signal and stops the charger's operation. This function is vital for immediate response to emergencies.

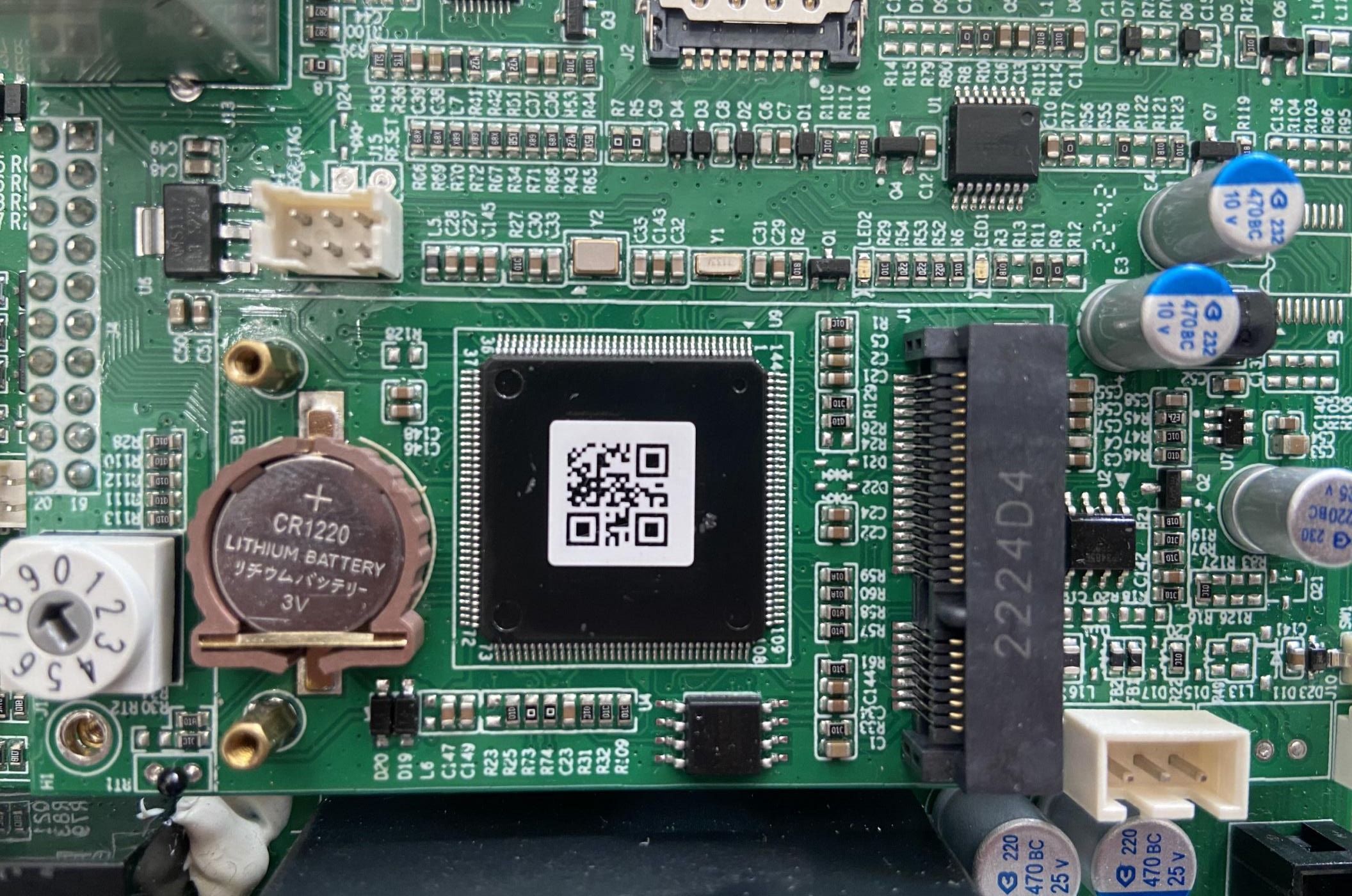

MCU (microcontroller unit)
Under Voltage Protection (UVP)
Function: UVP kicks in when the input voltage drops too low, putting the charger in a protective state to avoid malfunction or damage to connected loads.
How It Works: The line voltage is divided through a resistor network, feeding into a voltage transformer. This information is sent to the MCU, which checks if the voltage is within acceptable limits. If it isn't, a fault is reported.
Over Voltage Protection (OVP)
Function: Similar to UVP, OVP protects the system by shutting down if the input voltage exceeds safe levels.
How It Works: Like UVP, it uses a resistor divider and a voltage transformer. The MCU continuously monitors the voltage, shutting down the system if it detects an unsafe condition.
Over Current Protection (OCP)
Function: OCP disconnects the circuit when the current exceeds a predetermined limit, preventing damage from excessive current flow.
How It Works: Current is monitored through a current transformer that sends real-time data to the MCU. If the current surpasses a threshold (e.g., 10% over the rated limit), the MCU commands the relay to disconnect.
Over Temperature Protection (OTP)
Function: OTP safeguards the charger from overheating by cutting off power if internal temperatures rise beyond safe levels.
How It Works: Temperature sensors monitor the internal heat. When temperatures exceed the set limit (e.g., 85°C), the MCU initiates a shutdown to protect the unit from thermal damage.
Ground Fault Protection
Function: Ground fault protection prevents shock hazards by diverting current to the ground in the event of a leak.
How It Works: If the current is imbalanced between the live and neutral wires, it indicates a fault. The MCU detects this and disconnects power, reducing the risk of electric shock.
Control Pilot (CP) Signal
Function: The CP signal acts as a handshake between the EV and the charger, indicating connection status and controlling the charging current.
How It Works: It uses PWM (Pulse Width Modulation) to communicate. Different voltage levels represent various states, such as standby (9V) or charging (6V). If the signal is interrupted, the MCU will shut down the charger to prevent issues.
Energy Meter Fault Protection
Function: This monitors the performance of the energy meter, ensuring accurate readings and proper operation.
How It Works: The energy meter uses magnetic fields to measure current and voltage. If there's a fault, it can misreport readings, prompting the MCU to issue a fault alert.
Leakage Current Protection
Function: This feature identifies and reacts to leakage currents, which can cause electrical shocks or fires.
How It Works: By monitoring the balance of current between the live and neutral wires, any imbalance triggers a fault signal to the MCU, leading to an immediate shutdown.
Relay Fault Protection
Function: Relays control the power supply to the charger and are critical for safe operation.
How It Works: If the relay fails, the MCU will detect the fault and disconnect power to prevent potential hazards.
Why Safety Features Matter
The significance of these safety features cannot be overstated. Each protective function serves as a critical line of defense against possible electrical hazards that could lead to serious accidents or costly equipment damage. Not only do these safety measures protect the equipment and the vehicle, but they also enhance user confidence in using EV chargers.
At ULandPower, we take safety seriously, integrating advanced protective features into our products. Notably, our unique relay arc protection mechanism can gradually reduce current when an arc fault is detected, minimizing contact hazards and ensuring the safety of both electrical equipment and operators. This attention to safety sets us apart in the EV charging market.
