Wireless EV Charging: Here's What It Is and How It Works

The electric vehicle market is expanding rapidly, but so are the challenges, especially when it comes to charging. During peak times, finding a charging station can feel like a real struggle. This often impacts the overall driving experience. Imagine if you could charge your EV without the hassle of plugging in, just park, and it starts charging automatically. That's where wireless charging comes in, and it could be a game-changer.

Tesla's recent announcement about their Robotaxi service has turned some heads. Their self-driving electric taxi, the Cybercab, will rely solely on wireless charging, no charging port needed! It's set to hit the market in 2026, and this could revolutionize how we think about EV charging. Today, let's dive into what wireless ev charging is all about, how it works, and what the future might hold for this exciting technology.

Wireless EV charging is pretty straightforward: as long as you park your car properly, it can charge up without any fuss. Just like your phone uses wireless charging, EVs can do the same!

This technology is perfect for both residential and commercial charging stations, providing power levels that range from 3.3 kW to over 20 kW. Plus, it's designed to support advanced communication protocols like ISO/IEC 15118. This means you can enjoy features like Plug and Charge, making the whole process seamless and hassle-free. No more wrestling with cords, just park and go!

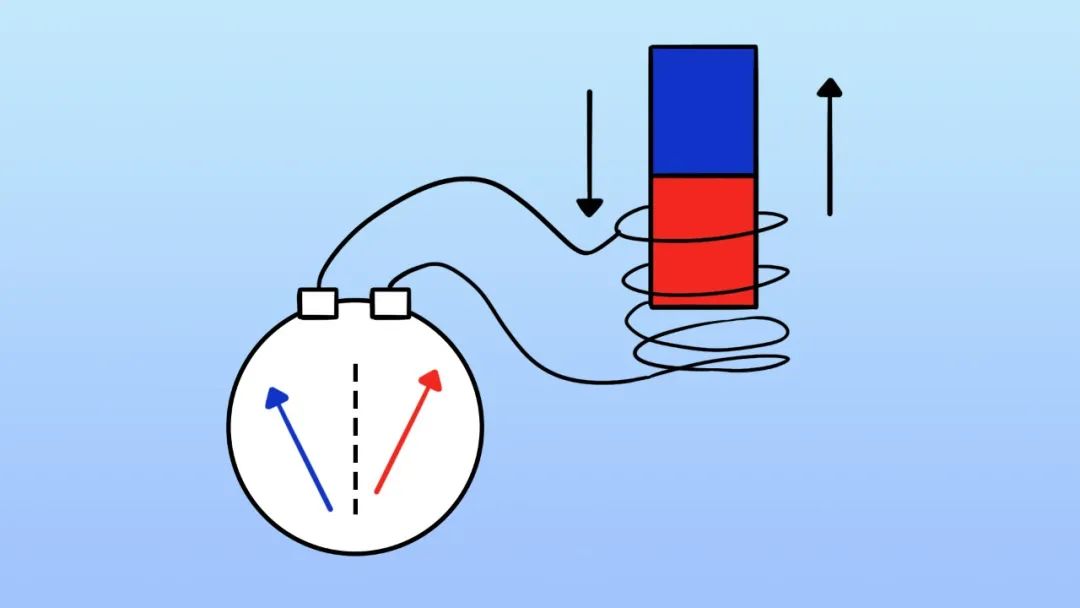

Wireless charging relies on the principle of electromagnetic induction. When a magnetic field source, like a magnet, is brought close to a coil of wire without current, it induces an electric current in the coil. This induced current can then be transformed into electrical energy and directed into the battery, completing the wireless charging process.

In the automotive context, this involves placing a primary charging coil in a parking space. When a vehicle equipped with a receiving coil parks in that spot, it picks up energy through a resonant magnetic field, allowing for efficient power transfer.

Inductive charging utilizes electromagnetic fields to transfer energy between a ground-based charging pad and a receiver pad in the vehicle. The system generates an oscillating magnetic field in the ground coil, which induces a current in the vehicle’s receiver coil.

Convenience: Wireless charging offers incredible convenience. Simply park your vehicle over a charging pad, and it automatically starts charging, no more fumbling with cables! This is especially helpful for those with mobility issues who might struggle with traditional charging stations. It removes the hassle of plugging in, making it easier for everyone, including families with teens who may forget to charge their cars.

Accessibility: For people with physical disabilities, wireless charging provides much-needed convenience. Traditional charging stations often present challenges, like navigating obstacles to plug in. Wireless charging eliminates these barriers, making it easier for everyone to charge their vehicles without additional hurdles.

Safety and Reliability: Wireless charging systems have no moving parts, reducing risks associated with wear and tear. There's no risk of tripping over cables or accidentally unplugging a charger. This reliability is particularly beneficial for fleet operations, where damaged cables and unplugged chargers can be common issues.

Backup Power Supply: Looking to the future, many electric vehicles can help balance the grid. If they can charge wirelessly, they can also provide backup power to homes more efficiently. This capability would enhance energy resilience during outages or peak demand periods.

Durability: Wireless charging reduces concerns about cable damage or tampering. With public chargers, users often don't treat cables with the same care they would at home, leading to wear and tear. Wireless systems minimize these risks, ensuring more reliable and long-lasting charging solutions.

When it comes to wireless charging, a common concern is efficiency loss. Some might wonder if it takes longer to charge compared to traditional methods. However, that's not necessarily the case. For instance, an 11 kW wireless charging system can achieve around 93% efficiency, which is quite impressive.

To put that in perspective, standard plug-in chargers typically have an efficiency range of about 90% to 95%. It's important to note that no charging method is 100% effective; some energy is always lost as heat, just like with any electrical device. So, a 93% efficiency rating for wireless charging is really solid.

Despite its benefits, wireless charging has some notable limitations:

Environmental Adaptability: The technology must handle various environmental factors, such as distance and weight, while maintaining efficiency, which can be quite challenging.

Dynamic Charging Complications: Implementing dynamic wireless charging requires addressing longer transmission distances and ensuring that electromagnetic fields remain safe for drivers. The costs can also escalate, especially during adverse weather conditions.

Efficiency Issues: Generally, wireless charging is less efficient than traditional wired options, leading to energy losses that can extend charging times and increase electricity expenses.

High Initial Investment: The setup and infrastructure for wireless charging often involve higher costs compared to conventional charging systems, resulting in a steeper upfront financial commitment.

Limited Access: The availability of wireless charging stations is currently limited compared to traditional ones, making it harder for many EV owners to find convenient charging options.

Slower Charge Rates: Wireless systems typically provide slower charging speeds than direct current fast chargers, which can be inconvenient for those needing rapid recharges.

In an ideal scenario, wireless charging is expected to evolve through three key phases:

The goal is to eliminate the "charging station scramble" and the hassle of cables. With instant charging, simply parking your vehicle over a charging pad will allow it to receive magnetic energy and charge its battery. This process relies on magnetic coupling resonant wireless power transfer technology, which provides high-frequency alternating current to the coil. This energy is then transformed and used to power various loads.

Moreover, combining instant charging with autonomous driving technology offers a revolutionary experience for vehicle owners. Imagine a self-driving car that, based on your driving habits, can autonomously navigate to a wireless charging station and return fully charged, all while freeing your hands.

What if you could charge your vehicle while on the move? This is the essence of dynamic wireless charging technology, where the entire roadway is equipped with wireless charging capabilities. As the vehicle drives along, it continuously receives power through an underground charging rail that emits high-frequency magnetic fields. This allows the vehicle's onboard storage to be replenished while it’s in motion.

Phase Three: Bidirectional Wireless Charging

With the widespread adoption of dynamic wireless charging, electric vehicles can not only charge themselves while driving but also utilize excess battery power to supply energy to other devices or the grid.

Imagine your electric vehicle acting as a mobile charging station, providing convenience in everyday life. For instance, during a spontaneous road trip, your car could keep itself and accompanying devices powered up, allowing you to capture every moment without worrying about running out of battery. This would enhance the overall travel experience and ensure you never miss out on capturing the beauty of the journey.

Wireless EV charging offers a compelling advantage over traditional electric vehicle charging solutions through its high level of automation and intelligence, greatly enhancing user experience. This technology is particularly well-suited for scenarios involving autonomous driving and driverless parking systems. However, the high costs associated with wireless charging equipment present challenges for widespread replacement of home AC chargers in the short term. That said, its ability to reduce operational costs in Robotaxi applications positions it for initial commercial deployment. As intelligent applications expand and supply chains mature, cost reductions for wireless charging devices may pave the way for their entry into the home charging market.

Despite its potential, wireless EV charging faces significant hurdles before becoming a household standard. It requires advanced safety features such as foreign object detection, live object detection, and precise alignment guidance to operate effectively, which adds to both cost and complexity. Tesla's inductive charging technology exemplifies these challenges, as it eliminates the need for physical charging stations but is still limited to fixed locations. True convenience will only be realized when vehicles can charge in various settings, including while in motion, a goal that remains under development.

Looking ahead, the prospects for wireless charging are encouraging. Markets and Markets projects a compound annual growth rate (CAGR) of 46.8%, forecasting growth from a market size of $16 million in 2020 to $234 million by 2027. Numerous countries are also crafting supportive policies, indicating a robust momentum toward future implementation.

The wireless charging market is gaining visibility and contributing to the creation of greener urban environments. This technology is transforming how we charge electric vehicles, representing a forward-looking approach on the path to zero carbon emissions. If the physical limitations and usage challenges can be overcome, widespread adoption of wireless charging could be just around the corner. Imagine a future where your vehicle seamlessly connects to a charging network, making charging as effortless as parking.
