UR3J
Powerful 48A Compact Smart EV Charger

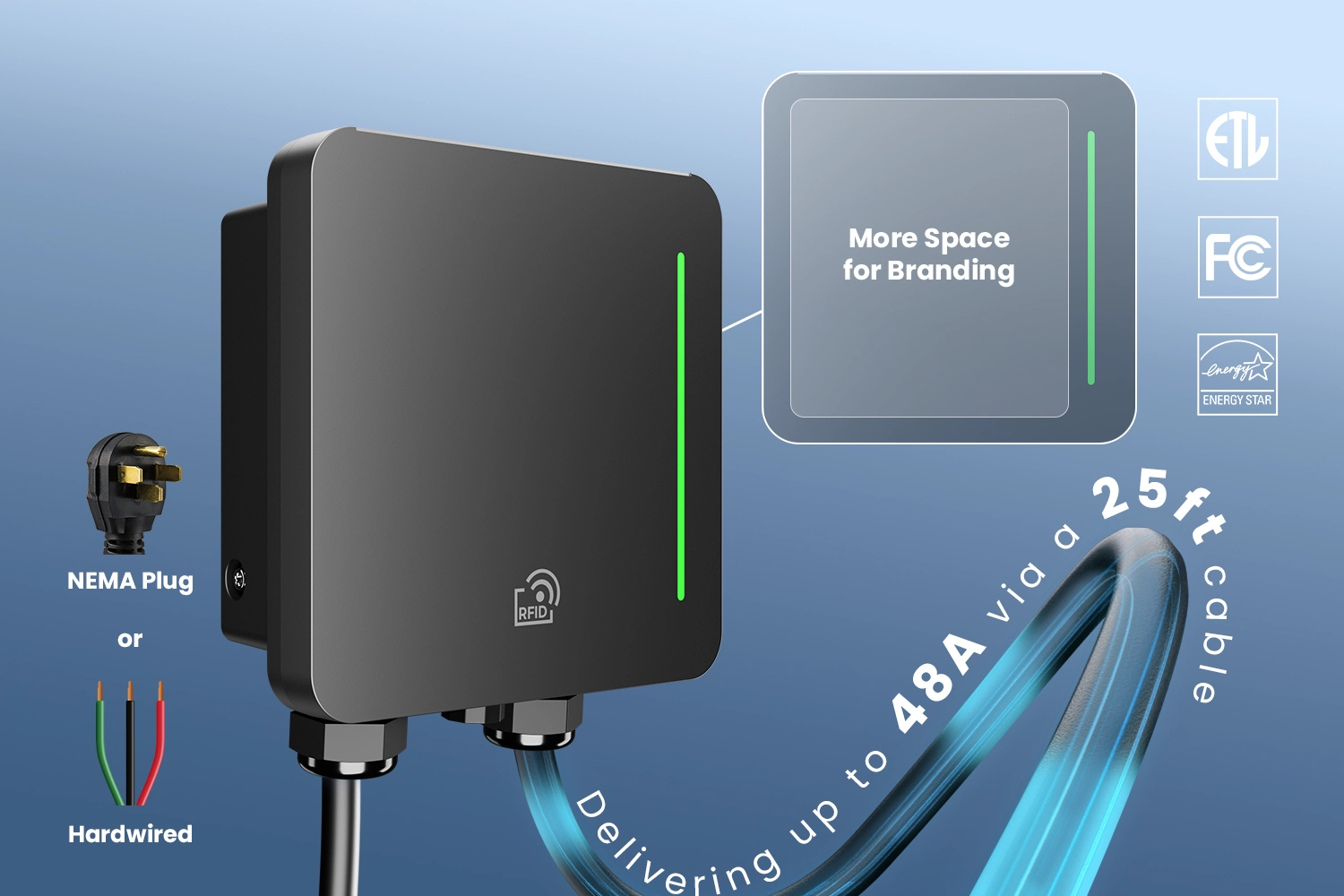

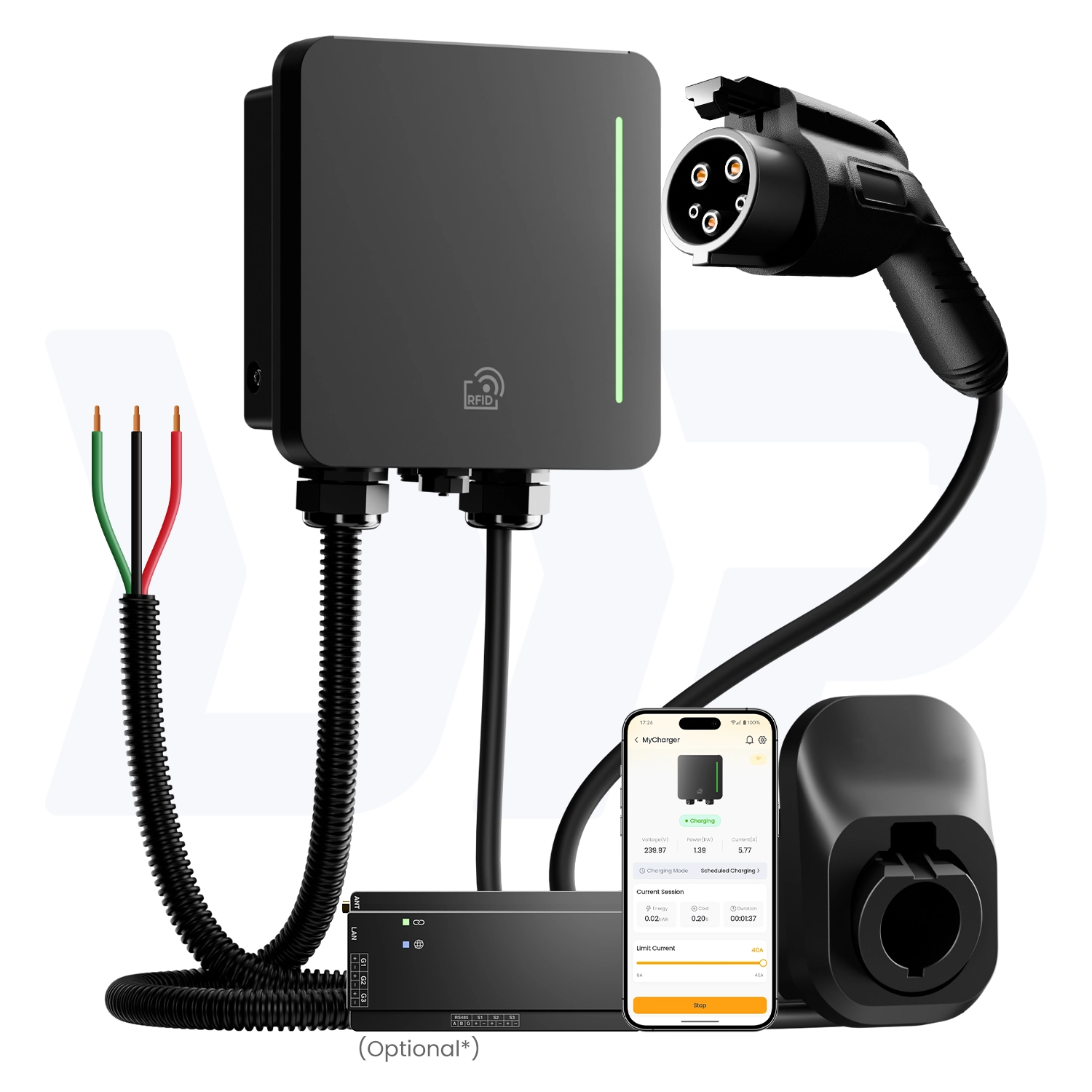

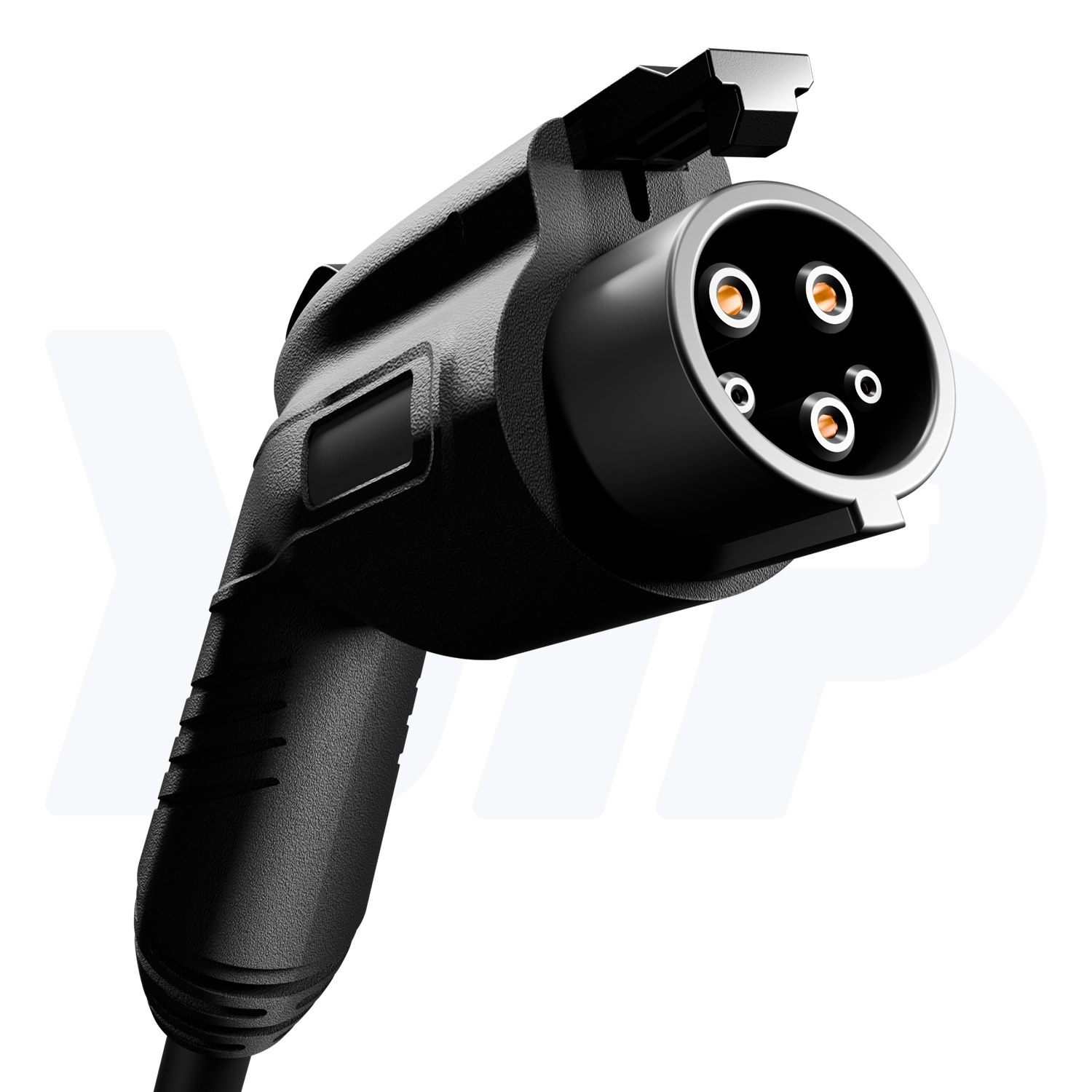

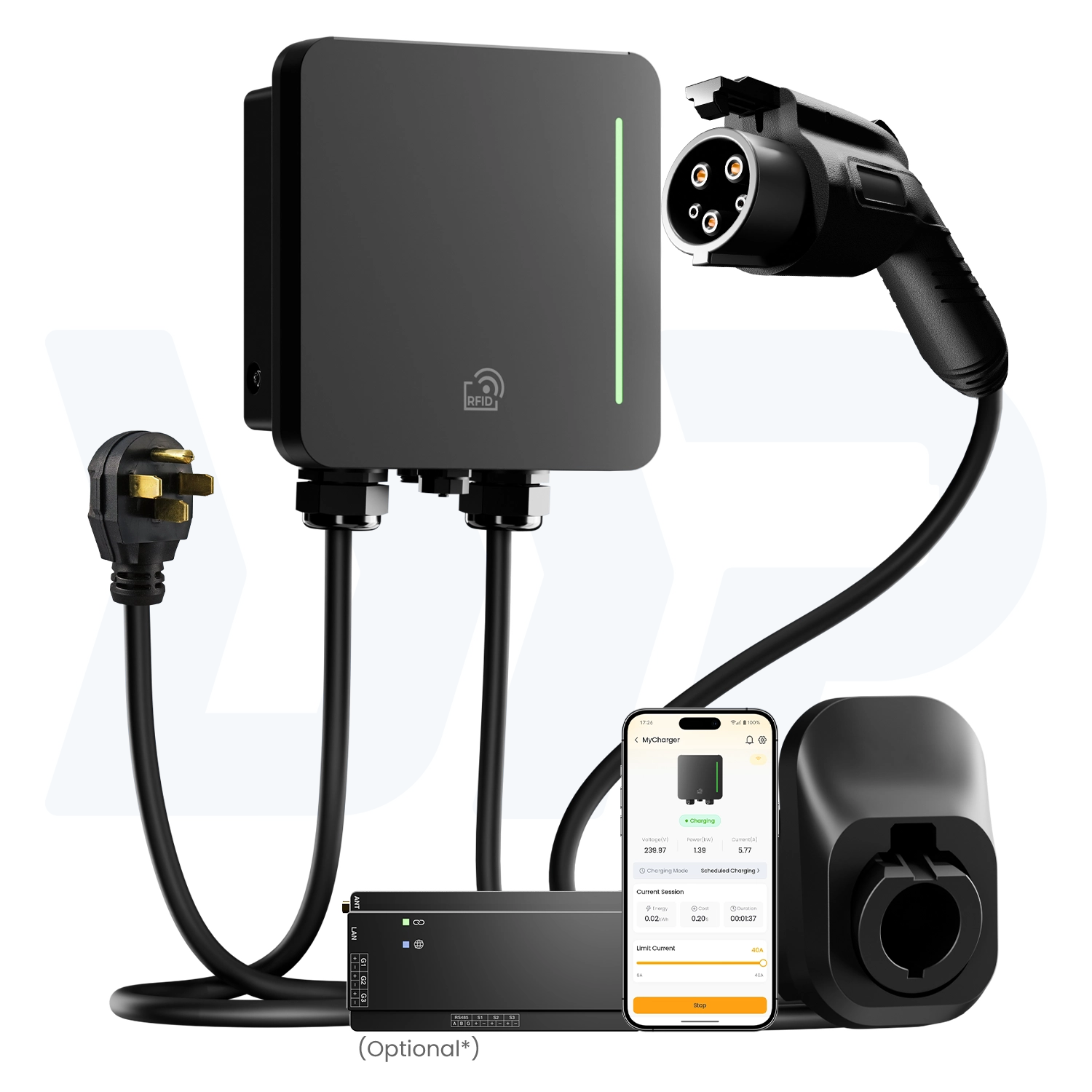

UR3J features a compact, minimalist design with a branding-ready front cover for flexible logo, color, and finish customization. Choose hardwired or NEMA 14-50 plug-in configurations for different residential setups. Its UL-listed, flame-resistant SAE J1772 connector ensures reliable everyday use. ETL, FCC, and ENERGY STAR certified.
One Platform, Two Connectors

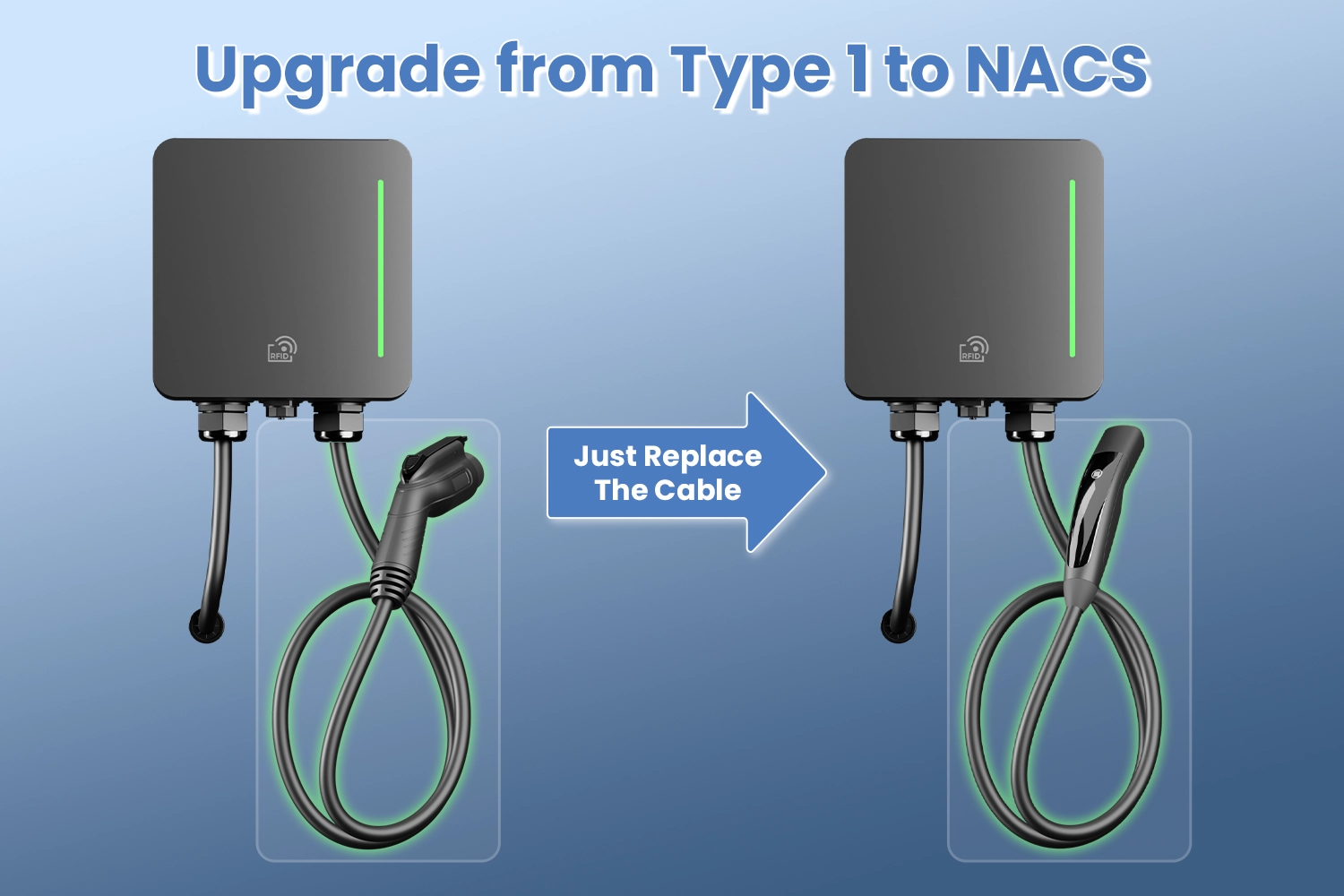

UR3J supports the existing J1772 market while enabling an easy upgrade to NACS (SAE J3400). Simply replace the charging cable, no charger replacement required, giving you greater flexibility to adapt inventory and product offerings as market demand shifts.

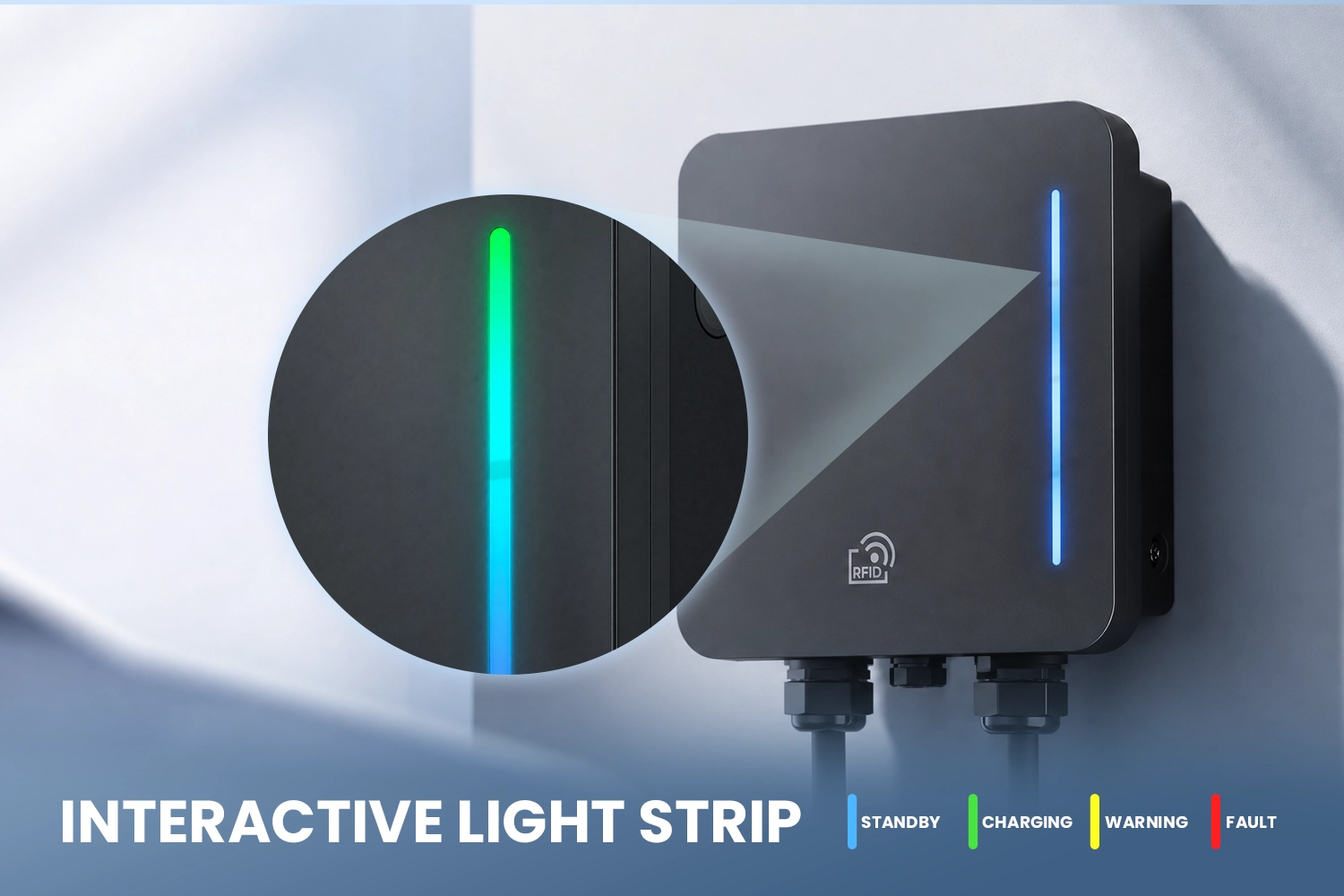

Intuitive Status Feedback for Everyday Charging
UR3J uses progressive lighting, color, and motion to make different charging states easy to recognize. From connection and charging to completion, network setup, and faults, each light pattern provides a clear visual cue.
Upgrade to Energy-Aware Charging — Optional EnerSync

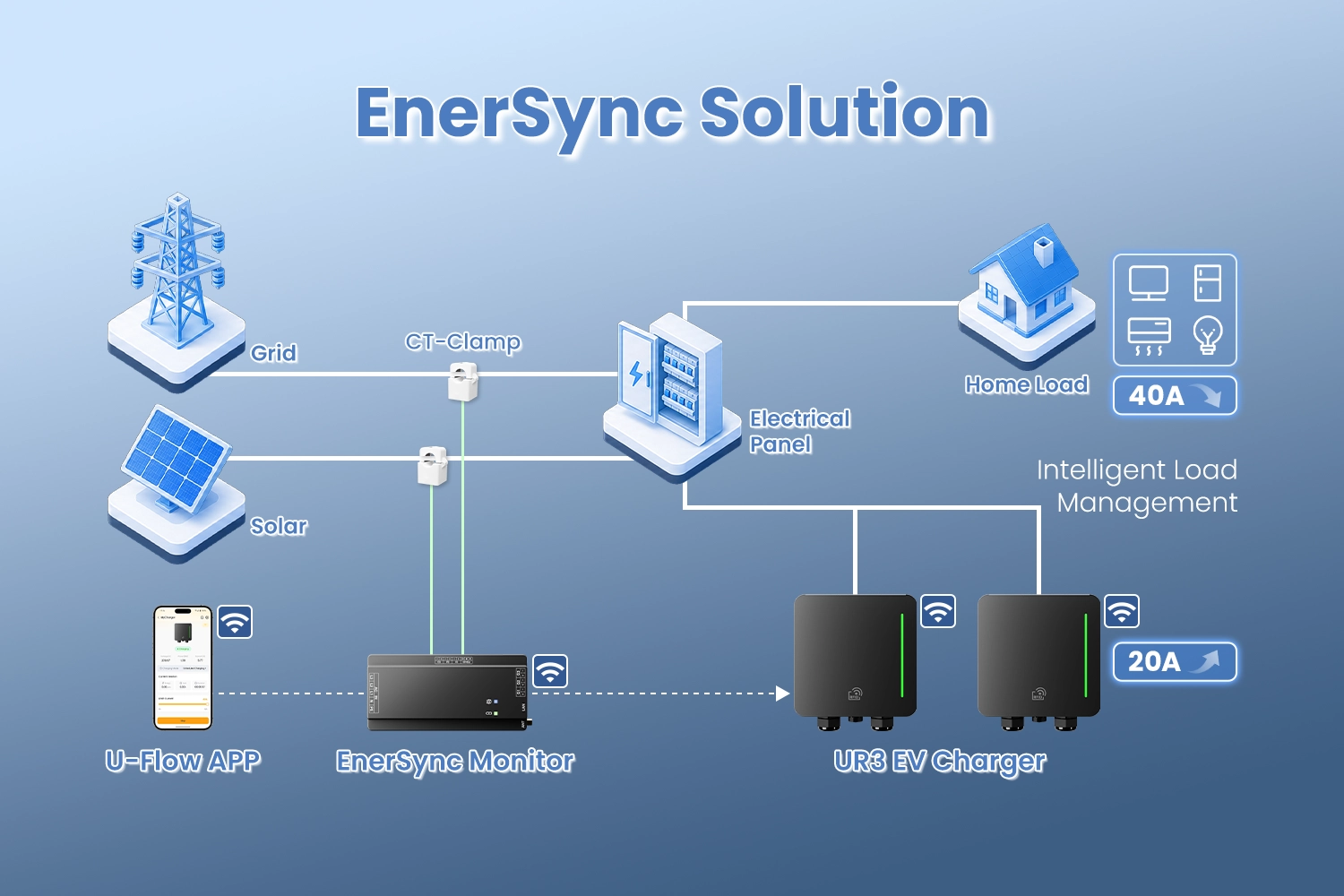

The optional EnerSync Power Monitor adds an awareness of the rest of the house: it reads the main panel in real time and trims charging current when demand climbs, so a 48A charger can live on a service that could not otherwise support one. Solar-priority charging and power sharing between multiple chargers run from the same device, and the logic stays local, an internet outage does not stop it.
A Connected Experience from Charging to Support

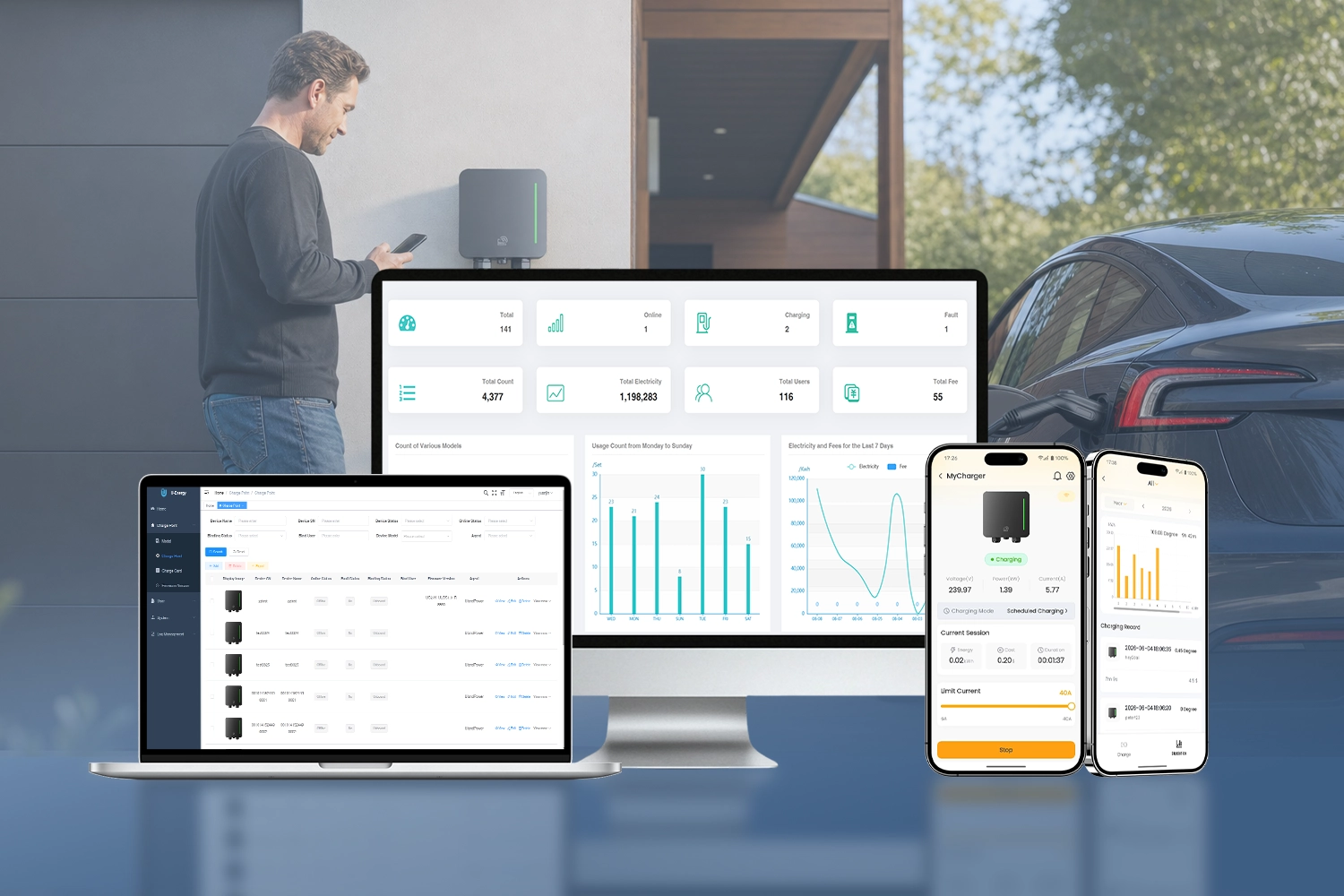

U-Flow APP makes everyday charging simple with remote control, scheduling, real-time session insights, and shared access. U-Energy management platform provides centralized control of deployed chargers, with remote monitoring, diagnostics, and OTA updates to support efficient operations and after-sales service across markets.
Launch Your J1772 Charging Brand
Bring your North American home charging product to market faster with UR3J, a flexible J1772 platform backed by ULandPower’s engineering, manufacturing, and quality capabilities. Customize the enclosure, configuration, firmware, and connected services to fit your brand. With ETL, FCC, and ENERGY STAR certifications, UR3J streamlines the path from development to launch.

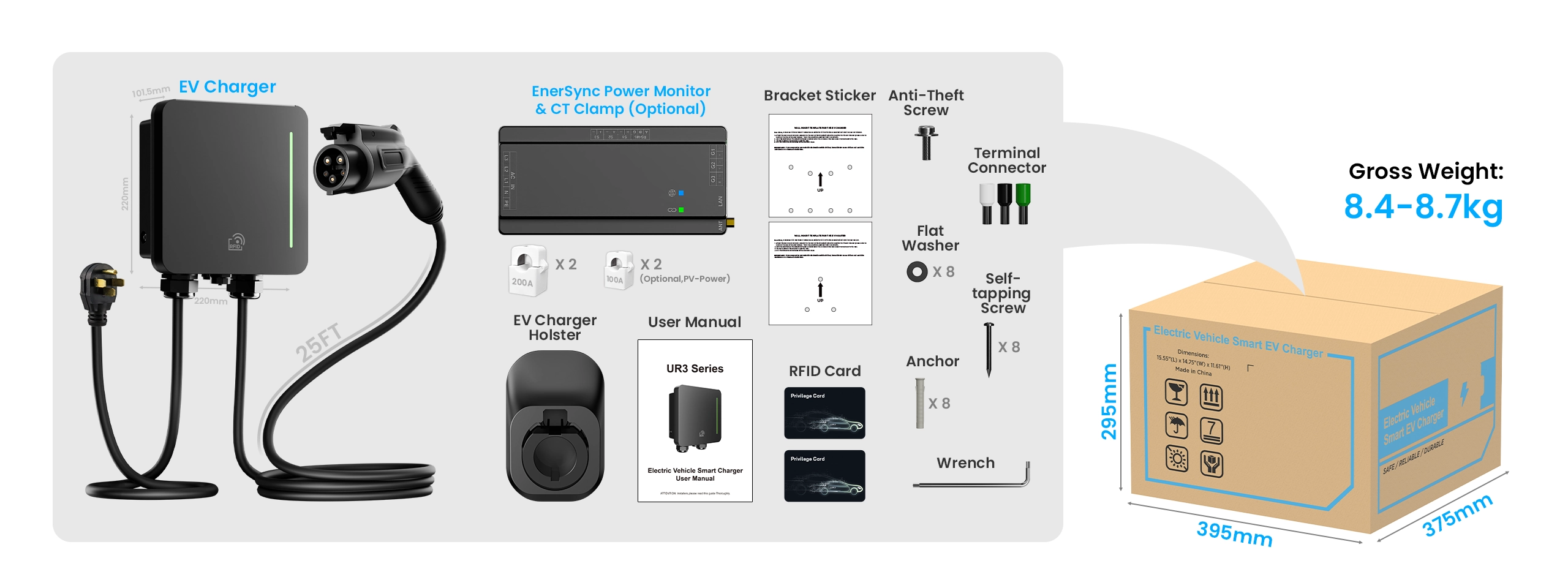

Contact usSize and Packaging
Charging Smarter Starts with Energy Management
EnerSync turns UR3J into a complete home EV charging energy management system—safer, more efficient, and ready for multi-EV households.
See How EnerSync WorksWhat Do You Want To KnowFAQ
Frequently Asked Questions About the UR3J J1772 Home EV Charger
As the North American EV market moves toward NACS, many brands are evaluating how long J1772 products will remain relevant. These FAQs address the key questions around J1772 compatibility, NACS transition, cable replacement, configuration options, and OEM requirements.
-
+ -
Is SAE J1772 still worth building a product around?
Yes, for the installed base. Most EVs currently in use across North America charge over SAE J1772, and that fleet will stay on the road for years. New models are moving to NACS (SAE J3400), which is why UR3J and the NACS UR3N are the same charger with a different cable: you can serve today's fleet and follow the market without a second development program.
-
+ -
How do I move UR3J from J1772 to NACS?
By changing the cable, on the wall. The cable is a replaceable assembly — unplug the J1772 cable, plug in the NACS cable. The unit does not go back to the factory, no re-certification is required because the approvals cover both cable types, and the warranty is unaffected.
-
+ -
Can Tesla and other NACS vehicles charge from UR3J?
Yes. Tesla and other NACS-equipped vehicles can charge with ULandPower’s ETL-certified J1772-to-NACS adapter, designed to meet UL 2252 requirements. This solution extends UR3J compatibility to newer NACS-equipped EVs while maintaining support for the established J1772 market.
-
+ -
Do I need to order the EnerSync Power Monitor with every UR3J unit?
+ -What can be customized through the UR3J OEM/ODM program?
UR3J can be customized across product design, charging configuration, connector options, firmware features, branding, app and cloud integration, packaging, and documentation. ULandPower supports the full development process from engineering validation to manufacturing, helping brands create a charging solution tailored to their market requirements.
| Model No. | UR3J-A40 | UR3N-A48 | |||
| CHARGING INTERFACE | Vehicle Connector | SAE J1772 (Type 1) | |||
| Charging Cable Length | 25 ft (7.6 m) | ||||
| ELECTRICAL SPECIFICATIONS | Input Connection | NEMA 14-50P; hardwired option available | Hardwired * 1m | ||
| Rated Input Voltage | 208/240 V AC, 50/60 Hz | ||||
| Maximum Output Power | 9.6 kW at 240 V; 8.3 kW at 208 V | 11.5 kW at 240 V; 10.0 kW at 208 V | |||
| Energy Metering Accuracy | ±1% | ||||
| Mounting Options | Wall mount; optional pedestal | ||||
| USER INTERACTION | LED Status Indicator | POWER/CHARGING/CONNECTED/FAULT status indication | |||
| Reset button | Reset or restore factory settings | ||||
| RFID | ISO/IEC 14443 Type A/B | ||||
| Remote Control | U-FLOW app | ||||
| COMMUNICATION | Wireless Connectivity | 2.4 GHz Wi-Fi (IEEE 802.11 b/g/n);Bluetooth 5.1 | |||
| RS-485 | Optional* | ||||
| LAN | Optional* | ||||
| ENERGY MANAGEMENT | HEMS | Optional* Works with the EnerSync Monitor to deliver home load management, solar (PV) charging management, and multi-charger power sharing. |
|||
| SAFETY AND COMPLIANCE | Ground Fault Detection | CCID 20 | |||
| Surge Protection | 6 kV / 3 kA | ||||
| Protection Features | UVP, OVP, OCP, OTP, Control Pilot Fault Protection, Relay-sticking protection, Ground Fault Protection |
||||
| Safety Compliance | UL 2594 / CSA C22.2 No. 280-16,UL 2231-1 / CSA C22.2 No. 281.1-12, UL 2231-2 / CSA C22.2 No. 281.2-12 |
||||
| Certifications and Compliance | ETL/FCC/ENERGY STAR | ||||
| ENVIRONMENTAL SPECIFICATIONS | Operating Temperature | -22°F to 131°F (-30°C to 55°C) | |||
| Operating Humidity | 5%–95% RH, non-condensing | ||||
| Operating Altitude | Up to 6,562 ft (2,000 m), no derating | ||||
| IP/IK Level | IP66/IK08 | ||||
| PHYSICAL SPECIFICATIONS | Net Weight | 14.1 lb (6.4 kg) | 15.0 lb (6.8 kg) | ||
| Shipping Weight | 18.5 lb (8.4 kg) | 19.2 lb (8.7 kg) | |||
| Product Dimensions (W × D × H) |
8.66 × 8.66 × 4.00 in (220 × 220 × 101.5 mm) | ||||
| Package Dimensions (W × D × H) |
15.55 × 14.76 × 11.61 in (395 × 375 × 295 mm) | ||||
