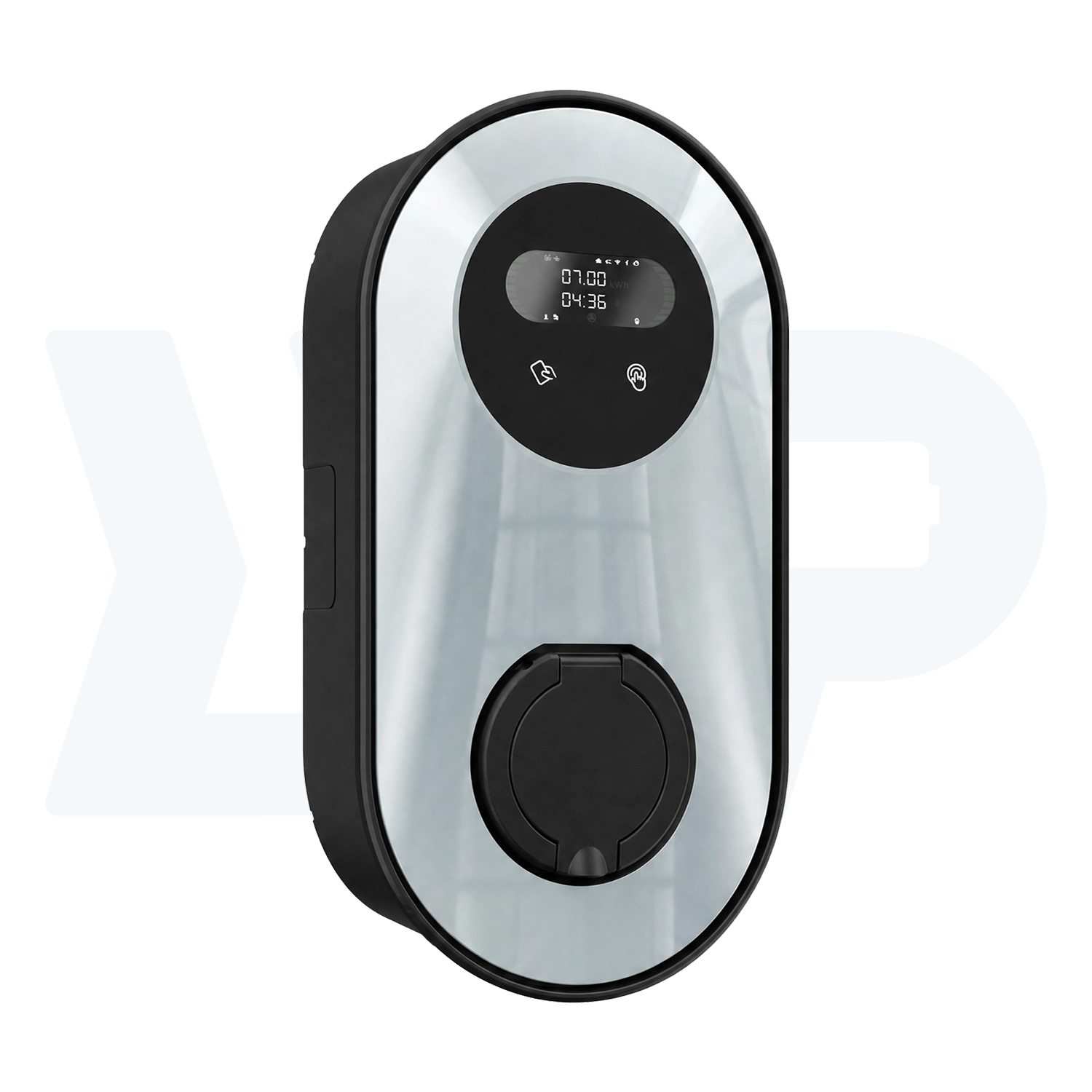

A1 Socket

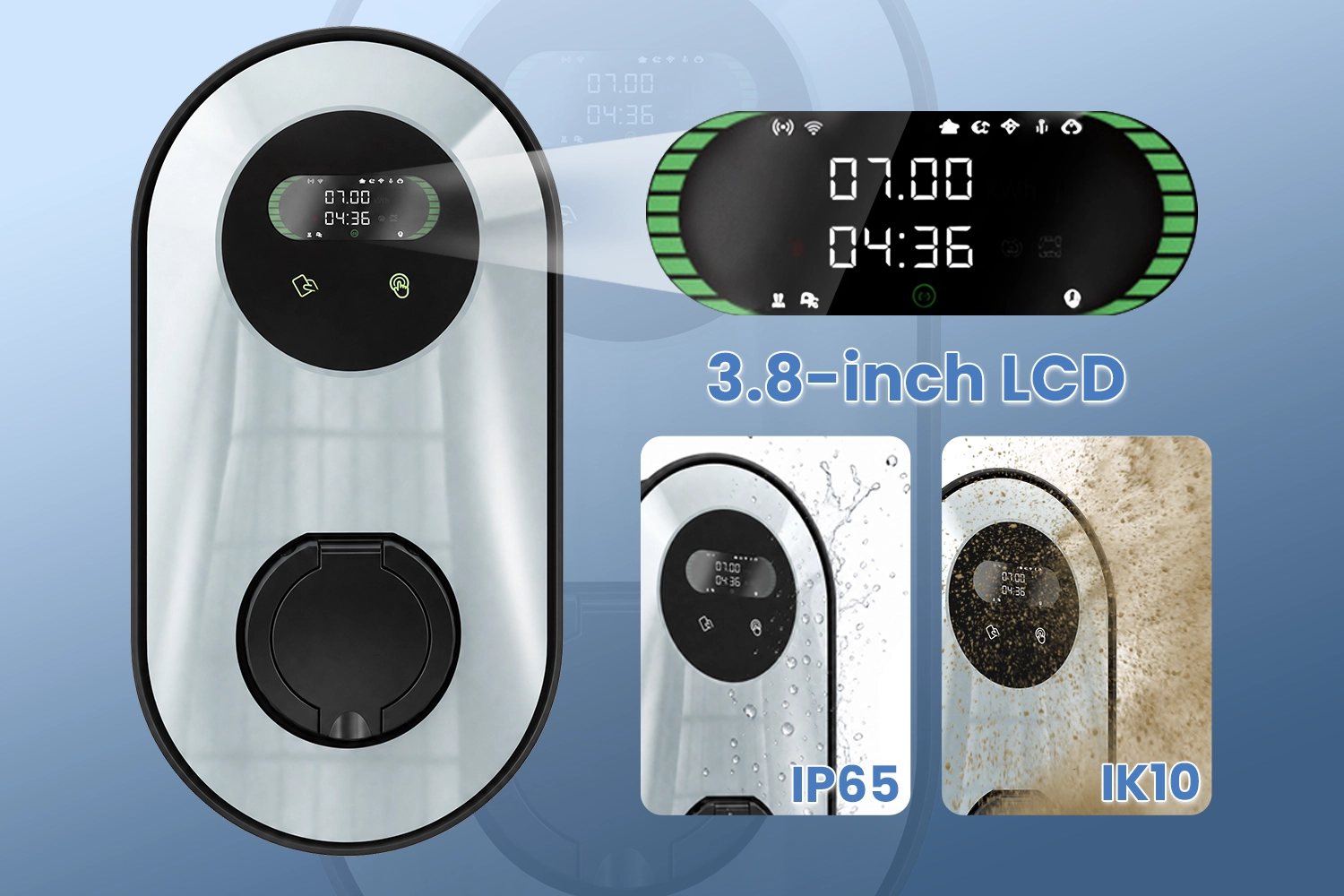

A Modern Design with Clearer Charging Information

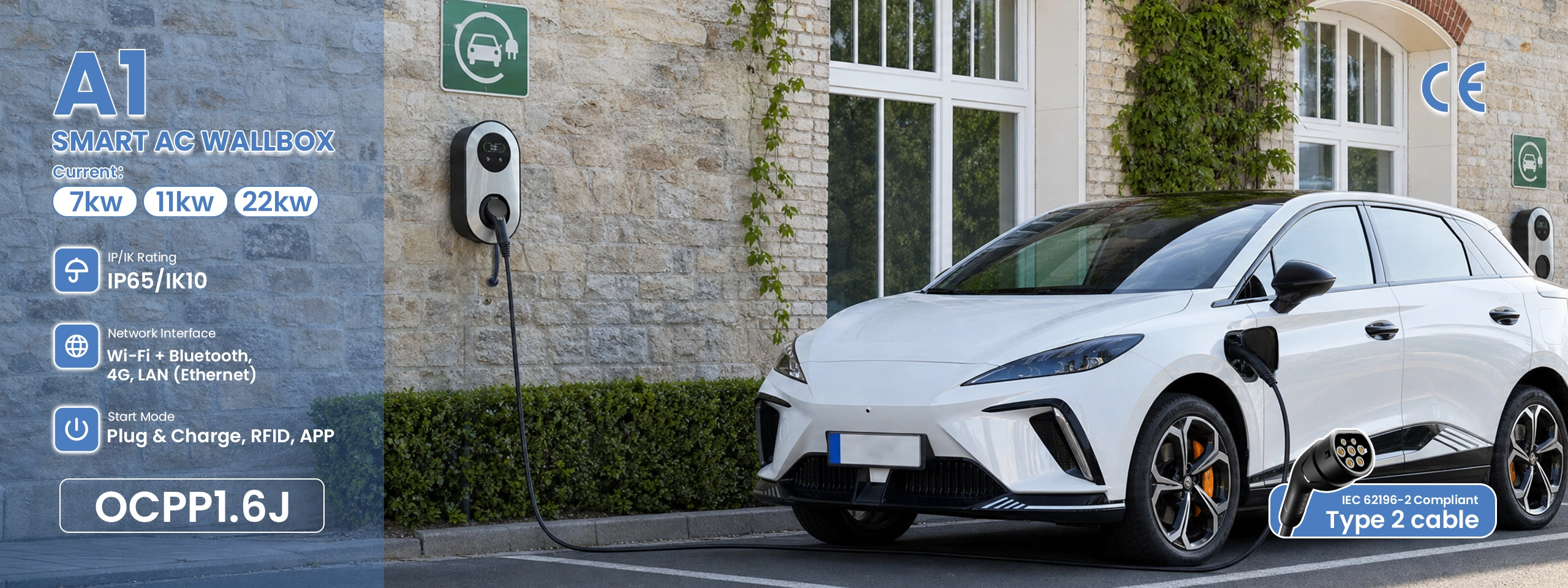

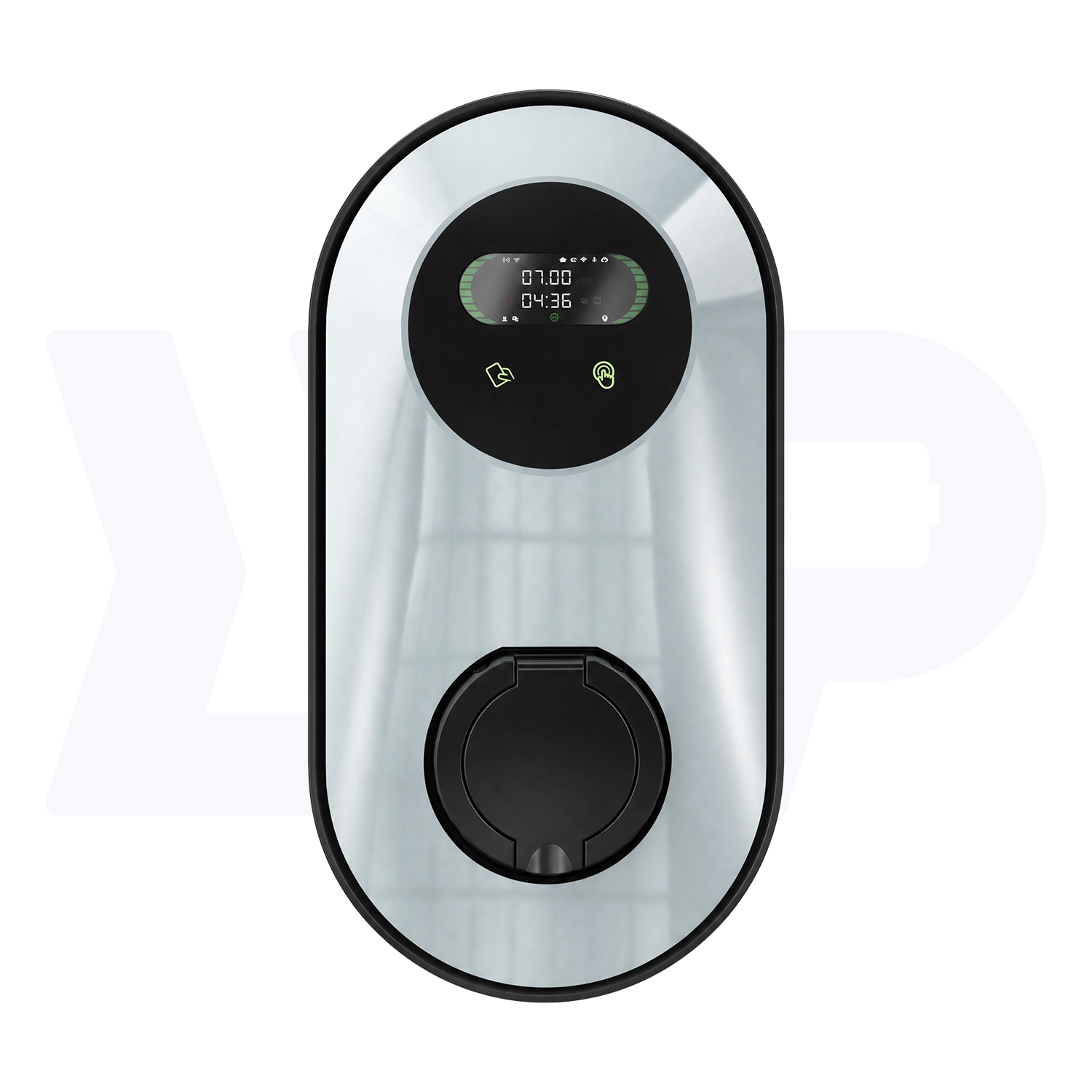

This Type 2 EV charger features a clean, modern exterior and a 3.8-inch LCD screen that provides clear charging information at a glance. Available in 7, 11, and 22 kW configurations, it combines IP65 and IK10 protection for flexible deployment across workplaces, commercial properties, hotels, retail locations, and fleet parking areas.

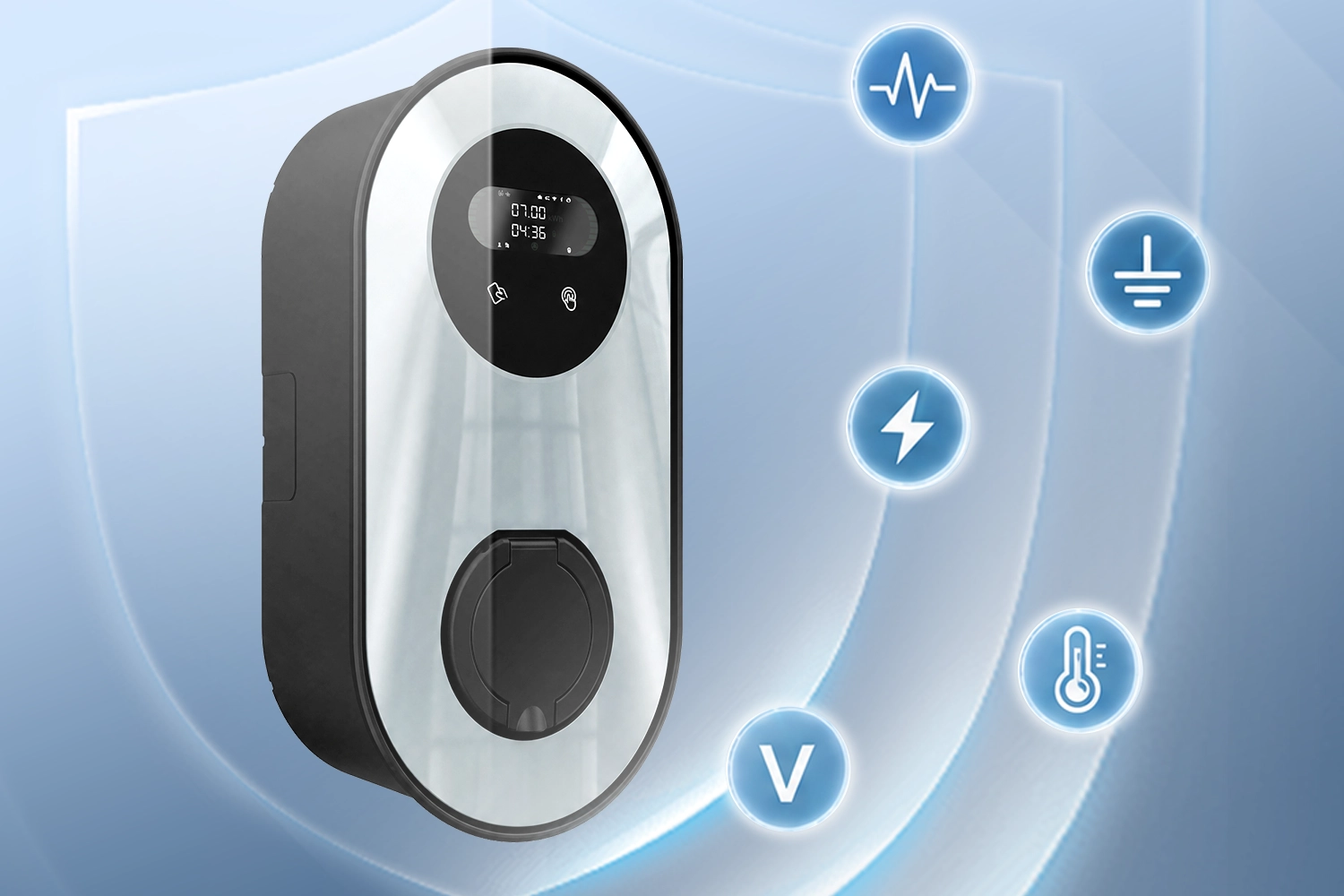

Multiple Layers of Electrical Protection
It combines CE certification with integrated Type A 30 mA and DC 6 mA residual-current protection. Additional protection functions cover over-current, over/under-voltage, over-temperature, leakage, and protective-earth monitoring, helping support safe operation across different commercial charging applications.

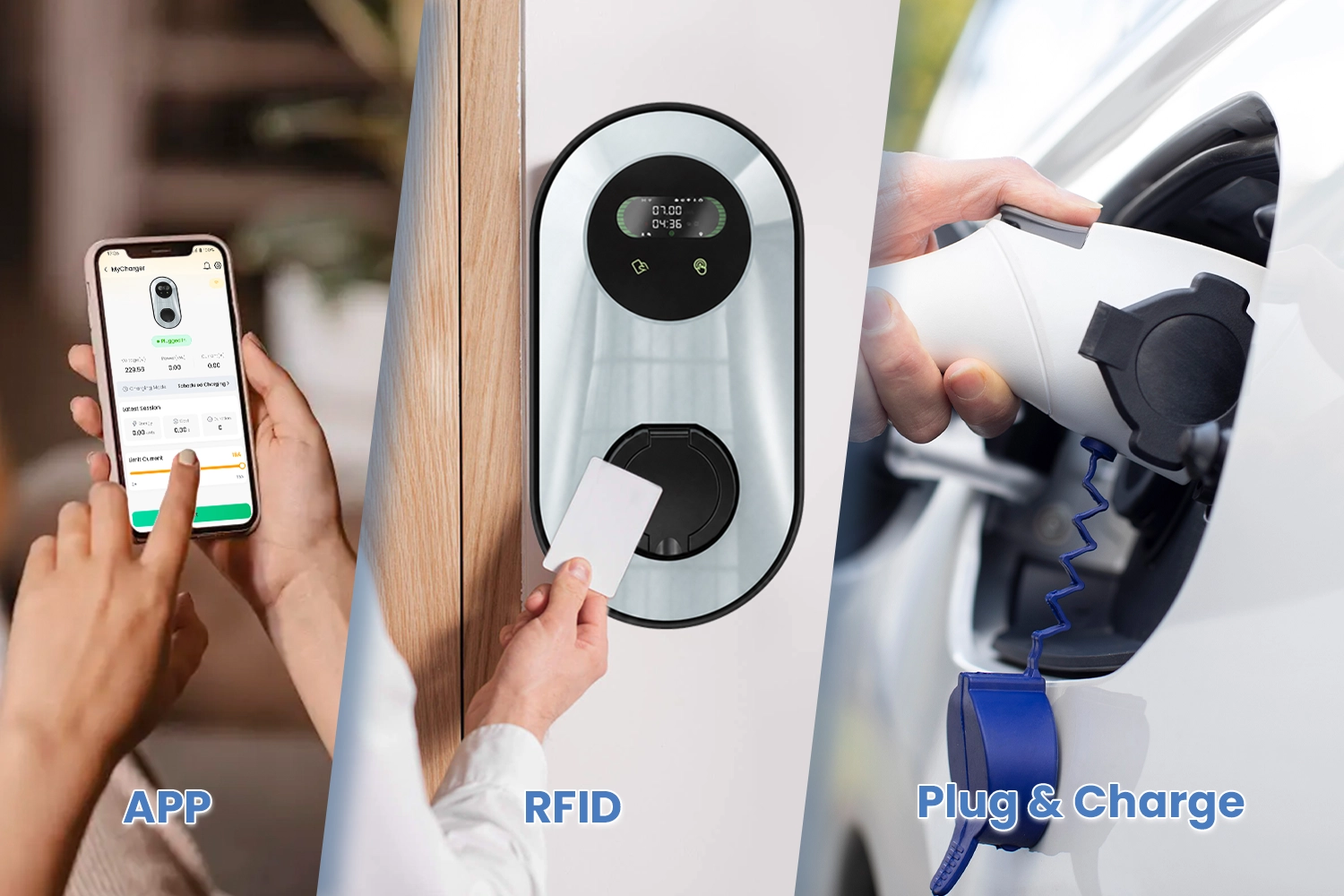

Smart Charging Control, Built for Connected Operations
It supports OCPP 1.6J and OTA management for remote configuration and software updates. App, RFID, and Plug & Charge modes support different access requirements. For sites with limited electrical capacity, an optional CT-HUB-based DLB solution can obtain site-current data from a compatible meter and coordinate charger current over RS485.

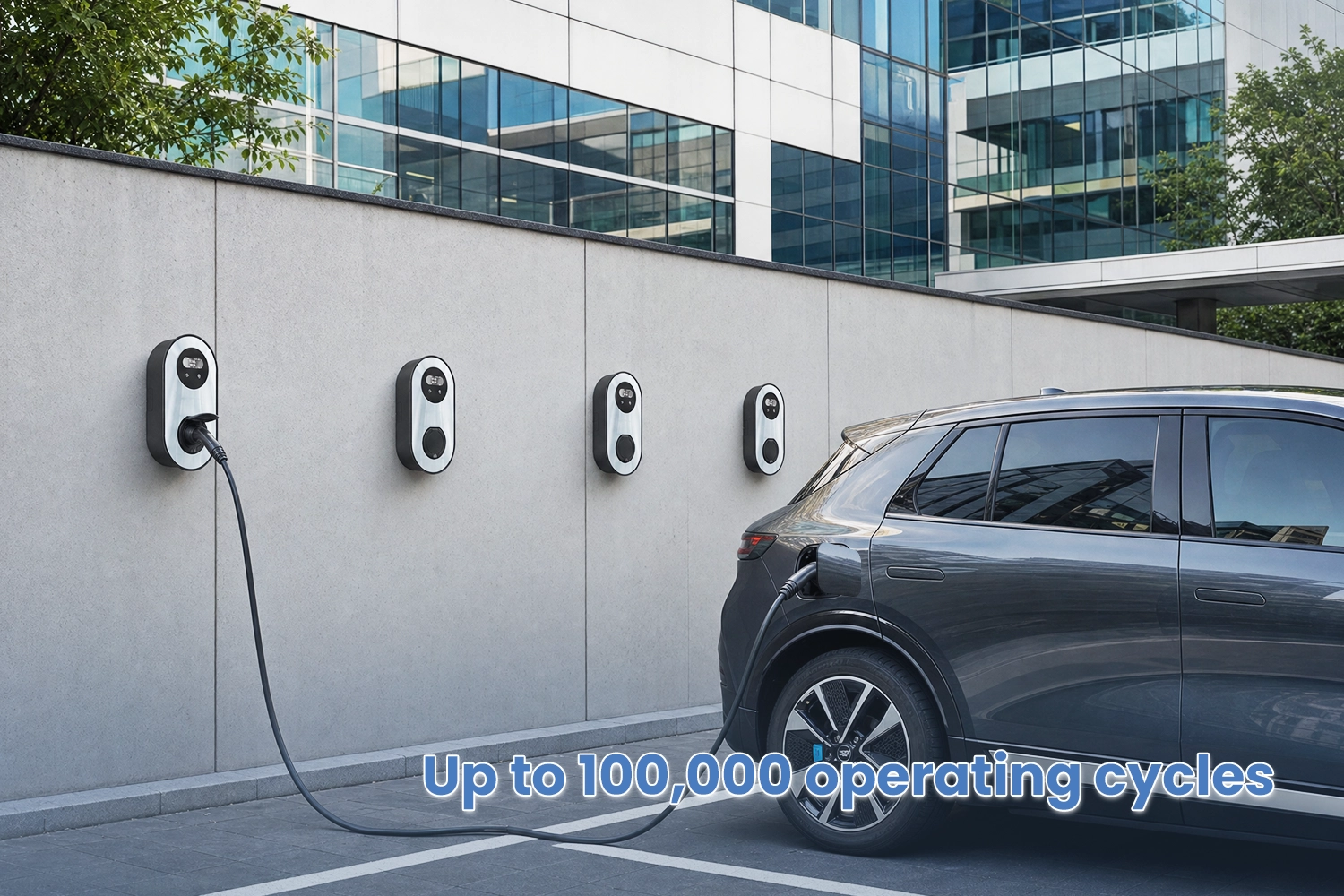

Built for Long-Term Commercial Use
It is designed for demanding commercial charging environments, with a rated service life of up to 100,000 operating cycles. Easy installation and maintenance help simplify deployment and ongoing servicing.
Build Your Commercial Charging Solution
ULandPower works with distributors, charging operators, and solution providers on commercial EV charging projects across different markets and applications. Solutions can be tailored to project needs, including product configuration, front cover color customization, firmware customization, communication protocols, and market-specific certifications.

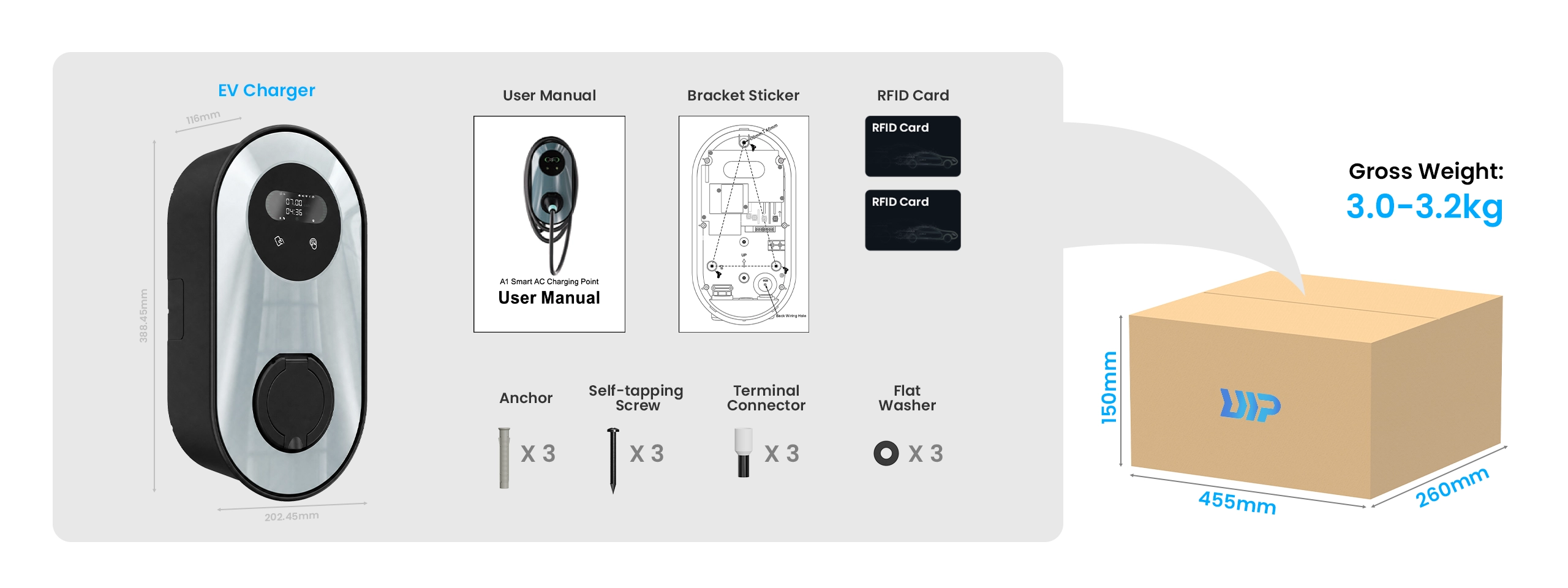

Size and Packaging
What Do You Want To KnowFAQ
Frequently Asked Questions About the Type 2 Socket EV Charger
Our FAQ section is here to help you navigate common questions and concerns. Whether you’re looking for detailed explanations, guidance on using our products, or information about our services, this is the place to find clear, reliable answers.
-
+ -
Which power configuration is suitable for my site?
The charger is available in 7 kW single-phase, 11 kW three-phase, and 22 kW three-phase configurations. Selection should match the site's available electrical capacity, local requirements, vehicle charging capability, and installation design.
-
+ -
How can users access and control charging?
Users can access charging through the mobile app, RFID, or Plug & Charge. The charger also supports connected charging management through compatible systems.
-
+ -
Can the charger connect to a customer's backend platform?
The charger supports OCPP 1.6J. Wi-Fi and Bluetooth are standard, while 4G or Ethernet are optional. Third-party backend compatibility and the required communication configuration should be confirmed for each project.
-
+ -
What should be considered before installation?
+ -How is dynamic load balancing implemented?
DLB is available as an optional site solution using an external CT-HUB connected over RS485 and configured to obtain site-current data from a compatible electricity meter. Meter selection, wiring, charger quantity, and commissioning scope should be confirmed for each project.
|
Specification |
A1 Socket |
|
Product type |
Smart AC wallbox, Type 2 socket version |
|
Rated power |
7.4 kW / 11 kW / 22 kW |
|
AC supply |
1P+N+PE (7.4 kW); 3P+N+PE (11/22 kW) |
|
Rated voltage |
AC 230 V (7.4 kW); AC 400 V (11/22 kW) |
|
Rated frequency |
50/60 Hz |
|
Rated current |
32 A (7.4/22 kW); 16 A (11 kW) |
|
Charging control |
Mobile app, RFID card, Plug-and-Charge |
|
Display |
3.8-inch LCD |
|
Communication |
Wi-Fi + Bluetooth (standard); 4G or LAN (Ethernet) optional |
|
Protocol |
OCPP 1.6J |
|
RCD protection |
Type A 30 mA + DC 6 mA |
|
Enclosure rating |
IP65, IK10 |
|
Operating altitude |
≤ 2,000 m |
|
Ambient humidity |
≤ 95% RH, non-condensing |
|
Vibration |
0.5 G, no severe impact |
|
Installation |
Indoor/outdoor, well-ventilated area |
|
Mounting |
Wall mounted; pole mounting optional |
|
Safety protections |
Over-current, over/under-voltage, over-temperature, leakage, PE ground protection, etc. |
|
Dimensions |
H/W: 388.45 × 202.45 mm; D: 116 mm |
|
Net Weight |
2.4kg |
|
Gros Weight |
3.0-3.2kg |
|
Certification |
CE |
|
Dynamic load balancing |
Optional external CT-HUB + compatible electricity meter over RS485; project-specific design and commissioning |
