Single Commercial AC Chargers

UE1 Type 2 RFID 7kw 11kw 22kw Level 2 EV Charging Station for Business

UE1 Commercial EV Charging Series

Type 2 EV Charger

Take Your Commercial Charging to the Next Level with UE1

Unlock versatile charging options, cutting-edge connectivity, and advanced safety features—engineered to optimize your commercial EV charging infrastructure.

Remote O&M
Load Balancing
RFID
Plug & Play
OCPP
Wi-Fi
Ethernet
4G
Bluetooth

Get a Quote Spec Sheet

22 kW

Fast Charging

4

Innovative Designs

3 years

3-years warranty

15 min

15 minutes hassle-free setup

UE1 Commercial EV Charging Station

Versatility

1.Selectable Output: 7kW/11kW/22kW 2.Connector Types: IEC 62196-2 Compliant, Type 2 cable
3.Flexible Installation: Wall-mounted or Pedestal-mounted
4.Charging Cable: 5m Standard, 7m Optional

Future-ready Design

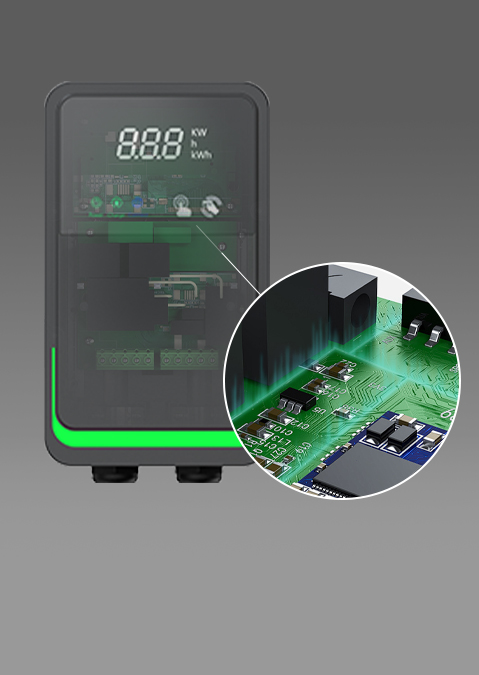

1. Drawer-style Wiring Design- no disassembly required
2. Real-time Dynamic Digital Display 3. Leading Wireless Self-Organizing Network for Multiple Chargers
4. SDLC for intuitive visual communication

Flexibility

1.Wi-Fi, Ethernet, Bluetooth, and 4G (optional)
2.Multiple start modes: Plug & Play, RFID Card, or Plug & Charge (optional)

High Reliability

1.Certified: CE, CB, UKCA
2.IP65 & IK08
3.ASA-grade UV-resistant

Safety and Endurance

1.Advanced relay arc suppression for long-term reliability
2.High-precision copper-based thermal dissipation
3.Multi-layered electrical protection system
4.Built-in O-PEN Protection

Intelligent Charging Control

1.Supports OCPP 1.6J & OCPP 2.0.1 2.ISO 15118 compatibility for Plug & Charge integration
3.DLB daisy-chain networking
4.Web portal access for remote setup via PowerConfig

Key Features OF EV charger at a Glance
Innovative Details, Premium Quality

Boost Efficiency Your Charging Infrastructure

Our versatile EV chargers deliver selectable output (7kW/11kW/22kW) and offer flexible installation options, including wall-mounted and pedestal-mounted configurations. Built with durable glass panels and an easy-to-maintain drawer-style wiring system, these chargers ensure reliability and long-term performance for both residential and commercial use.

Future-Ready Charging Solutions

Equipped with a real-time dynamic digital display, wireless self-organizing networks, and compatibility with OCPP 1.6J/2.0.1 and ISO 15118, our EV chargers provide scalable, intelligent solutions for seamless integration with evolving EV infrastructure, meeting the future demands of electric vehicle charging.

Smart EV Charging for System Integrators

Simplify deployment with chargers that support OCPP, ISO 15118, and multiple connectivity options. Perfect for seamless integration into smart energy or city systems.

UE1 vs. UE1pro – Compare Features and Performance

The UE1 is a cost-effective, reliable solution for residential and commercial use, featuring OCPP 1.6J support and essential safety features. The UE1pro, designed for advanced commercial needs, offers optional OCPP 2.0.1, ISO 15118, and Plug & Charge, making it ideal for businesses and fleet operators seeking future-ready, smart charging solutions.

UE1 Specifications

Rated Power: 7kW, 11kW, 22kW

Voltage: 208/240V, 180 to 264 VAC

Input Connector: Direct Connection, Hardwired Optioanl

Charging Connector: Type 2

Mounting Type: Wall-mount / Pedestal-mount

Cable Length: 5m Standard, 7m Optional

Display: Segmented display

Network Interface: LAN and WiFi/BT Standard, 4G Optional

Protocols: OCPP 1.6J

ISO 15118: No support

IP/IK Level: IP65/IK08

Operating Altitude: ≤2000m, No Derating

Safety Protection: RCD: TypeA+DC6mA, Ground Residual Current Monitor: BS-7671, O-PEN: BS-7671, Surge Protection: 4kV @2,000A

Protection: UVP, OVP, OCP, OTP, Control Pilot Fault Protection, Relay-sticking protection, Ground Fault Protection, O-PEN Protection

Safety Compliance: IEC61851-1, IEC61851-21-2, EN 62311, EN 62479, IEC/EN 62955

Certifications: CE, CB，UKCA

Net Weight: 6KG

Gross Weight: 7.2KG

Product Dimensions: 341W*200D*111H(mm)

Package Dimensions: 438W*373D*315H(mm)

UE1pro Specifications
