UE1 WLC&WCP Commercial EVSE
Wireless Self-Networking Commercial AC Chargers
UE1 Wireless Networking Series

Type 2 EV Charger

Build a Future-Proof Wireless EV Charging System

Compare the centralized control power of UE1WLC with the field-ready flexibility of UE1WCP to create an ultra-efficient, pre-networked EV charging system that excels in complex deployment environments.

  • remote o&m
    Remote O&M
  • Scheduler
    Scheduler
  • pv charging
    PV Charging
  • Load Balancing
    Load Balancing
  • APP
    App
  • rfid
    RFID
  • p&p
    Plug & Play
  • ocpp
    OCPP
  • wifi
    Wi-Fi
  • Ethernet
    Ethernet
  • 4g
    4G
  • bluetooth
    Bluetooth
Get a Quote Spec Sheet
Clear Charging Status

22 kW

charging power

Leading Tech Support

50 -unit

coordination via single UE1WLC hub

Comprehensive Certification

IP65

durability for indoor & outdoor environments

Comprehensive Certification

3 Years

3-years warranty

UE1 Scalable Wireless EV Charging Station

01

Versatility

1. Selectable Output: 7kW, 11kW, 22kW options.
2.Connector Types: IEC 62196-2 Type 2 cable.
3.Connector Types: IEC 62196-2 Type 2 cable.
4.Cable Length: 5m standard, 7m optional.

02

Future-Ready Design

1.Drawer-style Wiring: No disassembly needed for easy setup.
2. Real-time Digital Display: Dynamic, up-to-date information.

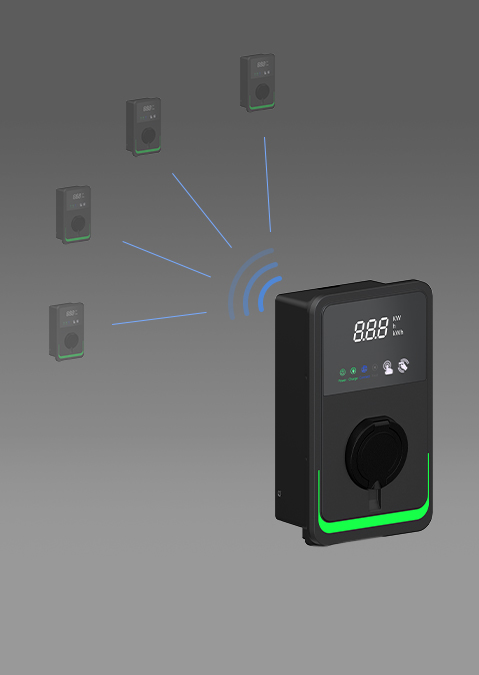

3. Wireless Self-Organizing Network: Connect multiple chargers seamlessly.
4.SDLC Communication: Intuitive visual interaction.

03

Flexibility

1. Connectivity: Wi-Fi, Ethernet, Bluetooth, optional 4G.
2. Start Modes: Plug & Charge, RFID, or Plug & Play (optional).

未标题-1
04

High Reliability

1.Certifications: CE, CB, UKCA.
2. Durability: IP65, IK08, UV-resistant housing.

05

Safety & Endurance

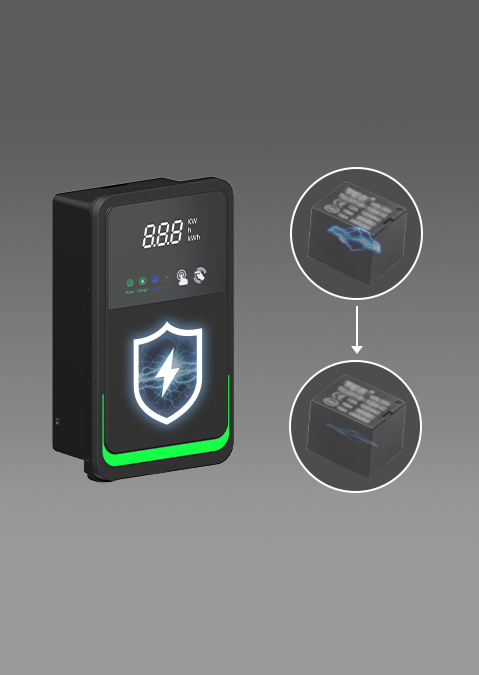

1.Relay Arc Suppression: Enhanced long-term reliability.
2.Copper Thermal Dissipation: High-efficiency cooling.
3.Multi-layer Protection: Robust electrical safety system.
4.O-PEN Protection: Built-in for added security.

06

Intelligent Charging Control

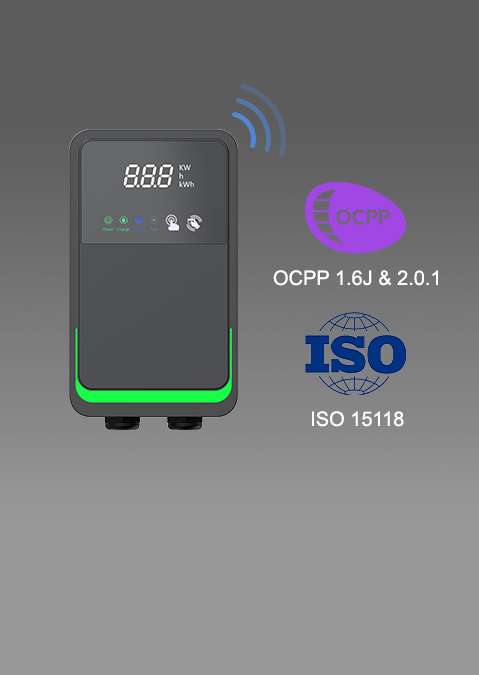

1.OCPP 1.6J & 2.0.1: Full protocol compatibility.
2.ISO 15118: Plug & Charge integration.
3.Daisy-chain Networking: Simplified expansion.
4.Remote Management: Access via PowerConfig web portal.

Key Features OF EV charger at a Glance

Innovative Details, Premium Quality

13
01

Lower Installation and Operation Costs Through Centralized Design

By eliminating the need for each charger to have its own 4G SIM or wired Ethernet connection, the UE1WLC + UE1WCP system reduces both upfront installation costs and long-term operational expenses. A single UE1WLC hub wirelessly manages and communicates with up to 50 UE1WCP devices through Wi-Fi HaLow, drastically minimizing the labor, materials, and time required for large-scale deployments. This makes it the ideal solution for property developers, parking operators, and energy service providers who need to deploy cost-efficient charging infrastructure at scale.

12
02

Ideal for Dense, Distributed, and Hard-to-Wire Environments

Whether you're outfitting a large underground garage, a multi-building residential complex, or retrofitting older infrastructure, this wireless EV charging system thrives where traditional wired networking struggles. The UE1WCP’s pre-networked, plug-free setup allows for smooth, centralized deployment without interfering with local networks or requiring high-bandwidth connectivity. It’s a future-proof solution built for the real-world constraints of high-density installations.

4
03

Enterprise-Level Safety and Compliance, Built In

From BS-7671 O-PEN protection to full IEC/EN compliance and CE/UKCA certifications, the system is ready for commercial and residential deployment in regulated markets across Europe. Built-in surge protection, residual current monitoring, and optional ISO 15118 support ensure peace of mind for operators and end-users alike.

未标题-1

UNR1 vs. UNR1Pro – Key Differences

UE1WLC  vs. UE1WCP – Compare Features and Performance
The UE1WLC operates as the wireless control hub, enabling centralized network access and unified management for multiple UE1WCP units. Instead of equipping each charging point with its own network module, the UE1WCP connects wirelessly to the UE1WLC via a Wi-Fi HaLow-based self-organizing mesh network. This architecture significantly reduces installation complexity and communication costs. While UE1WLC is tasked with core functions such as device coordination, remote configuration, and system updates, each UE1WCP is dedicated to delivering consistent charging service at the user end. With no need for individual 4G or Ethernet setups, the UE1WCP is simple to deploy and ideal for dense, distributed environments like underground garages or residential parking. Together, UE1WLC and UE1WCP form a smart, scalable EV charging network that offers both efficiency and reliability in challenging deployment scenarios.


UE1WLC Specifications
Rated Power: 7kW, 11kW, 22kW
Voltage: 208/240V, 180 to 264 VAC
Input Connector: Direct Connection, Hardwired Optioanl
Charging Connector: Type 2
Mounting Type: Wall-mount / Pedestal-mount
Cable Length: 5m Standard, 7m Optional
Display: Segmented display
Network Interface: LAN and WiFi/BT Standard, 4G Optional
Wireless Self-organizing Network: WIFI-Halow
Protocols: OCPP 1.6J/ OCPP 2.0.1
ISO 15118: Optional
IP/IK Level: IP65/IK08
Operating Altitude: ≤2000m, No Derating
Safety Protection: RCD: TypeA+DC6mA, Ground Residual Current Monitor: BS-7671, O-PEN: BS-7671, Surge Protection: 4kV @2,000A
Protection: UVP, OVP, OCP, OTP, Control Pilot Fault Protection, Relay-sticking protection, Ground Fault Protection, O-PEN Protection
Safety Compliance: IEC61851-1, IEC61851-21-2, EN 62311, EN 62479, IEC/EN 62955
Certifications: CE, CB,UKCA
Net Weight: 6KG
Gross Weight: 7.2KG
Product Dimensions: 341W*200D*111H(mm)
Package Dimensions: 438W*373D*315H(mm)

UE1WCP Specifications
Rated Power: 7kW, 11kW, 22kW
Voltage: 208/240V, 180 to 264 VAC
Input Connector: Direct Connection, Hardwired Optioanl
Charging Connector: Type 2
Mounting Type: Wall-mount / Pedestal-mount
Cable Length: 5m Standard, 7m Optional
Display: Segmented display
Network Interface: LAN and WiFi/BT Standard, 4G Optional
Wireless Self-organizing Network: WIFI-Halow
Protocols: OCPP 1.6J/ OCPP 2.0.1
ISO 15118: Optional
IP/IK Level: IP65/IK08
Operating Altitude: ≤2000m, No Derating
Safety Protection: RCD: TypeA+DC6mA, Ground Residual Current Monitor: BS-7671, O-PEN: BS-7671, Surge Protection: 4kV @2,000A
Protection: UVP, OVP, OCP, OTP, Control Pilot Fault Protection, Relay-sticking protection, Ground Fault Protection, O-PEN Protection
Safety Compliance: IEC61851-1, IEC61851-21-2, EN 62311, EN 62479, IEC/EN 62955
Certifications: CE, CB,UKCA
Net Weight: 6KG
Gross Weight: 7.2KG
Product Dimensions: 341W*200D*111H(mm)
Package Dimensions: 438W*373D*315H(mm)
