Single Commercial AC Chargers

UE2 Commercial EV Charging Series

EV Charger Type 2

Transform Your Commercial Charging with UE2

Maximize efficiency with low standby power, enjoy easy maintenance with a drawer-style wiring design, benefit from sleek and durable glass panels, and scale effortlessly with a stable wireless mesh network.

Remote O&M
Load Balancing
RFID
Plug & Play
OCPP
Wi-Fi
Ethernet
4G
Bluetooth

Get a Quote Spec Sheet

22 kW

Fast Charging

4.3 inch

High-Resolution LCD Screen

60 %

reduction in standby energy consumption

3 Years

3-years warranty

UE2 Commercial EV Charging Stations

Versatility

1.Adjustable Power Output: Choose between 7kW, 11kW, and 22kW 2.Connector Compatibility: IEC 62196-2 compliant, Type 2 cable
3.Adaptable Mounting Options: wall or pedestal
4.Standard 5m, optional 7m

Future-ready Design

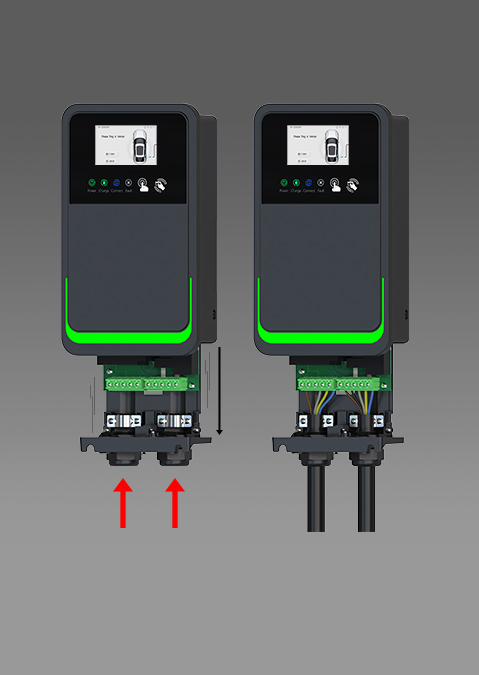

1. Effortless Wiring: Drawer-style wiring design

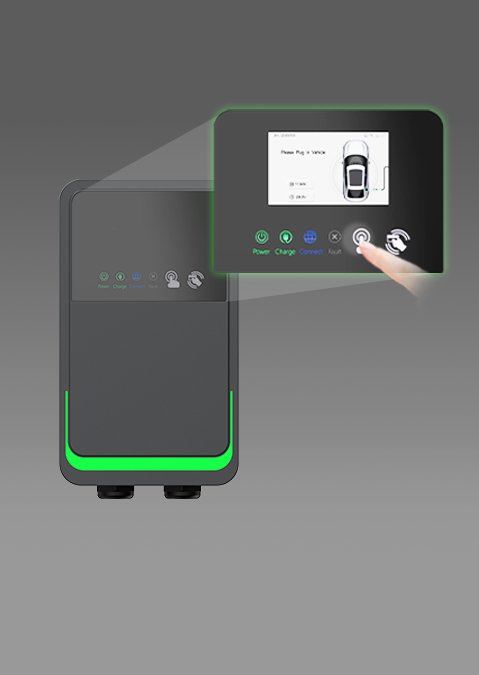

2. Energy Efficient Standby: Ultra-low power consumption
3. Advanced Wireless Connectivity: Self-organizing network
4. SDLC Visual Interface: Clear, intuitive light codes

Flexibility

1.Multiple Connectivity Options: Wi-Fi, Ethernet, Bluetooth, with optional 4G
2.Various Charging Start Modes: Plug & Play, RFID card, or optional Plug & Charge

High Reliability

1.Certified: CE, CB, UKCA
2.IP65 & IK08
3.UV Resistance: ASA-grade materials

Safety and Endurance

1.Relay Arc Protection: Advanced arc suppression
2.Efficient Thermal Management: High-precision copper heat dissipation technology 3.Comprehensive Electrical Protection: Multi-layered safety system built-in
4.O-PEN Safety Integration

Intelligent Charging Control

1.OCPP Support: OCPP 1.6J/OCPP 2.0.1 2.Plug & Charge(optional): ISO 15118
3.Daisy-Chain Networking: Easy scalability with DLB
4.Remote Configuration: Web-based setup via PowerConfig

Key Features OF EV charger at a Glance
Innovative Details, Premium Quality

Scalable EV Charging Infrastructure for Operators

Optimize your EV charging operations with our future-ready chargers—featuring self-organizing wireless networks, daisy-chain load balancing, and web-based remote configuration for maximum uptime and scalability.

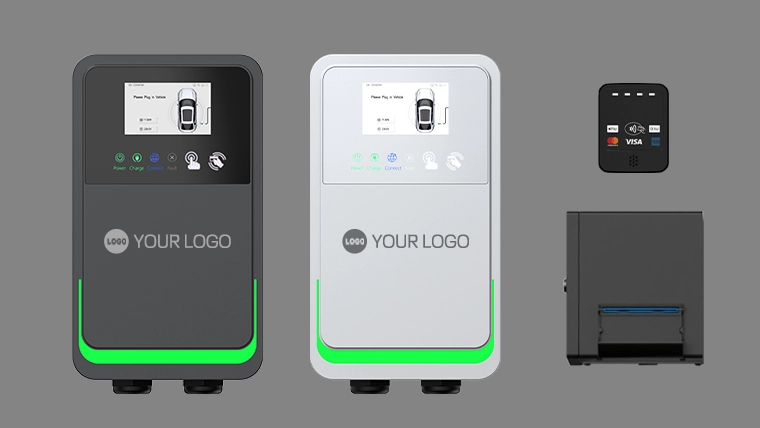

Customizable EV Chargers for Resellers with Brand-Ready Design and Full Certification

Launch your own EV charger brand effortlessly. Our fully certified, customizable chargers feature sleek design, modular wiring, and OEM/ODM flexibility—perfect for resellers seeking fast go-to-market solutions.

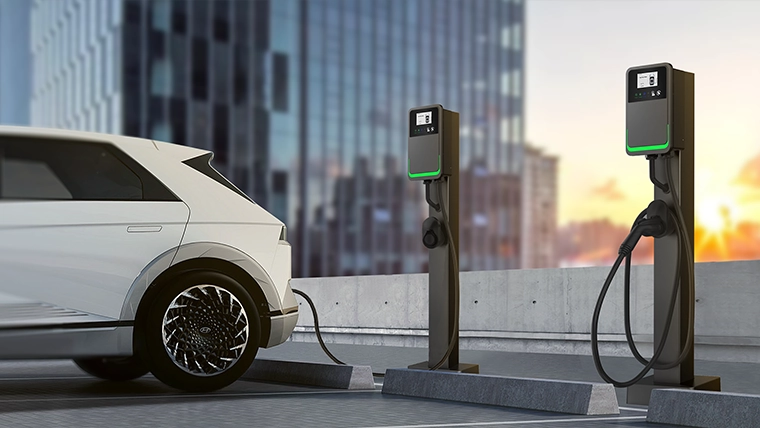

Stylish and Durable EV Chargers for Properties and Communities

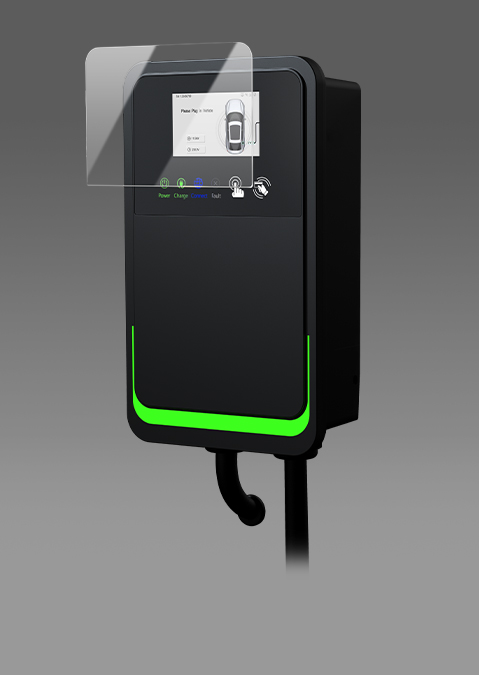

Enhance property value with EV chargers featuring premium glass panels, real-time digital displays, and IP65 protection. Ideal for apartment blocks, commercial complexes, and shared garages.

Compare UE2 vs. UE2Pro – Features and Performance

The UE2 is a dependable charging solution suitable for both residential and commercial environments. It supports OCPP 1.6J and includes essential safety features. In contrast, the UE2Pro is designed to meet the demands of advanced commercial applications, offering optional OCPP 2.0.1, ISO 15118, and Plug & Charge capabilities, making it the perfect choice for businesses and fleet operators seeking cutting-edge, future-proof charging solutions.

UE1 Specifications

Power Output: 7kW, 11kW, 22kW

Voltage Range: 230Vac±10% (7kW) / 400Vac±10% (11kW/22kW)

Input Type: Direct Connection, Hardwired (optional)

Charging Connector: Type 2

Mounting Options: Wall-mounted / Pedestal-mounted

Cable Length: 5m (Standard), 7m (Optional)

Display: 4.3" Color LCD, 480 x 272 resolution

Network Connectivity: LAN, WiFi, Bluetooth (Standard), 4G (Optional)

Charging Protocol: OCPP 1.6J

ISO 15118: Not supported

Protection:

Residual Current Device (RCD): Type A + DC 6mA

Ground Residual Current Monitor: BS-7671

Surge Protection: 4kV @ 2,000A

O-PEN Protection: BS-7671

Over Voltage Protection (OVP), Over Current Protection (OCP), Over Temperature Protection (OTP)

Control Pilot Fault, Relay-Sticking, and Ground Fault Protection

Certifications: CE, CB, UKCA

IP/IK Rating: IP65 / IK08 (Dust and Water Resistant)

Safety Compliance: IEC 61851-1, IEC 61851-21-2, EN 62311, EN 62479, IEC/EN 62955

Operating Altitude: ≤2000m (No Derating)

Net Weight: 6kg

Gross Weight: 7.2kg

Product Dimensions: 341W x 200D x 111H (mm)

Packaging Dimensions: 438W x 373D x 315H (mm)

UE1Pro Specifications
