Wireless Self-Networking Commercial AC Chargers

UE2 Wireless Networking Series

EV Charger Type 2

Centralized EV Charging Made Simple

Centralized Management and Seamless Scalability – A Robust Wireless Charging Solution for Challenging Environments

Remote O&M
Scheduler
PV Charging
Load Balancing
App
RFID
Plug & Play
OCPP
Wi-Fi
Ethernet
4G
Bluetooth

Get a Quote Spec Sheet

22 kW

high-speed charging

50

endpoints per controller

4.3

inch High-Resolution LCD Screen

3 Years

3-years warranty

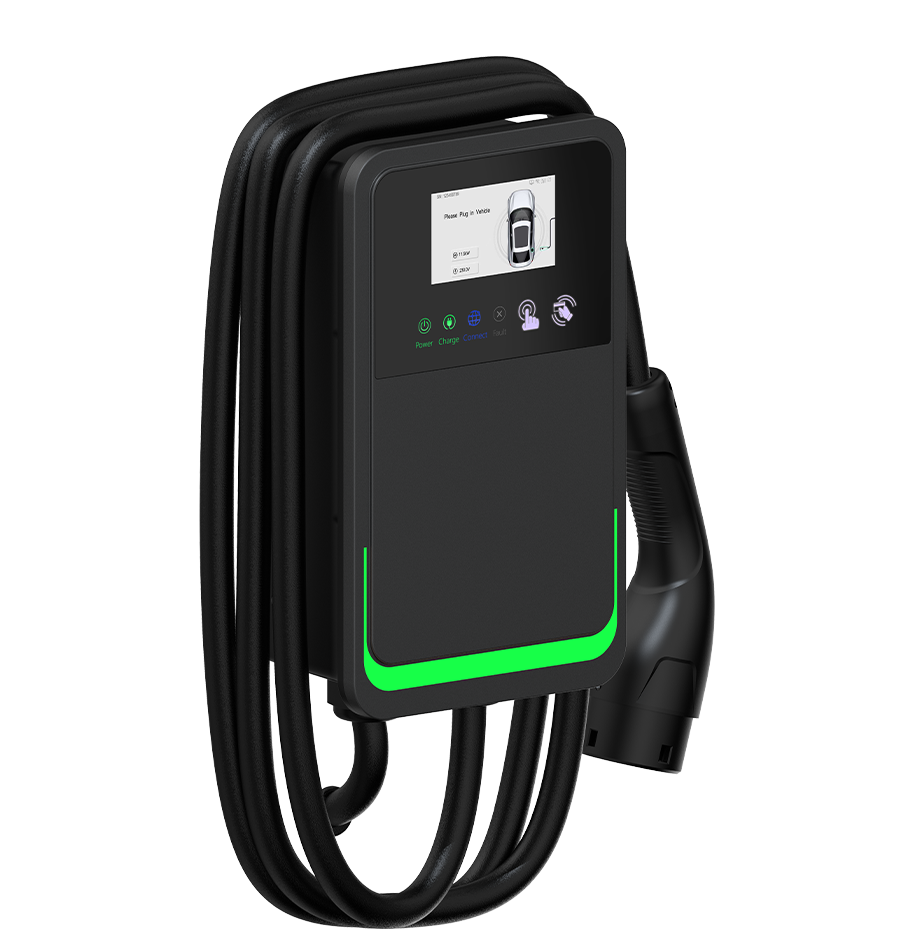

UE2 Scalable Wireless EV Charging Station

Versatility

1. Selectable Output: 7kW, 11kW, 22kW for diverse charging needs.
2.Connector Types: IEC 62196-2 Type 2 for EV compatibility.

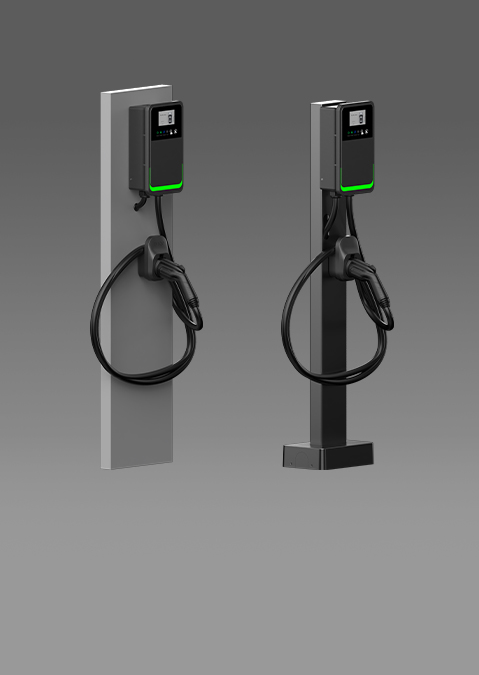

3.Flexible Mounting: Wall or Pedestal-mount for versatile installation.
4.Cable Length: 5m (standard), 7m (optional) for flexible setup.

Future-Ready Design

1. Drawer-style Wiring: Easy, tool-free wiring for maintenance.
2. Dynamic Display: Real-time info on a 4.3” LCD screen.
3. Wireless Network: Connect up to 50 chargers via mesh system.
4.SDLC Interface: Simple remote management via visual interface.

Flexibility

1. Connectivity: Wi-Fi, Ethernet, Bluetooth, 4G optional.
2. Charging Modes: Plug & Play, RFID, Plug & Charge.

High Reliability

1.Certifications: CE, CB, UKCA for global safety.

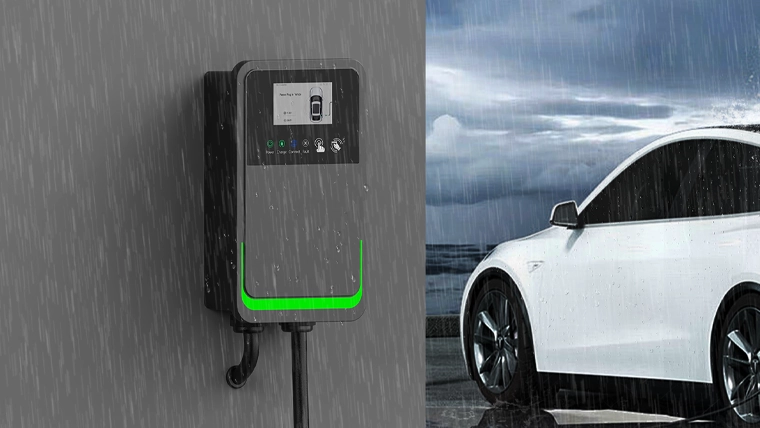

2. Weatherproof: IP65 & IK08 rated for durability.
3.UV-resistant: ASA-grade housing for outdoor use.

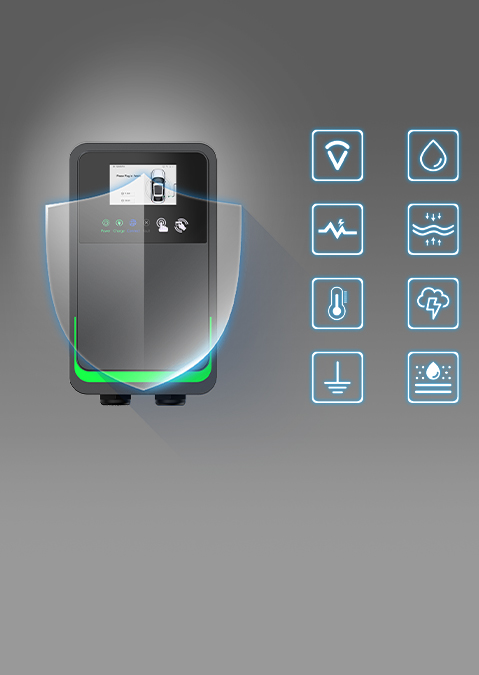

Safety & Endurance

1.Arc Suppression: Reliable relay technology.
2.Thermal Dissipation: Efficient copper-based heat management.
3.Multi-layer Protection: Overvoltage, overcurrent, and temperature safety.
4.O-PEN Protection: Ensures electric shock safety.

Intelligent Charging Control

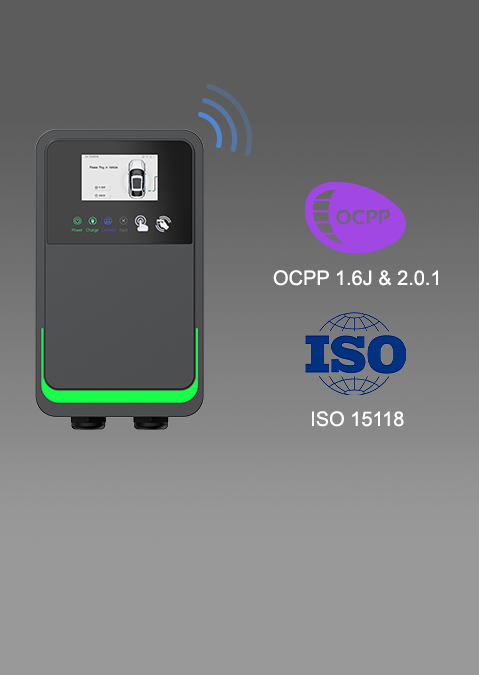

1.OCPP Support: Compatibility with OCPP 1.6J/2.0.1.
2.Plug & Charge: ISO 15118 for easy automated sessions.
3.Daisy-chain Networking: Scalable for large deployments.
4.Remote Configuration: Manage via web portal (PowerConfig).

Key Features OF EV charger at a Glance
Innovative Details, Premium Quality

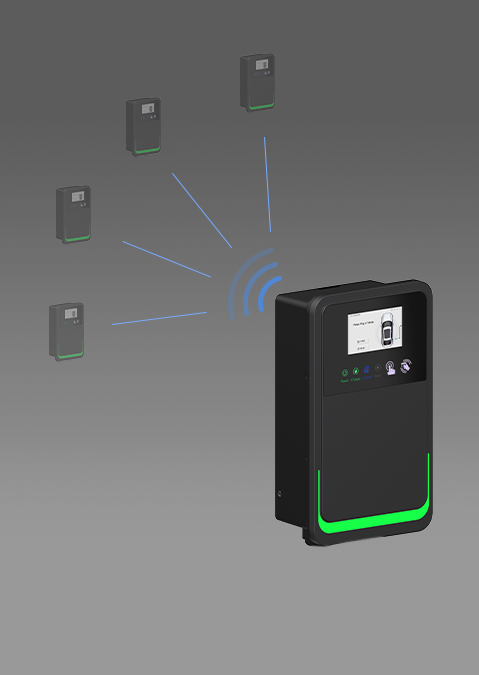

Leading Wireless Self-Organizing Network for Multiple Chargers

Cost-Efficient Deployment

The integrated wireless self-organizing network minimizes the complexity of installations, reducing upfront infrastructure costs. Ideal for businesses looking to lower initial capital expenditures while ensuring a reliable and efficient network.

Seamless Scalability

Manage up to 50 chargers from a single centralized UE2WLC unit. Perfect for large-scale commercial applications, such as retail chains, property developers, and fleet management companies, ensuring easy expansion without system overhauls.

Long-Term ROI

Future-proof design, low maintenance, and robust safety features provide businesses with operational savings over time. Reduced downtime, enhanced system reliability, and optimized energy management deliver substantial return on investment and lower total cost of ownership.

UN1 EV Charging Series

UE2WLC vs. UE2WCP – Compare Features and Performance

UE2WLC acts as the backbone of the wireless charging network, designed to manage and connect up to 50 UE2WCP chargers through a Wi-Fi HaLow mesh system. Unlike traditional charging points that require individual network access, UE2WCP units rely on the UE2WLC for communication and control, eliminating the need for separate 4G or Ethernet modules. This setup minimizes wiring efforts and greatly simplifies deployment. UE2WLC takes charge of centralized functions—such as device discovery, status monitoring, and load balancing—while UE2WCP focuses on delivering seamless end-user charging performance. The combination offers a highly flexible and cost-efficient solution for locations with limited connectivity, ensuring high stability, easy maintenance, and scalable installation.

UE2WLC Specifications

Power Output: 7kW, 11kW, 22kW

Voltage Range: 230Vac±10% (7kW) / 400Vac±10% (11kW/22kW)

Input Type: Direct Connection, Hardwired (optional)

Charging Connector: Type 2

Mounting Options: Wall-mounted / Pedestal-mounted

Cable Length: 5m (Standard), 7m (Optional)

Display: 4.3" Color LCD, 800 x 480 resolution, OTA (Over-the-Air) display UI support

Network Connectivity: LAN, WiFi, Bluetooth (Standard), 4G (Optional)

Wireless Self-organizing Network: WIFI-Halow

Charging Protocols: OCPP 1.6J / OCPP 2.0.1

ISO 15118: Optional

Protection:

Residual Current Device (RCD): Type A + DC 6mA

Ground Residual Current Monitor: BS-7671

Surge Protection: 4kV @ 2,000A

O-PEN Protection: BS-7671

Over Voltage Protection (OVP), Over Current Protection (OCP), Over Temperature Protection (OTP)

Control Pilot Fault, Relay-Sticking, and Ground Fault Protection

Certifications: CE, CB, UKCA

IP/IK Rating: IP65 / IK08 (Dust and Water Resistant)

Safty Compliance: IEC 61851-1, IEC 61851-21-2, EN 62311, EN 62479, IEC/EN 62955

Operating Altitude: ≤2000m (No Derating)

Net Weight: 6kg

Gross Weight: 7.2kg

Product Dimensions: 341W x 200D x 111H (mm)

Packaging Dimensions: 438W x 373D x 315H (mm)

UE2WCP Specifications
