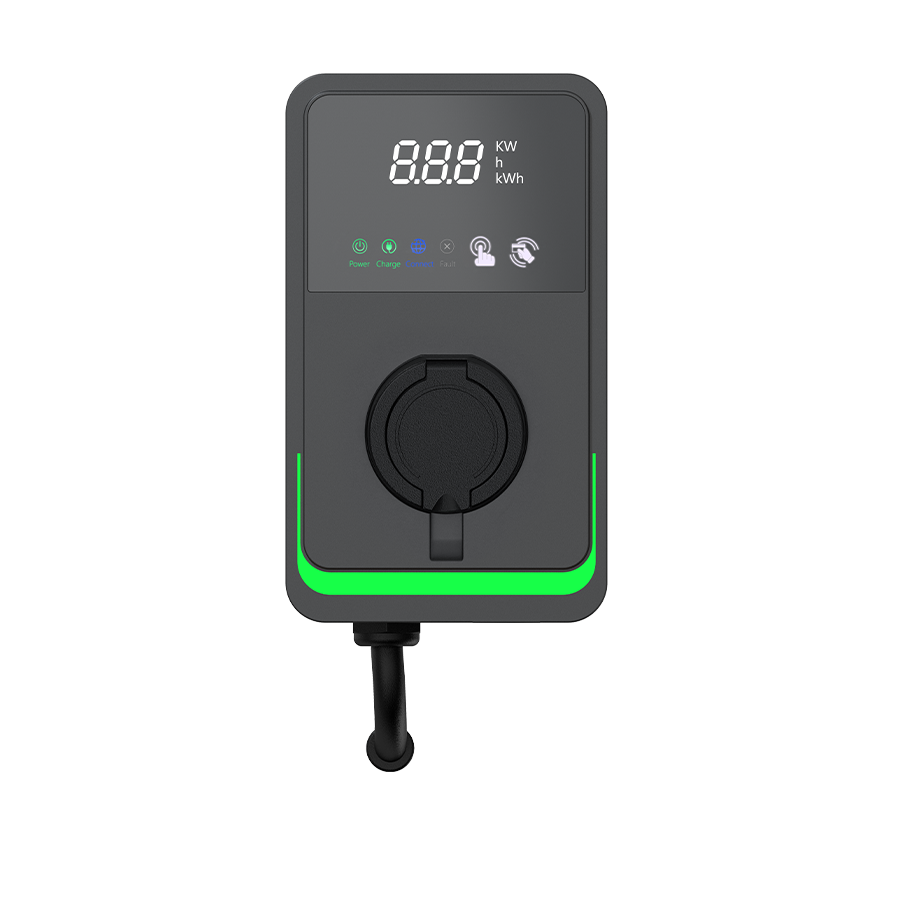

UES1 EV charging stations for business Type 2
Single Commercial AC Chargers
UES1 Commercial EV Charging Series

EV Charger Type 2 Socket

Revolutionize Your Commercial Charging with UES1

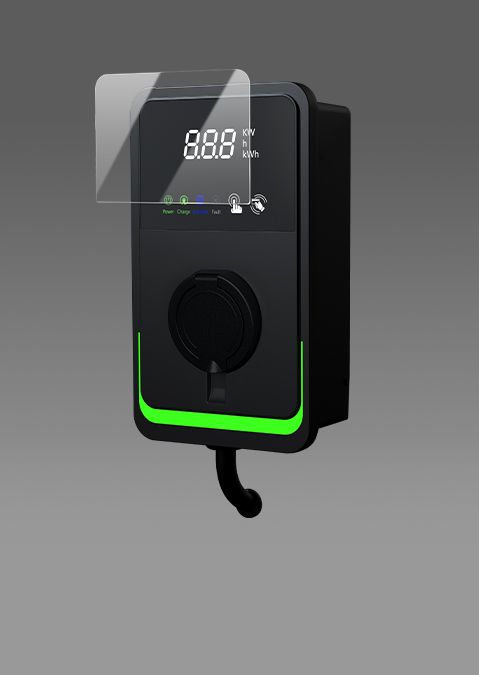

Benefit from a user-friendly digital display, convenient hidden adjustment interface, robust scratch-proof glass panel, and an adaptable modular design—engineered to grow with your commercial charging needs. Integrated in the charging station’s bottom interface area, the SIM card slot, DBG port, reset button, and current dial switch eliminate the need for cover removal, simplifying installation and debugging while enhancing overall user convenience.

  • remote o&m
    Remote O&M
  • Load Balancing
    Load Balancing
  • rfid
    RFID
  • p&p
    Plug & Play
  • ocpp
    OCPP
  • wifi
    Wi-Fi
  • Ethernet
    Ethernet
  • 4g
    4G
  • bluetooth
    Bluetooth
Get a Quote Spec Sheet
Clear Charging Status

22 kW

Fast Charging

创新

4

Innovative Designs

Comprehensive Certification

3 Years

3-years warranty

Leading Tech Support

15 min

15 minutes hassle-free setup

UES1 Commercial EV Charging Points

01

Versatility

1.Selectable Output: 7kW, 11kW, or 22kW 2.Connector: IEC 62196-2, Type 2 socket 3.Installation: Wall or pedestal mount 4.Cable Length: 5m (standard), 7m (optional)

02

Innovative Design

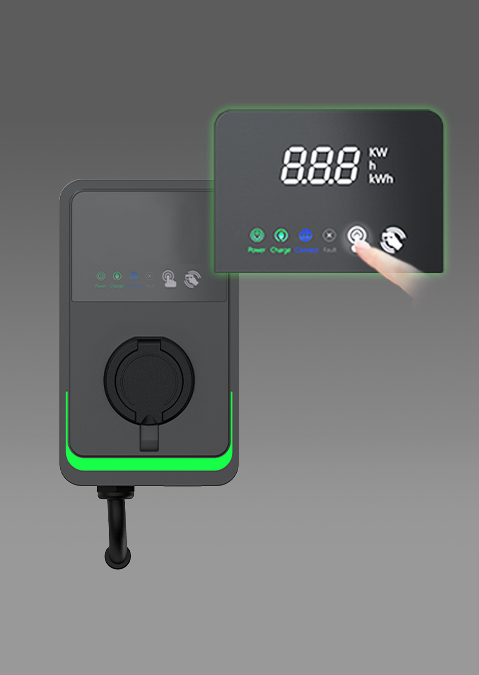

1.Real-time digital display 2.Hidden adjustment interface

3.Wireless network for multiple chargers
4.Software-Defined Light Codes

03

Flexibility

1.Connectivity: Wi-Fi, Ethernet, Bluetooth, optional 4G
2.Start Modes: Plug & GO, RFID, Plug & Charge (optional)

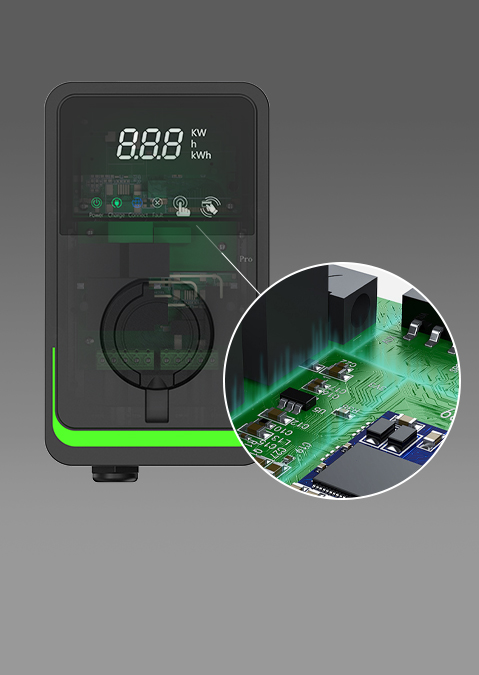

3.Modular Design

UES1 EV charging stations for business Type 2
04

Reliability

1.Certifications: CE, CB, UKCA 2.Protection: IP54, IK08
3.UV-resistant ASA material

05

Safety & Endurance

1.Relay arc suppression
2.Copper thermal dissipation
3.Multi-layer electrical protection
4.O-PEN protection

06

Intelligent Charging

1.OCPP 1.6J & 2.0.1 support
2.Plug & Charge: ISO 15118 support
3.RS485 Daisy-chain networking
4.Remote setup via PowerConfig

Key Features OF EV charger at a Glance

Innovative Details, Premium Quality

Enhanced Safety & Protection for High-Risk Environments
01

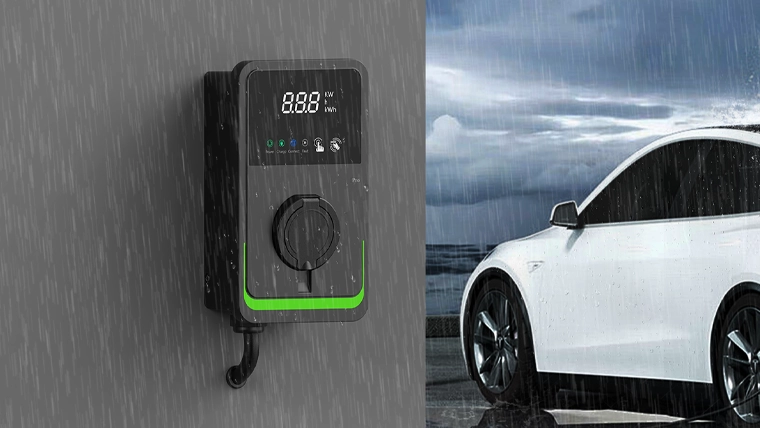

Enhanced Safety & Protection for High-Risk Environments

Built with durability and safety in mind, our EV chargers are perfect for use in high-traffic or high-risk environments. With certifications such as CE, CB, and UKCA, and a robust IP54 & IK08 rating, these chargers offer resistance to dust, water, and impacts, ensuring longevity and reliability. Features like relay arc suppression, copper thermal dissipation, and multi-layer electrical protection guarantee that the charging stations operate safely, reducing maintenance costs and protecting both equipment and users.

s1
02

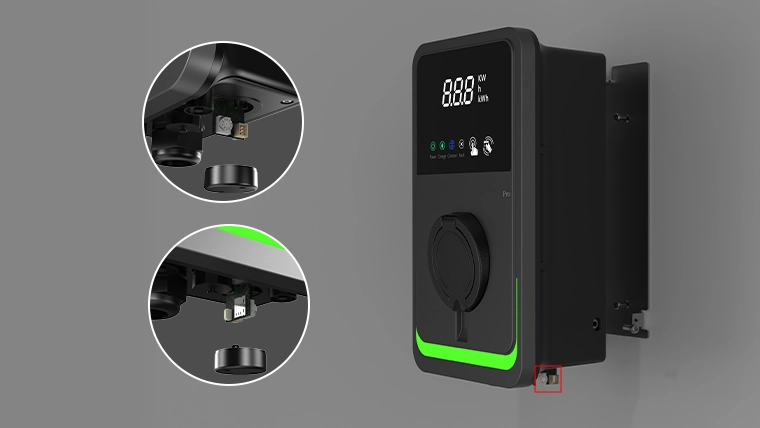

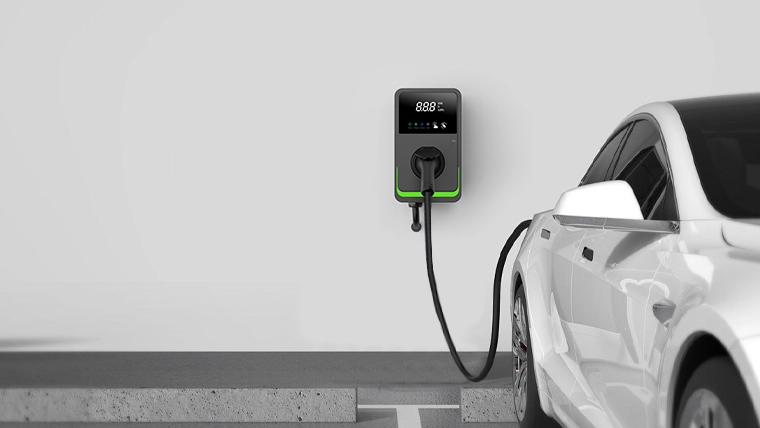

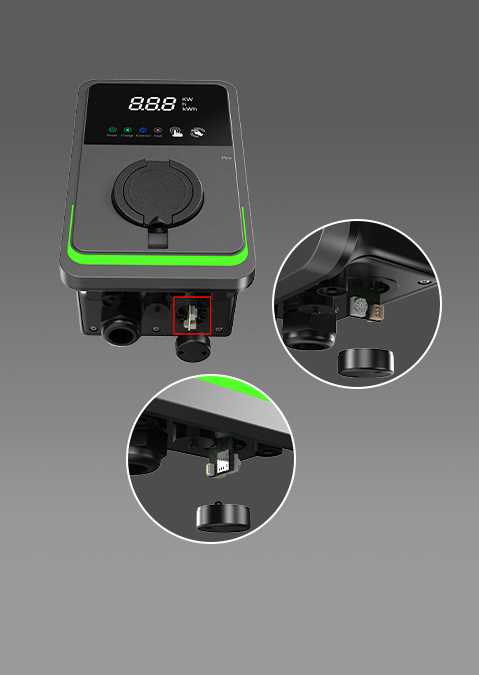

Streamlined Installation & Maintenance for Operational Efficiency

With a hidden adjustment interface that integrates essential components like the SIM card slot, DBG port, reset button, and current dial switch, installation and maintenance are simplified. This reduces operational downtime and labor costs for businesses, ensuring a smooth setup and effortless ongoing maintenance. The user-friendly design increases operational efficiency and contributes to a seamless experience, saving both time and resources for fleet managers and charging station operators.

s11
03

Scalable & Future-Ready EV Charging Solutions for Businesses

Our chargers are designed with scalability in mind, making them ideal for businesses looking to expand their EV infrastructure. With support for multiple outputs (7kW, 11kW, and 22kW) and advanced networking capabilities like wireless mesh connectivity and RS485 daisy-chain networking, your business can easily grow its charging network without compromising on performance. Future-proof features like OCPP 2.0.1 and Plug & Charge support make these chargers the perfect investment for long-term business success.

UES1 EV charging stations for business Type 2

UES1 vs. UES1pro – Compare Features and Performance

The UES1 provides an affordable and dependable charging solution, suitable for both residential and commercial applications. It comes equipped with OCPP 1.6J support, ensuring seamless integration with existing networks and providing essential safety features, making it a reliable choice for everyday use.

The UES1pro, tailored for more advanced commercial needs, takes charging technology to the next level with optional OCPP 2.0.1 support, ISO 15118 compatibility for Plug & Charge, and enhanced smart features. Designed for businesses and fleet operators, it is a future-proof solution that offers greater flexibility, scalability, and operational efficiency. The UES1pro is ideal for organizations looking to adopt cutting-edge technology, optimize their charging infrastructure, and offer a more seamless, automated experience for their customers or fleet vehicles.

UES1 Specifications
Rated Power: 7kW, 11kW, 22kW
Voltage: 208/240V, 180 to 264 VAC
Input Connector: Direct Connection, Hardwired Optioanl
Charging Connector: Type 2 Socket
Mounting Type: Wall-mount / Pedestal-mount
Cable Length: 5m Standard, 7m Optional
Display: Segmented display
Network Interface: LAN and WiFi/BT Standard, 4G Optional
Protocols: OCPP 1.6J
ISO 15118: No support
IP/IK Level: IP54/IK08
Operating Altitude: ≤2000m, No Derating
Safety Protection: RCD: TypeA+DC6mA, Ground Residual Current Monitor: BS-7671, O-PEN: BS-7671, Surge Protection: 4kV @2,000A
Protection: UVP, OVP, OCP, OTP, Control Pilot Fault Protection, Relay-sticking protection, Ground Fault Protection, O-PEN Protection
Safety Compliance: IEC61851-1, IEC61851-21-2, EN 62311, EN 62479, IEC/EN 62955
Certifications: CE, CB,UKCA
Net Weight: 6KG
Gross Weight: 7.2KG
Product Dimensions: 341W*200D*111H(mm)
Package Dimensions: 438W*373D*315H(mm)

UES1pro Specifications
Rated Power: 7kW, 11kW, 22kW
Voltage: 208/240V, 180 to 264 VAC
Input Connector: Direct Connection, Hardwired Optioanl
Charging Connector: Type 2 Socket
Mounting Type: Wall-mount / Pedestal-mount
Cable Length: 5m Standard, 7m Optional
Display: Segmented display
Network Interface: LAN and WiFi/BT Standard, 4G Optional
Protocols: OCPP 1.6J/ OCPP 2.0.1
ISO 15118: Optional
IP/IK Level: IP54/IK08
Operating Altitude: ≤2000m, No Derating
Safety Protection: RCD: TypeA+DC6mA, Ground Residual Current Monitor: BS-7671, O-PEN: BS-7671, Surge Protection: 4kV @2,000A
Protection: UVP, OVP, OCP, OTP, Control Pilot Fault Protection, Relay-sticking protection, Ground Fault Protection, O-PEN Protection
Safety Compliance: IEC61851-1, IEC61851-21-2, EN 62311, EN 62479, IEC/EN 62955
Certifications: CE, CB,UKCA
Net Weight: 6KG
Gross Weight: 7.2KG
Product Dimensions: 341W*200D*111H(mm)
Package Dimensions: 438W*373D*315H(mm)
