Wireless Self-Networking Commercial AC Chargers

UES1 EV charging stations for business Type 2

UES1 Wireless Networking Series

EV Charger Type 2 Socket

Powerful Charging Solutions with Scalable Wireless Network

UES1WLC and UES1WCP are the ideal solution for businesses seeking scalable, cost-effective, and easy-to-deploy EV charging stations. Designed for large installations, these two models offer seamless cloud integration, ensuring simple management and expansion.

Remote O&M
Scheduler
PV Charging
Load Balancing
App
RFID
Plug & Play
OCPP
Wi-Fi
Ethernet
4G
Bluetooth

Get a Quote Spec Sheet

22 kW

charging power

50 -unit

coordination via single UE1WLC hub

65 rated

durability for indoor & outdoor environments

3 Years

3-years warranty

UES1 Scalable Wireless EV Charging Station

Versatility

1. Selectable Output: 7kW, 11kW, 22kW for diverse charging needs.
2.Connector Types: IEC 62196-2 Type 2 Socket for EV compatibility.
3.Flexible Mounting: Wall or Pedestal-mount for versatile installation.

Future-Ready Design

1.Drawer-style Wiring: Easy, tool-free wiring for maintenance.
2. Dynamic Display: Real-time info on a digital display screen.

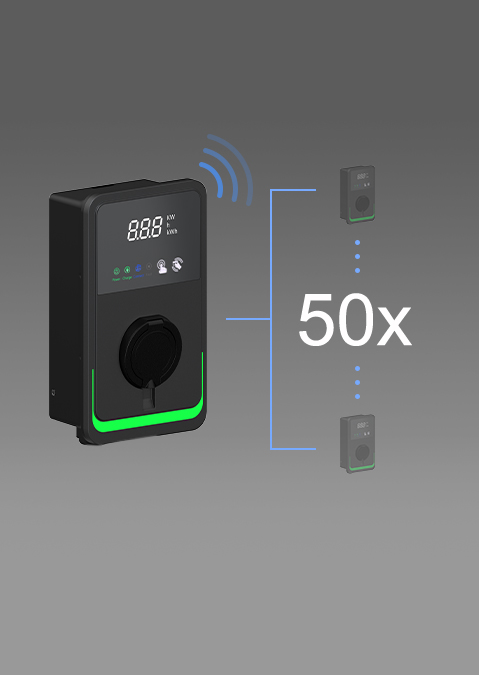

3. Wireless Network: Connect up to 50 chargers via mesh system.
4.SDLC Interface: Simple remote management via visual interface.

Flexibility

1. Connectivity: Wi-Fi, Ethernet, Bluetooth, 4G optional.
2. Charging Modes: Plug & Play, RFID, Plug & Charge.

High Reliability

1.Certifications: CE, CB, UKCA for global safety.
2. Weatherproof: IP65 & IK08 rated for durability.
3.UV-resistant: ASA-grade housing for outdoor use.

Safety & Endurance

1.Arc Suppression: Reliable relay technology.
2.Thermal Dissipation: Efficient copper-based heat management.
3.Multi-layer Protection: Overvoltage, overcurrent, and temperature safety.
4.O-PEN Protection: Ensures electric shock safety.

Intelligent Charging Control

1.OCPP Support: Compatibility with OCPP 1.6J/2.0.1.

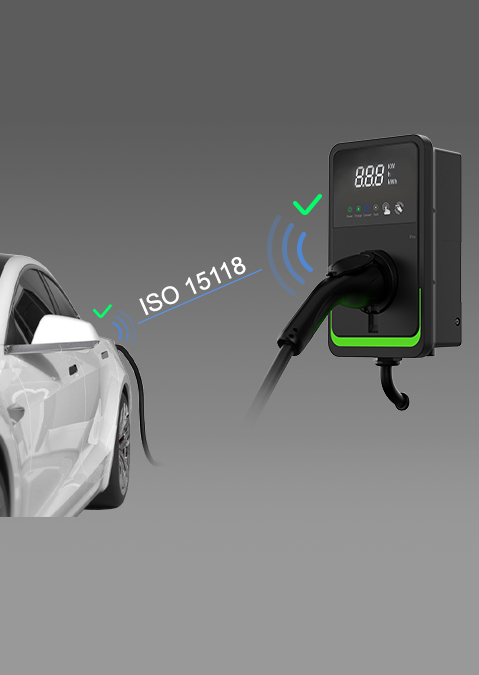

2.Plug & Charge: ISO 15118 for easy automated sessions.
3.Daisy-chain Networking: Scalable for large deployments.
4.Remote Configuration: Manage via web portal (PowerConfig).

Key Features OF EV charger at a Glance
Innovative Details, Premium Quality

Scalable and Low-Cost Charging Network for Operators and Developers

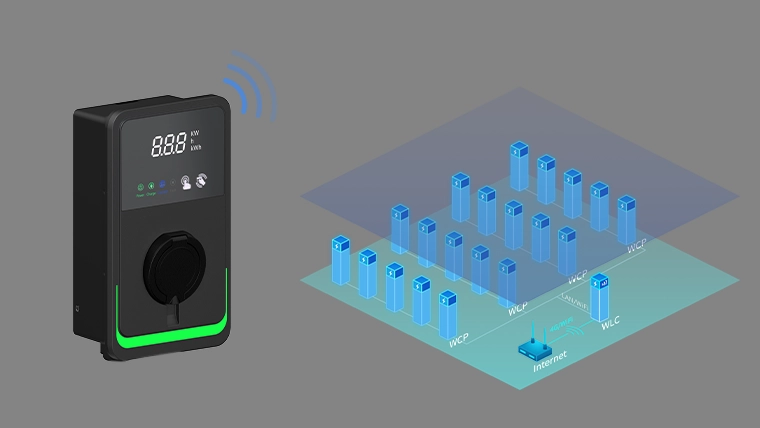

UES1WLC + UES1WCP create a high-performance wireless charging ecosystem that connects up to 50 chargers with one controller—no Ethernet or SIM required. Ideal for underground parking lots, commercial buildings, and multi-unit deployments, this architecture saves 30–50% on installation and networking costs, while maintaining strong connectivity via WiFi-HaLow.

Flexible Installation for Contractors and System Integrators

With 22kW max output, wall or pedestal mounting, and 5m/7m cable options, UES1 is built for quick adaptation across sites—residential, retail, fleet, or government. The drawer-style wiring design enables rapid, tool-free maintenance, reducing operational complexity and downtime.

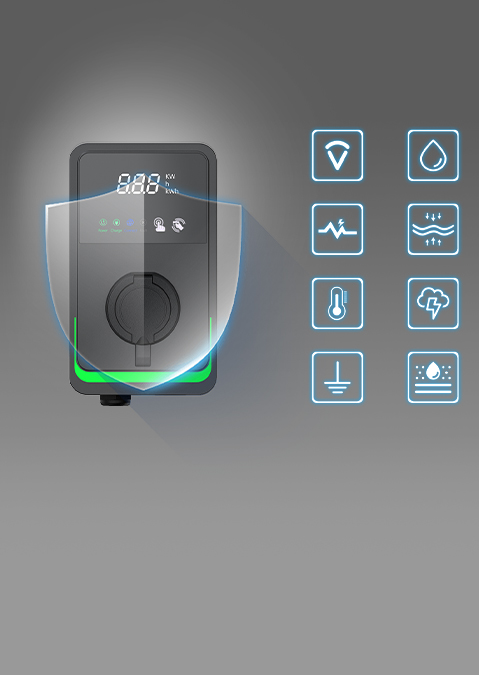

Enhanced Safety & Protection for High-Risk Environments

Smart Management for Energy Companies and Fleet Owners

Support for OCPP 1.6J/2.0.1, optional ISO15118 Plug & Charge, and remote control via the UE1WLC cloud hub makes managing large networks seamless. Integrate effortlessly with backend billing, load balancing, and real-time diagnostics to maximize energy efficiency and service uptime.

UE1WLC vs. UE1WCP – Compare Features and Performance

UE1WLC vs. UE1WCP – Compare Features and Performance

UE1WLC is the wireless controller that connects to the cloud and manages up to 50 UE1WCP units. UE1WCP connects to UE1WLC via Wi-Fi HaLow, requiring no 4G or Ethernet. Together, they enable a smart, low-cost, and easy-to-deploy charging network.

UES1 WLC Specifications

Rated Power: 7kW, 11kW, 22kW

Voltage: 208/240V, 180 to 264 VAC

Input Connector: Direct Connection, Hardwired Optioanl

Charging Connector: Type 2 Socket

Mounting Type: Wall-mount / Pedestal-mount

Cable Length: 5m Standard, 7m Optional

Display: Segmented display

Network Interface: LAN and WiFi/BT Standard, 4G Optional

Wireless Self-organizing Network: WIFI-Halow

Protocols: OCPP 1.6J

ISO 15118: No support

IP/IK Level: IP54/IK08

Operating Altitude: ≤2000m, No Derating

Safety Protection: RCD: TypeA+DC6mA, Ground Residual Current Monitor: BS-7671, O-PEN: BS-7671, Surge Protection: 4kV @2,000A

Protection: UVP, OVP, OCP, OTP, Control Pilot Fault Protection, Relay-sticking protection, Ground Fault Protection, O-PEN Protection

Safety Compliance: IEC61851-1, IEC61851-21-2, EN 62311, EN 62479, IEC/EN 62955

Certifications: CE, CB，UKCA

Net Weight: 6KG

Gross Weight: 7.2KG

Product Dimensions: 341W*200D*111H(mm)

Package Dimensions: 438W*373D*315H(mm)

UES1 WCP Specifications
