Wireless Self-Networking Commercial AC Chargers

UES2 Wireless Networking Series

Type 2 Socket EV Charger

Pre-Networked for Fast, Scalable Deployment

UES2WCP comes pre-configured for instant wireless connection to UES2WLC—no need for site-based SIM cards, Ethernet, or setup.

Remote O&M
Scheduler
PV Charging
Load Balancing
App
RFID
Plug & Play
OCPP
Wi-Fi
Ethernet
4G
Bluetooth

Get a Quote Spec Sheet

22 kW

high-speed charging

50

endpoints per controller

4.3

inch High-Resolution LCD Screen

3 Years

3-years warranty

UES2 Scalable Wireless EV Charging Station

Versatile Charging Options

1. 7kW / 11kW / 22kW output for varied use cases
2.IEC 62196-2 Type 2 socket, EV universal

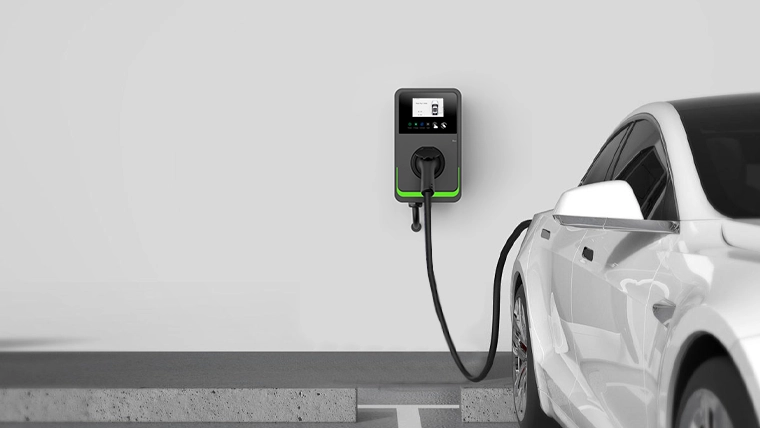

3.Wall or pedestal mounting flexibility

Built for the Future

1.Tool-free drawer wiring for quick maintenance
2. 4.3" LCD with live charging data

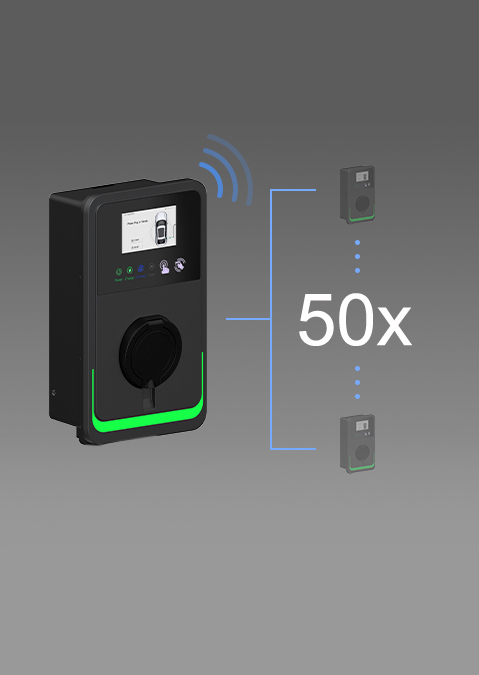

3. Mesh networking for up to 50 units
4. SDLC interface for intuitive remote control

Smart Connectivity

1. Wi-Fi, Ethernet, Bluetooth, 4G optional
2. Plug & Play, RFID, ISO 15118 Plug & Charge

Reliable in Any Environment

1.CE / CB / UKCA certified
2. IP65 & IK08 rated, ASA UV-resistant housing
3.Designed for both indoor and outdoor setups

Advanced Safety System

1.Relay-based arc suppression
2.Copper heat dissipation system
3.Full-spectrum protection: OVP, OCP, OTP, O-PEN

Intelligent Control & Integration

1.Supports OCPP 1.6J / 2.0.1

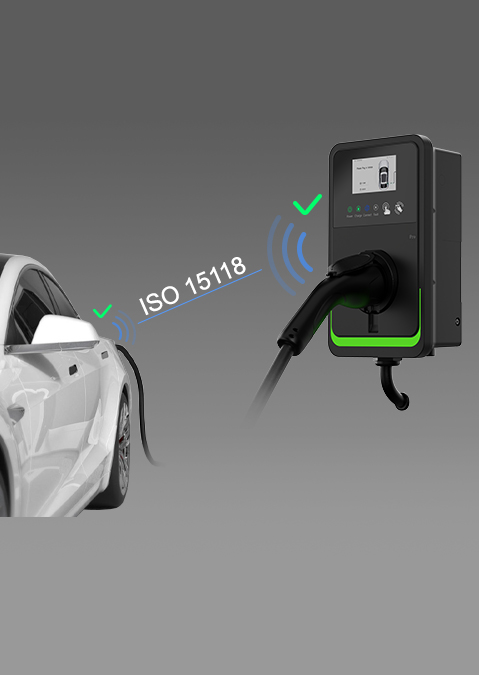

2.ISO 15118 ready for smart automation
3.Daisy-chain scalability
4.Daisy-chain scalability

Key Features OF EV charger at a Glance
Innovative Details, Premium Quality

Infrastructure-Efficient Deployment at Scale — Reduce TCO and Accelerate ROI

The UES2 system leverages a wireless mesh architecture (WiFi-HaLow) to coordinate up to 50 EV chargers per controller, eliminating the need for wired LAN, SIM cards, or trenching. This dramatically reduces the total cost of ownership (TCO) by minimizing installation time, labor costs, and long-term networking fees.

Modular Architecture for Future-Ready Expansion and Interoperability

Built with open OCPP 1.6J/2.0.1 protocols and optional ISO 15118 Plug & Charge, UES1 ensures seamless integration into existing backend systems and smooth upgrades for future EV standards. Its controller-endpoint topology allows phased deployment—adding new chargers without altering network infrastructure.

Enhanced Safety & Protection for High-Risk Environments2

Enterprise-Grade Control and Uptime Across Diverse Environments

With cloud-based centralized management, built-in diagnostics, and multi-layer protection (O-PEN, surge, fault detection, etc.), the system offers enterprise-level uptime and resilience. IP65, IK08, and UV protection guarantee reliability in harsh conditions—from open parking lots to industrial zones.

UES2WLC vs. UES2WCP – Compare Features and Performance

UES2WLC vs. UES2WCP – Compare Features and Performance

UES2WLC is the central wireless controller, managing up to 50 UES2WCP units via a Wi-Fi HaLow mesh. UES2WCP requires no separate network access and connects directly to the WLC. While UES2WLC handles network coordination and remote control, UES2WCP focuses on delivering efficient, stable EV charging. Together, they form a simplified, scalable, and cost-effective charging solution.

UES2WLC Specifications

Rated Power: 7kW, 11kW, 22kW

Voltage: 208/240V, 180 to 264 VAC

Input Connector: Direct Connection, Hardwired Optioanl

Charging Connector: Type 2

Mounting Type: Wall-mount / Pedestal-mount

Cable Length: 5m Standard, 7m Optional

Display: Segmented display

Network Interface: LAN and WiFi/BT Standard, 4G Optional

Wireless Self-organizing Network: WIFI-Halow

Protocols: OCPP 1.6J/ OCPP 2.0.1

ISO 15118: Optional

IP/IK Level: IP65/IK08

Operating Altitude: ≤2000m, No Derating

Safety Protection: RCD: TypeA+DC6mA, Ground Residual Current Monitor: BS-7671, O-PEN: BS-7671, Surge Protection: 4kV @2,000A

Protection: UVP, OVP, OCP, OTP, Control Pilot Fault Protection, Relay-sticking protection, Ground Fault Protection, O-PEN Protection

Safety Compliance: IEC61851-1, IEC61851-21-2, EN 62311, EN 62479, IEC/EN 62955

Certifications: CE, CB，UKCA

Net Weight: 6KG

Gross Weight: 7.2KG

Product Dimensions: 341W*200D*111H(mm)

Package Dimensions: 438W*373D*315H(mm)

UES2WCP Specifications
