Single Commercial AC Chargers

UN1 EV Charging Series

EV Level 2 Charging Station

Optimize Your Commercial Charging with UN1 Charger

Unlock intelligent digital display, accurate billing, and smart connectivity for seamless EV charging for businesses.

Remote O&M
Scheduler
PV Charging
Load Balancing
App
RFID
Plug & Play
OCPP
Wi-Fi
Ethernet
4G
Bluetooth

Get a Quote Spec Sheet

80 A

80A Fast Charging – 14x Faster

15 min

15 minutes hassle-free setup

60 %

reduction in standby energy consumption

3 years

3-years warranty

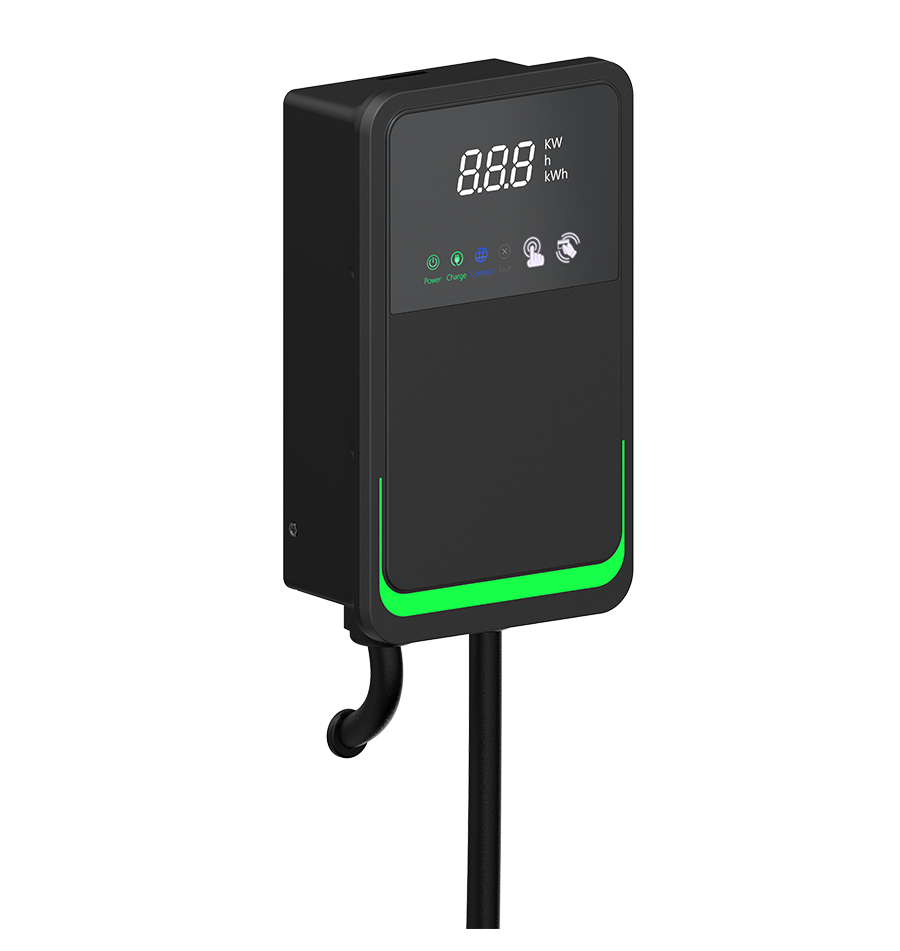

UN1 Level 2 EV Charger

Versatility

1. Rated Power:32A/40A/48A/70A/80A
2.SAE J1772 (Type 1)/ SAE J4300 (NACS)
3.Wall-mount/ Pedestal-mount
4.Cable Length: 18ft Standard, 25ft Optional

Advanced Design

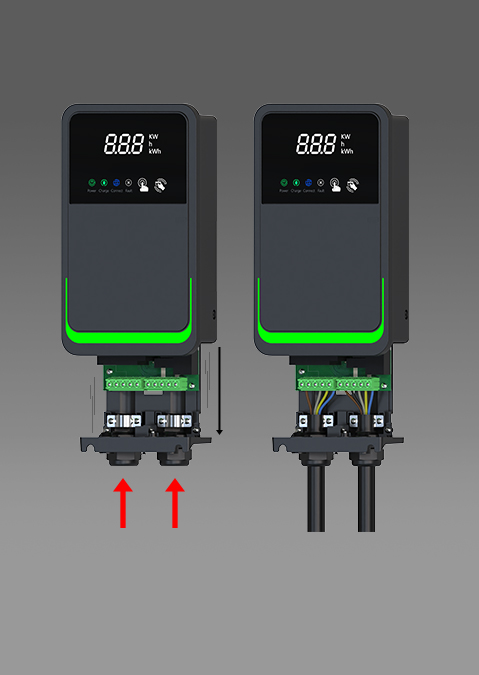

1. Drawer-style Non-disassembly Wiring Design

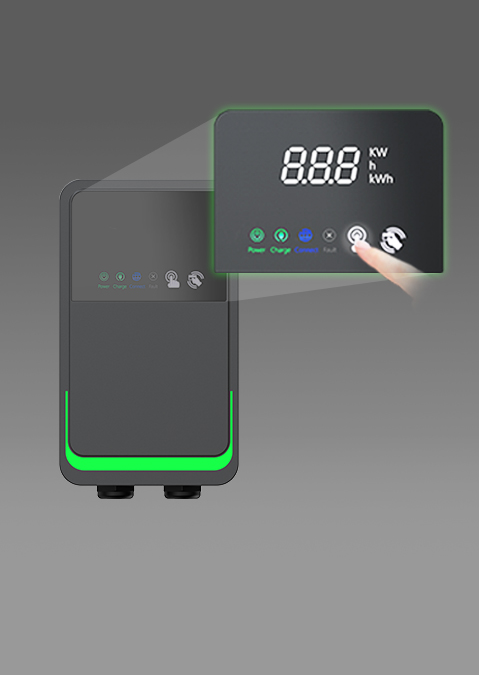

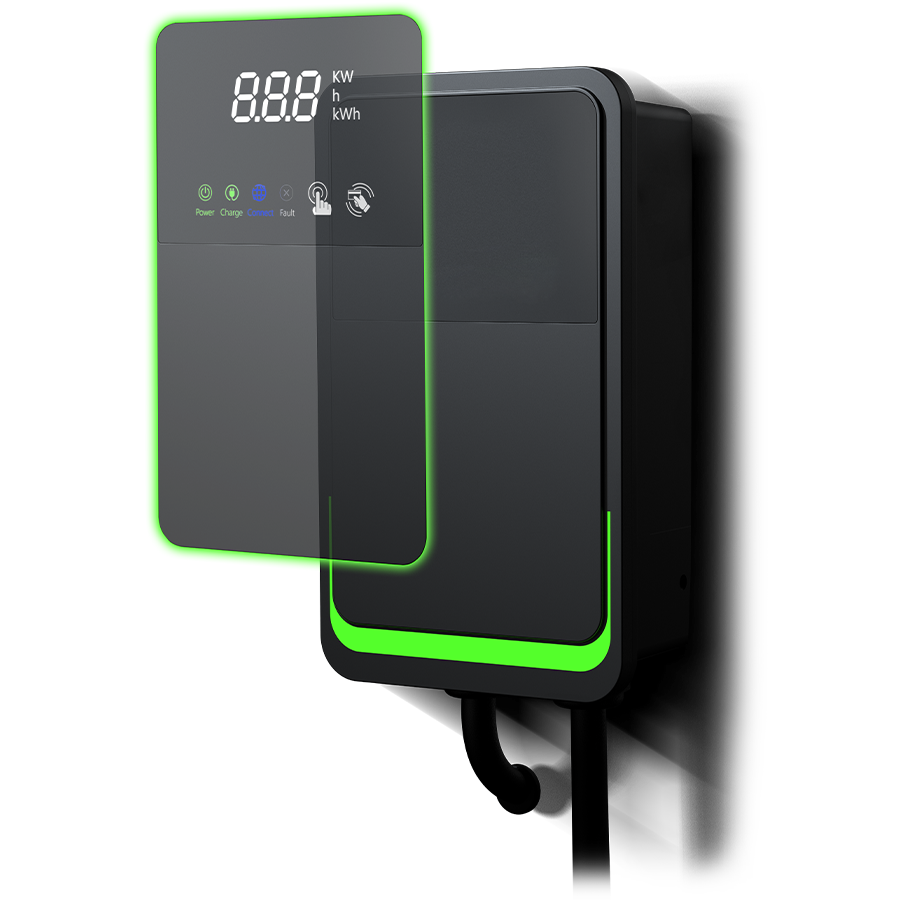

2. Dynamic Digital Display
3. Leading Wireless Self-Organizing Network for Multiple Chargers
4. SDLC(Software-Defined Light Codes)

Flexibility

1.Supports Wi-Fi, Ethernet, Bluetooth, and 4G(optional)
2.Start Mode: Plug and Play, RFID Card, Plug & Charge(optional)

High Reliability

1.Certifications: ETL, FCC, Energy Star
2. IP65/IK08, suitable for both indoor and outdoor locations
3.Flame retardant rating: UL 5V
4.ASA UV-resistant and anti-aging materials

Enhanced Safety & Durability

1.Enhanced relay arc protection
2. High-quality copper heat dissipation technology
3. Multi-layer electrical protection
4. Multi-layer 3D heat dissipation technology(80A)

Charging Management

1.OCPP 1.6J / OCPP 2.0.1
2.ISO 15118
3.CTEP
4.DLB, Daisy chain networking by RS485
5.WEB Portal configuration tool (PowerConfig)

Key Features OF EV charger at a Glance
Innovative Details, Premium Quality

Scalable and Future-Ready EV charger

As your business grows, the UN1 Commercial EV charger is designed to grow with you. Its modular design and smart connectivity allow for easy upgrades, so you won’t need to replace your entire system. It's a solution that evolves alongside your needs.

Built for Commercial Demands

This EV Charger is engineered to handle the demands of high-traffic locations. Whether it’s a busy charging station, fleet operation, or public facility, this charger delivers reliable, efficient, and safe performance day in and day out.

Cost-Effective Operations

With the UN1 EV charger, you reduce downtime and maintenance costs. Features like quick cable replacement and remote monitoring ensure your chargers stay operational, providing a better return on investment.

UN1 EV Charging Series

UN1 vs. UN1pro – Compare Features and Performance

The UN1 and UN1pro models are designed to meet different charging needs. The UN1 is a reliable, cost-effective EV charging solution for standard home and commercial use, offering robust features with OCPP 1.6J support and essential safety protections.

In contrast, the UN1pro is built for advanced commercial applications and supports optional OCPP 2.0.1, ISO 15118, and Plug & Charge. This makes the UN1pro ideal for businesses and fleets seeking smart charging capabilities and seamless, future-proof integration with modern EV networks.

UN1 Specifications

Rated Power: 32A, 40A, 48A, 70A, 80A

Voltage: 208/240V, 180 to 264 VAC

Input Connector: Direct Connection, Hardwired Optioanl

Charging Connector: SAE J1772 (Type 1) / SAE J4300 (NACS)

Mounting Type: Wall-mount / Pedestal-mount

Cable Length: 18ft (Standard), 25ft (Optional)

Display: Segmented display

Network Interface: LAN and WiFi/BT Standard, 4G Optional

Protocols: OCPP 1.6J

ISO 15118: No support

IP/IK Level: IP65/IK08

Operating Altitude: ≤2000m, No Derating

Flame Retardant Rating: UL 5V

Safety Protection: Ground Fault Detection: CCID20, Ground Monitor: UL2231, Surge Protection: 6kV @3,000A

Protection: UVP, OVP, OCP, OTP, Control Pilot Fault Protection, Relay-sticking protection, Ground Fault Protection

Safety Compliance: UL 2594 / CSA C22.2 No. 280-16, UL 2231-1 / CSA C22.2 No. 281.1-12, UL 2231-2 / CSA C22.2 No. 281.2-12

Certifications: ETL, FCC, Energy Star

Net Weight: 7KG

Gross Weight: 8.2KG

Product Dimensions: 341W*200D*111H(mm)

Package Dimensions: 438W*373D*315H(mm)

UN1pro Specifications
