UN2
Drawer-Style Wiring Design for Commercial EV Chargers
This commercial EV charger features a drawer-style wiring design that allows installers to complete cable connections without disassembling the charger enclosure. The pull-out wiring structure simplifies installation, reduces labor time, and makes maintenance, cable replacement, and hardware upgrades faster and more efficient, helping lower overall installation and operating costs.
4.3-Inch High-Resolution LCD Screen
The UN2 EV charger is equipped with a 4.3-inch high-resolution color LCD screen that displays real-time charging status and system information clearly. The interface can be customized to support different branding and information layouts, delivering an intelligent and user-friendly charging experience.

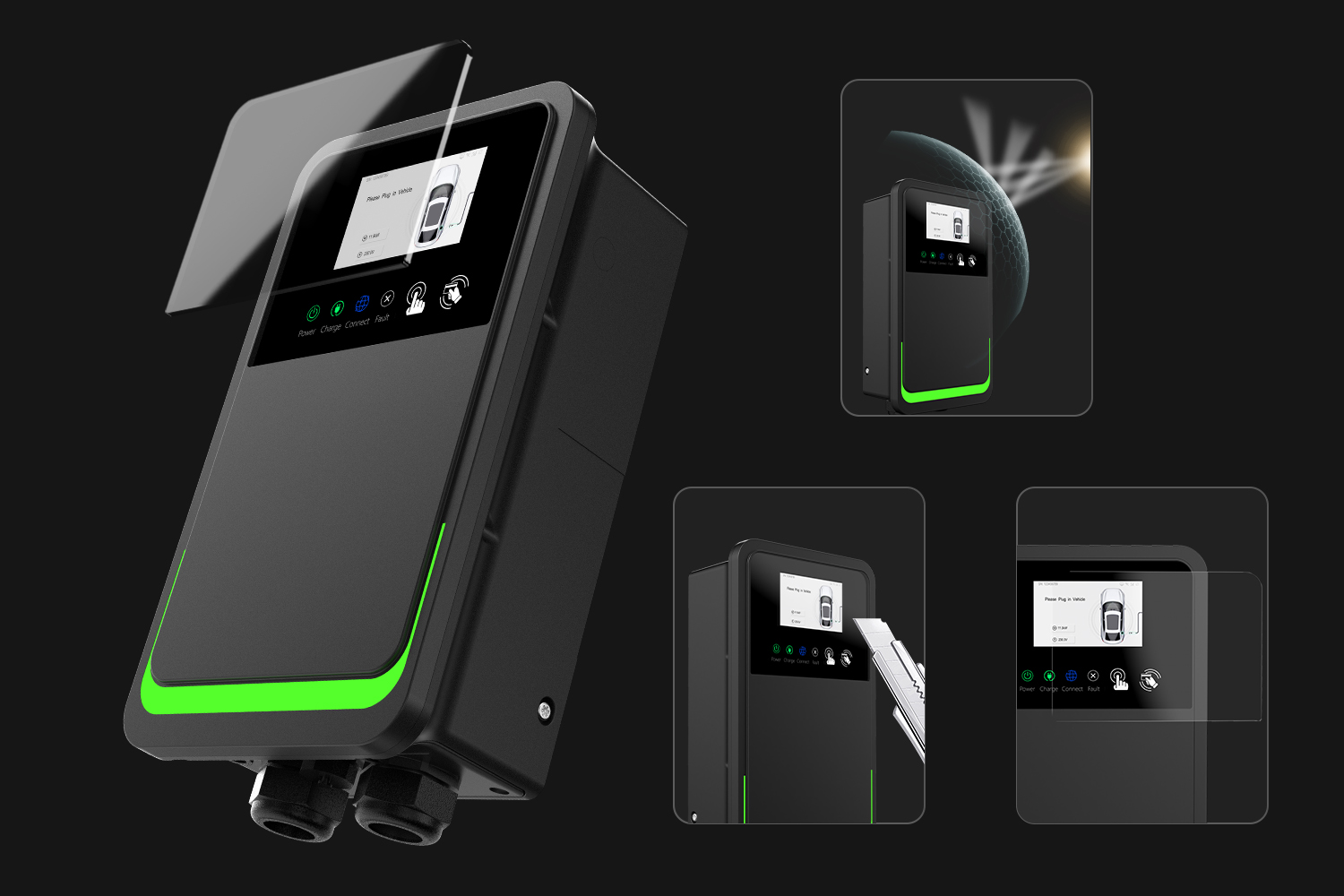

Premium Glass Panel for Premium Deployments
Designed for high-end commercial projects such as hotels, office parks, and shopping centers, the tempered glass panel delivers a clean, bright, and luxurious finish. Upgrading from ABS to glass enhances the overall material quality and visual appeal, creating a refined EV charging experience.

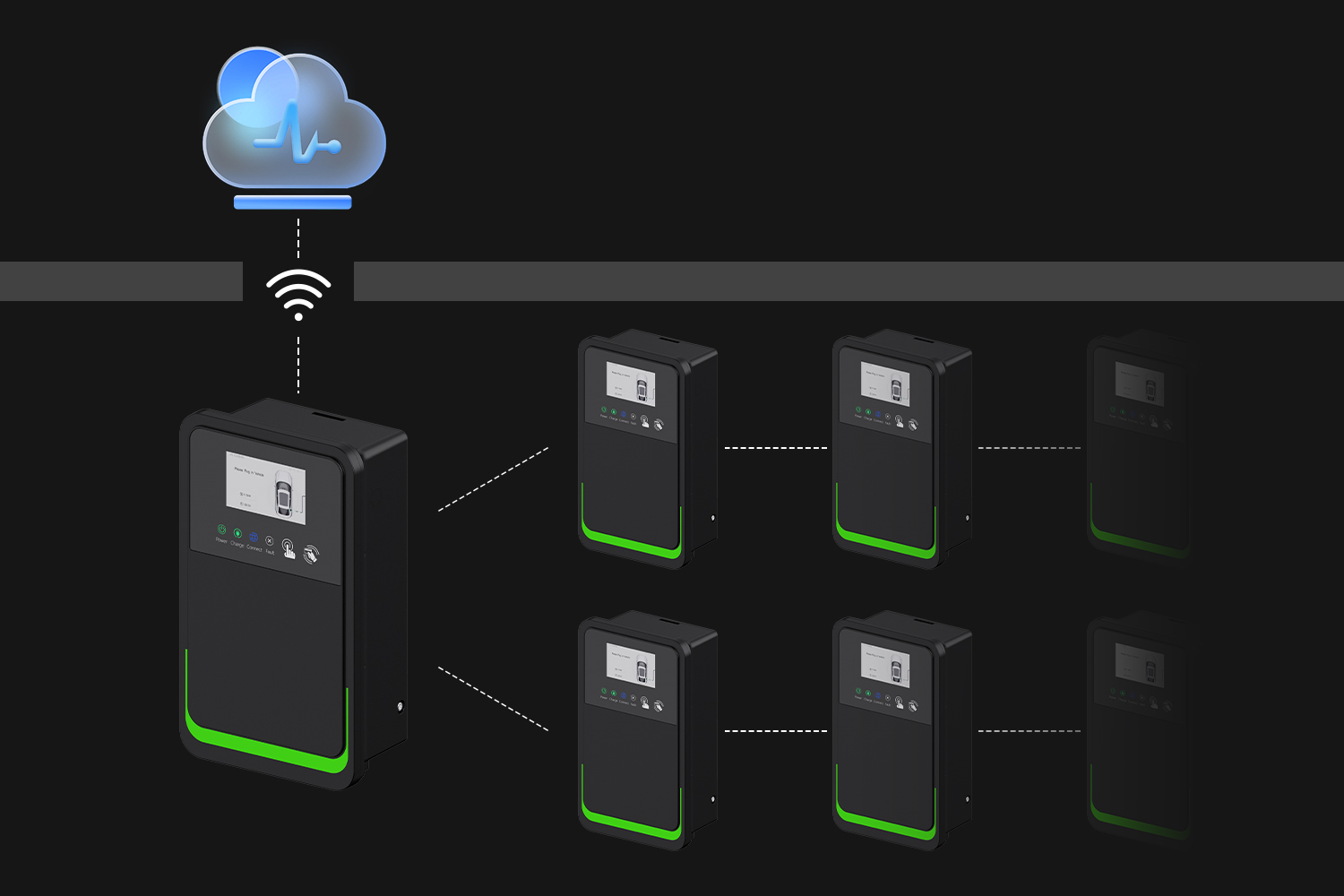

Mesh Networking for Complex Environments
Designed for commercial AC charging in challenging locations, this charger uses WiFi-HaLow mesh networking to maintain high network uptime, even in underground or poor-signal areas.
Stable connections, wide coverage, and auto-healing ensure reliable operation while reducing dependency on public networks.

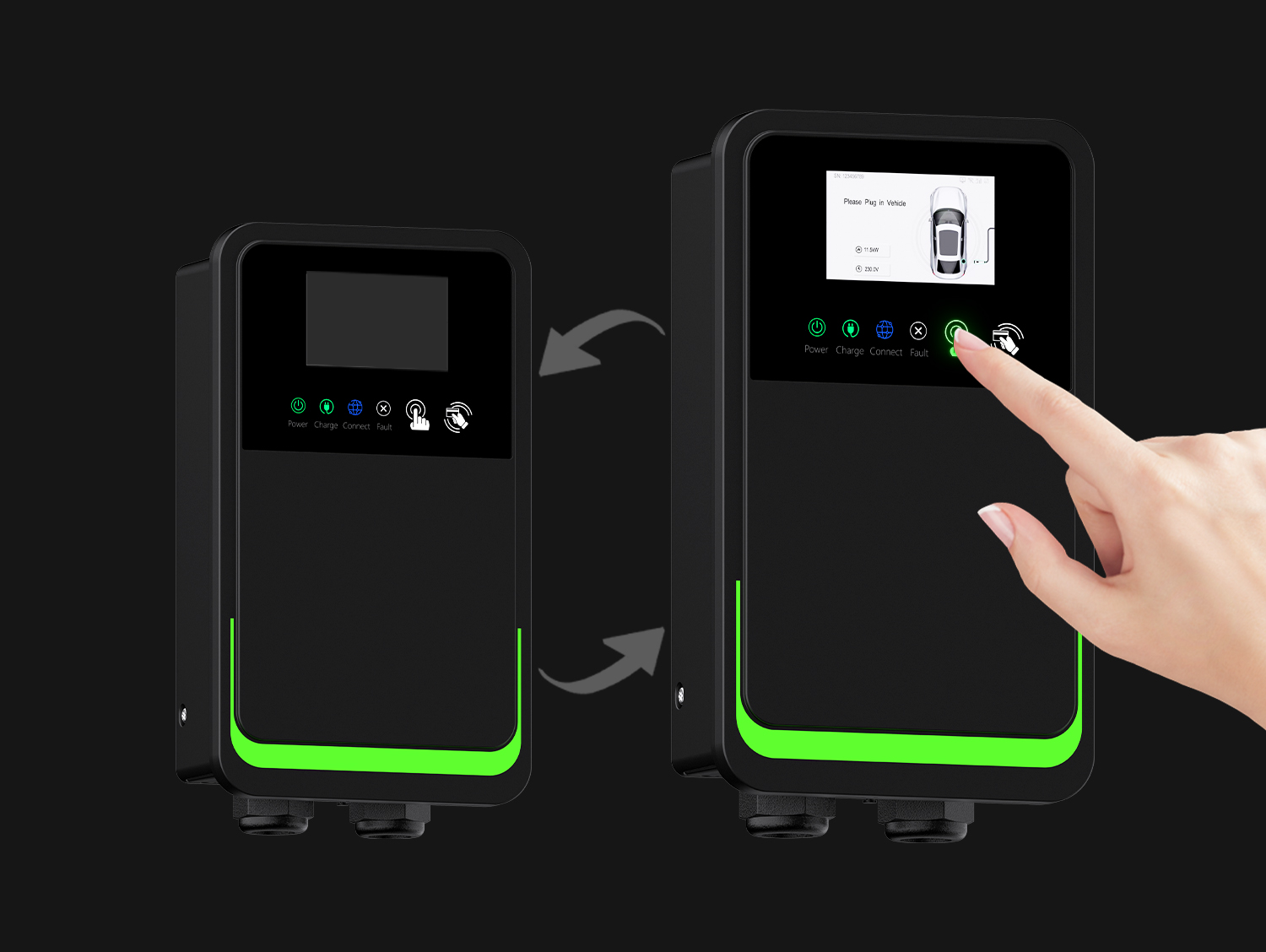

Ultra-Efficient Standby Mode
The EV charger intelligently turns off the LCD display during standby, reducing power consumption by up to 60%. Plugging in or touching a button instantly wakes the screen, extending its lifespan while saving energy and lowering operational costs.

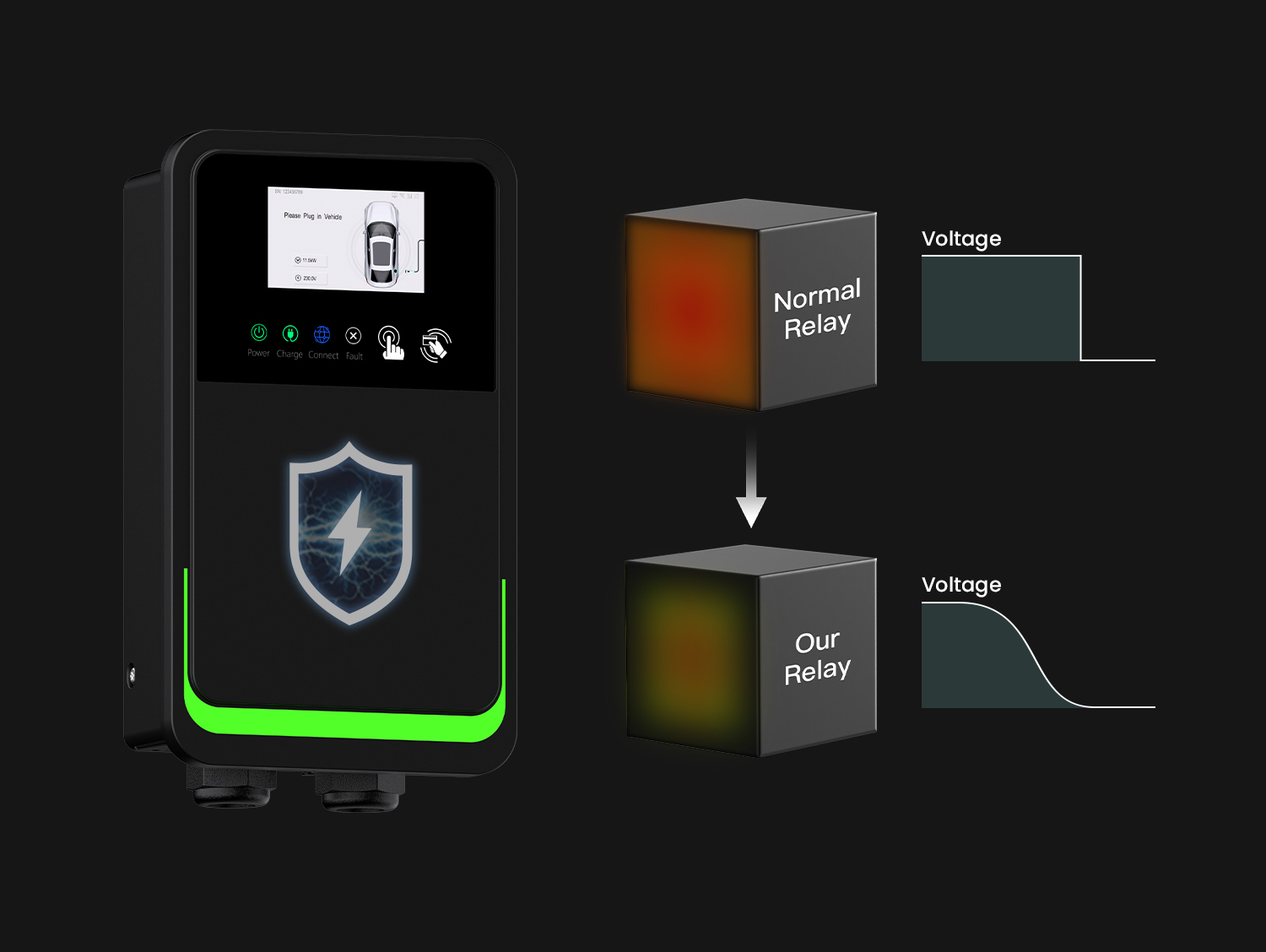

Reliable Arc Protection for Long-Term Operation
The optimized relay arc protection mechanism reduces wear caused by electrical arcing, supporting long service life and stable commercial operation.

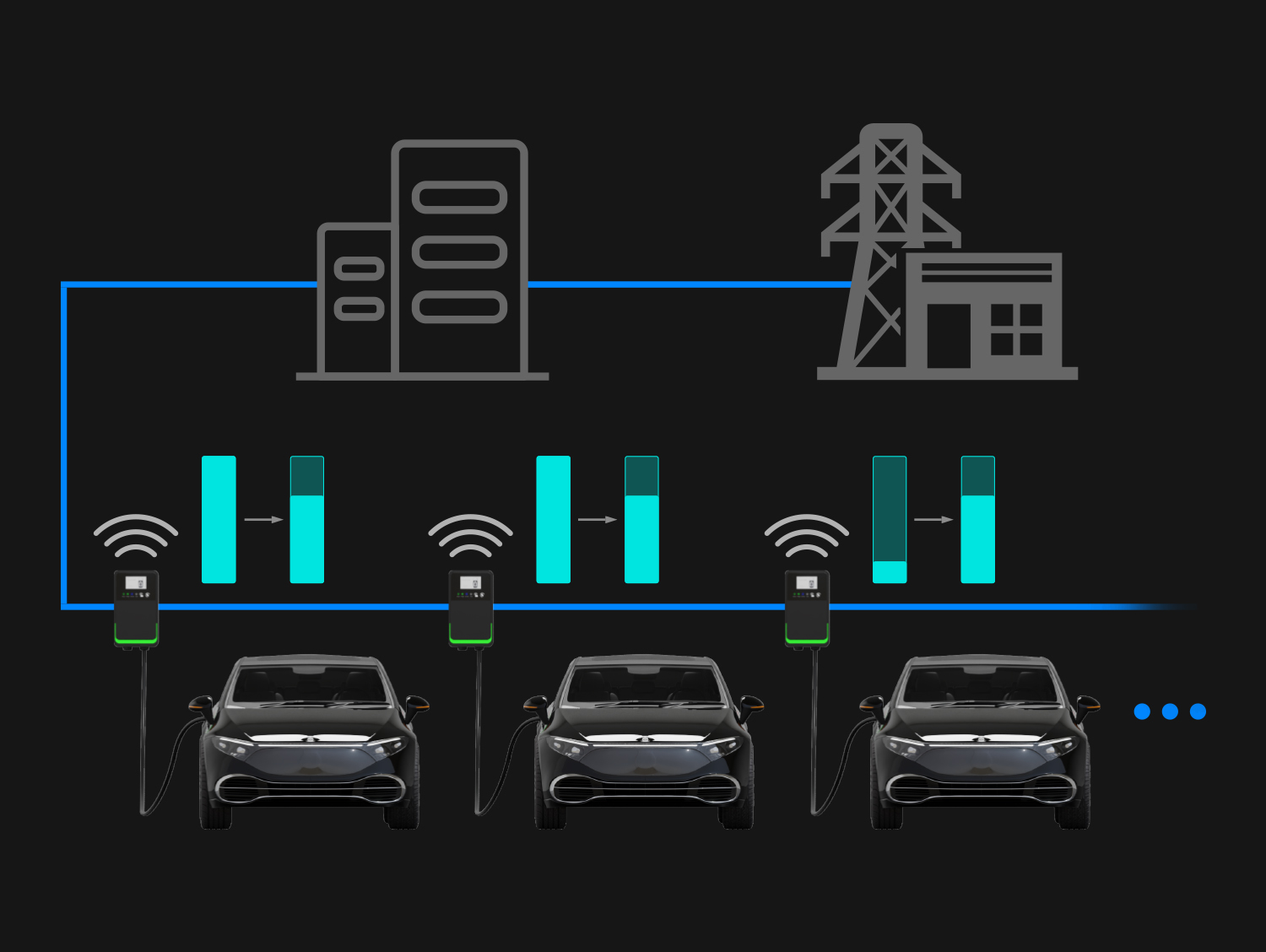

Dynamic Load Balancing for Commercial EV Charging
The charger intelligently distributes available power across multiple EV chargers in real time, preventing electrical overload while enabling safe and efficient multi-charger concurrent charging for commercial sites.
Flexible Installation & Brand Customization
Designed for diverse commercial environments, the EV charger supports both wall-mounted and pedestal installations to match different site layouts. With a retractable enclosure structure, daily maintenance and servicing are fast and efficient. Full customization of housing color, logo, and LCD interface ensures seamless alignment with your brand and property style.
Build Your Commercial EV Charging Solution with UN2
Talk to our team to customize power level, connector type, branding, and network features for your commercial project.
Contact usWHAT DO YOU WANT TO KNOWFAQ
We have made a general analysis of your questions
Our FAQ section is here to help you navigate common questions and concerns. Whether you’re looking for detailed explanations, guidance on using our products, or information about our services, this is the place to find clear, reliable answers.
-
+ -
Can it work with our existing charging management platform?
Yes. This serie supports OCPP 1.6J and can be upgraded to OCPP 2.0.1, making it compatible with most commercial charging platforms. You can remotely monitor EV chargers, manage users, set pricing, view data, and perform OTA updates through your backend system.
-
+ -
How reliable is the network connection, especially in parking garages?
The charger supports Wi-Fi, Ethernet, Bluetooth, and optional 4G, giving you flexible connectivity options.
For sites with weak signals, such as underground parking garages, it can also support wireless mesh networking, which helps maintain a stable online connection across multiple chargers without relying on a single network source. Please contact us to discuss availability and site-specific requirements. -
+ -
Can I visit your factory?
Yes. You’re welcome to visit our factory and review our production process and quality control system. Visits are appointment-based, please book your time slot with our team.
-
+ -
I'm new to EV charging. Can I still customize an EVSE?
Absolutely. You don’t need prior experience. Our team will help you confirm the specs and recommend the right solution for your project.
| Model No. | UN2-A40T |
| ELECTRICAL SPECIFICATION | |
| Input Connector | Default cable *1m, Hardwired Optional |
| Voltage | 208/240VAC |
| Amperage/Power Output | 40A/9.6KW |
| Energy Metering Accuracy | ±1% |
| Mounting Option | Wall or Pedestal mount, Pedestal Optional |
| CHARGING INTERFACE | |

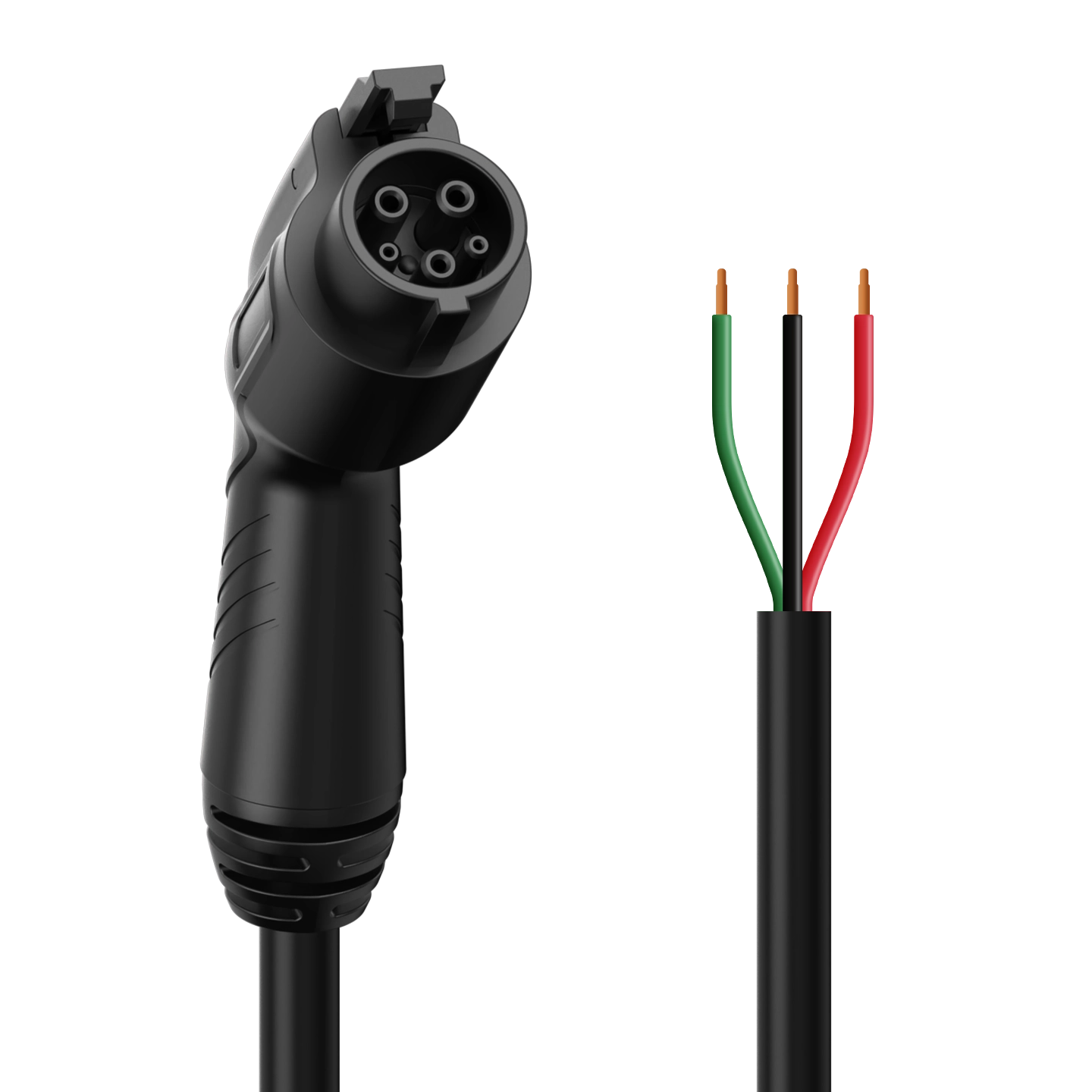

| Charging Connector | SAE J1772 Type 1 Plug |
| Charging Cable Length | 18ft Standard, 25ft Optional |
| USER INTERACTION | |
| Display | 4.3”color LCD, 480 x 272 |
| LED Status Indicator | POWER/CHARGING/CONNECT/FAULT status indication |
| Touch Button | Wake up the device from sleep |
| RFID | ISO14443 Type A&B |
| COMMUNICATION | |
| Network Interface | LAN and WiFi/BT Standard, 4G Optional |
| Charging Protocol | OCPP1.6J/OCPP2.0.1 |
| ISO15118 | Optional |
| Extend | RS485*1 Standard,RS485*2 Optional |
| Config Tool | Web Portal over LAN or WiFi |
| SAFETY & COMPLIANCE | |
| Ground Fault Detection | CCID20 |
| Surge Protection | 6kV @3,000A |
| Protection | UVP(UnderVoltage), OVP(OverVoltage), OCP(OverCurrent), OTP(OverTemp), Control Pilot Fault Protection, Relay-sticking protection, Ground Fault Protection |
| Safety Compliance | UL 2594 / CSA C22.2 No. 280-16,UL 2231-1 / CSA C22.2 No. 281.1-12,UL 2231-2 / CSA C22.2 No. 281.2-12 |
| Certification | ETL/FCC/EnergyStar |
| ENVIRONMENTAL | |
| Operating Temperature | -22°F to 131°F (-30°C to 55°C) |
| Operating Humidity | 5%~95% RH, Non-condensing |
| Operating Altitude | ≤2000m, No Derating |
| Enclosure Rating | NEMA 3（IP65） |
| SPECIFICATION | |
| Net Weight | 5.2kg |
| Gross Weight | 6.9kg |
| Product Dimensions | 341W*200D*111H(mm) |
| Package Dimensions | 438W*373D*315H(mm) |
request a quote now
- Multiple charging levels available
- Compatible with most EVs
- Scalable for all types of businesses
- State-of-the-art safety features
