Single Commercial AC Chargers

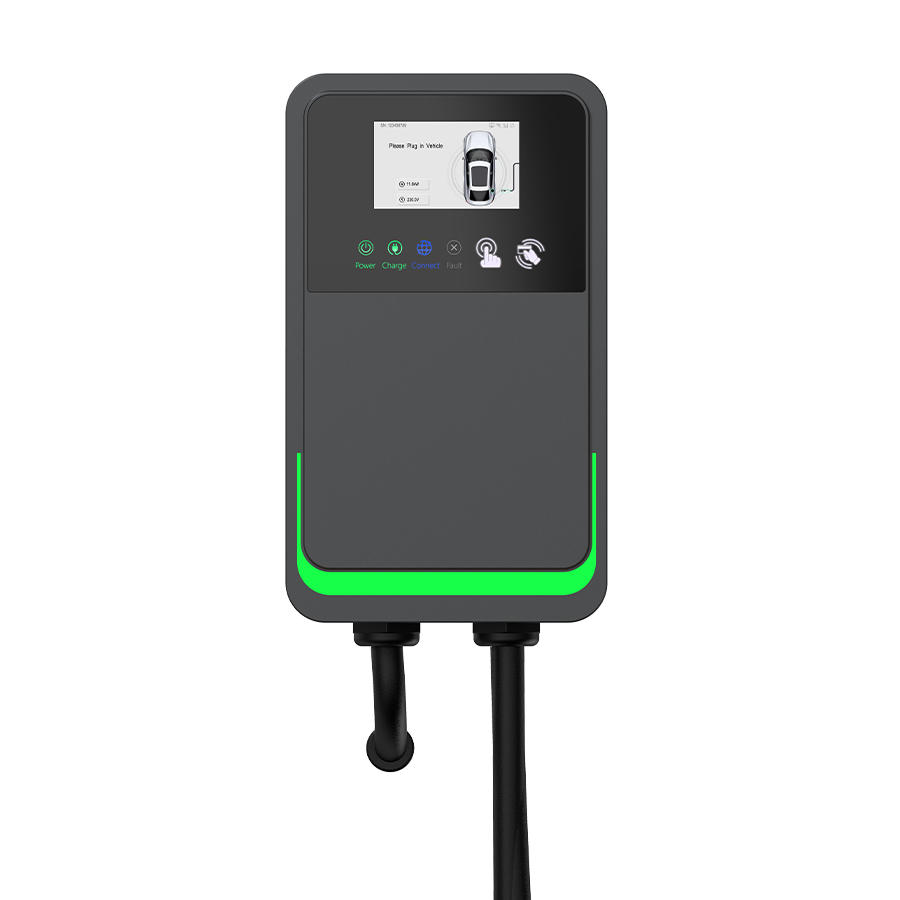

UN2 Customized Sae J1772 80 amp Business EV Charging Station

UN2 Commercial EV Charging Series

Level 2 Charging Station

Elevate Your Commercial Charging Experience with UN2

Unlock ultra-low standby power LCD display, cluster-wide load balancing, accurate billing, and smart connectivity—engineered to elevate your commercial EV charging experience.

Remote O&M
Load Balancing
RFID
Plug & Play
OCPP
Wi-Fi
Ethernet
4G
Bluetooth

Get a Quote Spec Sheet

80 A

Fast Charging – 14x Faster

4.3 inch

High-Resolution LCD Screen

60 %

reduction in standby energy consumption

3 Years

3-years warranty

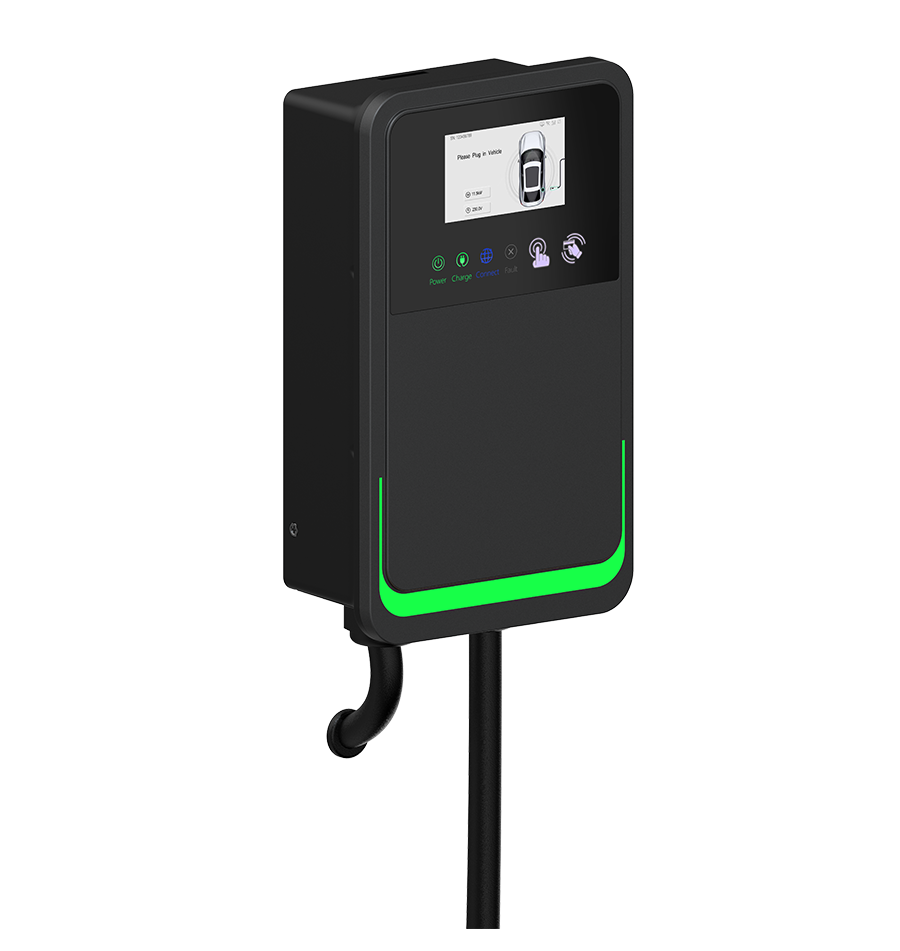

UN2 Level 2 EV Charger

Versatility

1.Selectable Output: 32A / 40A / 48A / 70A / 80A
2.Connector Types: Type 1/ NACS 3.Flexible Installation: Wall-mounted or Pedestal-mounted
4.Charging Cable: 18ft Standard, 25ft Optional

Future-ready Design

1. Drawer-style Wiring Design- no disassembly required
2. 4.3-inch High-Resolution LCD Screen
3. Ultra-low standby power with auto screen-off
4. Leading Wireless Self-Organizing Network for Multiple Chargers
5. Dynamic Load Balancing for Charger Networks

Flexibility

1.Wi-Fi, Ethernet, Bluetooth, and 4G (optional)
2.Multiple start modes: Plug & Play, RFID Card,APP or Plug & Charge (optional)

High Reliability

1.Certified: ETL, FCC, Energy Star

2.IP65 & IK08 – durable for indoor and outdoor use

3.Flame-retardant housing: UL 5V rated

4.ASA-grade UV-resistant

Safety and Endurance

1.Advanced relay arc suppression for long-term reliability

2.High-precision copper-based thermal dissipation

3.Multi-layered electrical protection system

4.3D multi-directional heat dissipation (80A)

Intelligent Charging Control

1.Supports OCPP 1.6J & OCPP 2.0.1

2.ISO 15118 compatibility for Plug & Charge

3.CTEP for precise energy metering

4.DLB daisy-chain networking

5.Web portal access for remote setup via PowerConfig

Key Features OF EV charger at a Glance
Innovative Details, Premium Quality

White-label Ready EV Chargers for Distributors

Grow your EV business with customizable charging solutions. Our OEM/ODM-ready chargers support private labeling, quick deployment, and easy system integration.

Maximize Efficiency and Cost Savings with Our Charging Solutions

Our EV chargers are designed for cost-efficiency, featuring ultra-low standby power and an easy-maintenance drawer-style wiring system. Durable glass panels ensure long-term reliability and a premium appearance, making them the perfect solution for businesses seeking both performance and value.

Future-Ready Charging Solutions

Our EV chargers, equipped with optional OCPP 2.0.1 and ISO 15118 support, are designed to seamlessly integrate with evolving EV infrastructure. Offering wireless self-organizing networks and flexible connectivity options, they provide scalable and reliable solutions, ready to meet the future demands of electric vehicle charging.

UN2 vs. UN2pro – Compare Features and Performance

The UN2 is a cost-effective, reliable solution for residential and commercial use, featuring OCPP 1.6J support and essential safety features. The UN2pro, designed for advanced commercial needs, offers optional OCPP 2.0.1, ISO 15118, and Plug & Charge, making it ideal for businesses and fleet operators seeking future-ready, smart charging solutions.

UN2 Specifications

Rated Power: 32A, 40A, 48A, 70A, 80A

Voltage: 208/240V, 180 to 264 VAC

Input Connector: Direct Connection, Hardwired Optioanl

Charging Connector: SAE J1772 (Type 1) / SAE J4300 (NACS)

Mounting Type: Wall-mount / Pedestal-mount

Cable Length: 18ft (Standard), 25ft (Optional)

Display: 4.3”color LCD, 480 x 272

Network Interface: LAN and WiFi/BT Standard, 4G Optional

Protocols: OCPP 1.6J

ISO 15118: No support

IP/IK Level: IP65/IK08

Operating Altitude: ≤2000m, No Derating

Flame Retardant Rating: UL 5V

Safety Protection: Ground Fault Detection: CCID20, Ground Monitor: UL2231, Surge Protection: 6kV @3,000A

Protection: UVP, OVP, OCP, OTP, Control Pilot Fault Protection, Relay-sticking protection, Ground Fault Protection

Safety Compliance: UL 2594 / CSA C22.2 No. 280-16, UL 2231-1 / CSA C22.2 No. 281.1-12, UL 2231-2 / CSA C22.2 No. 281.2-12

Certifications: ETL, FCC, Energy Star

Net Weight: 7KG

Gross Weight: 8.2KG

Product Dimensions: 341W*200D*111H(mm)

Package Dimensions: 438W*373D*315H(mm)

UN2pro Specifications
