Wireless Self-Networking Commercial AC Chargers

UN2 Customized Sae J1772 80 amp Business EV Charging Station

UN2 Wireless Networking Series

EV Charger Level 2

A Scalable Wireless EV Charging Solution for Smarter Networks

Leverage the centralized control of UN2WLC and the pre-networked, factory-configured design of UN2WCP to build a flexible, low-maintenance wireless EV charging network—perfect for large-scale rollouts with minimal on-site setup.

Remote O&M
Load Balancing
RFID
Plug & Play
OCPP
Wi-Fi
Ethernet
4G
Bluetooth

Get a Quote Spec Sheet

50:1

Control Ratio

0

SIM & Wiring for UN2WCP

80 %

Lower Network Deployment Cost

4.3

inch High-Resolution LCD Screen

UN2 Scalable Wireless EV Charging Station

Versatility

1. Selectable Output: 48A / 80A
2.Connector: SAE J1772 (Type 1) / SAE J4300 (NACS)
3.Mounting: Wall or Pedestal
4.Cable: 18ft (Standard), 25ft (Optional)

Future-Ready Design

1. Future-Ready Design
2. 4.3" high-resolution LCD screen
3. Auto screen-off for ultra-low standby power
4. Built-in Wi-Fi HaLow mesh networking
5. Dynamic Load Balancing (DLB)

Connectivity Options

1.Connectivity Options: LAN, WIFI, Bluetooth, 4G optional
2.Multiple start modes: Plug & Play, RFID, Plug & Charge

Durability & Safety

1.IP65 & IK08 rated – indoor/outdoor ready
2. Flame-retardant (UL 5V), ASA-grade UV-resistant
3.Advanced relay arc suppression
4.Ground fault & surge protection

Smart Charging Control

1.Supports OCPP 1.6J & 2.0.1

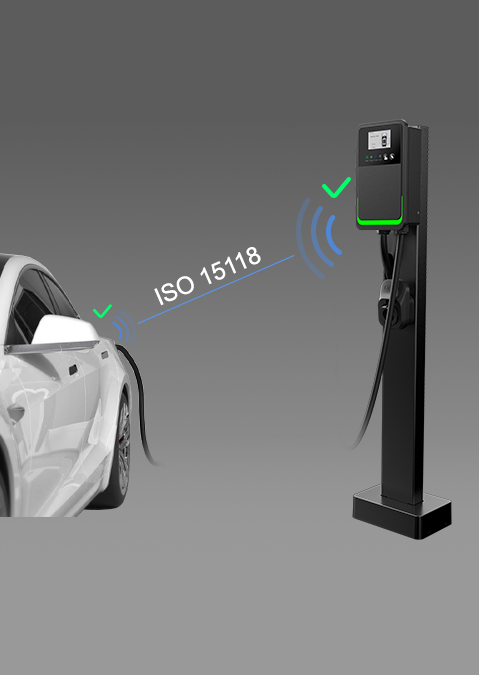

2. ISO15118 ready for Plug & Charge
3. CTEP-certified energy metering
4. Remote config via web portal (PowerConfig)

Commercial Reliability

1.UL 2594 / FCC / ETL / Energy Star certified
2.Wide operating range: 180–264VAC
3.Max load balancing efficiency
4.Designed for heavy-duty 24/7 use

Key Features OF EV charger at a Glance
Innovative Details, Premium Quality

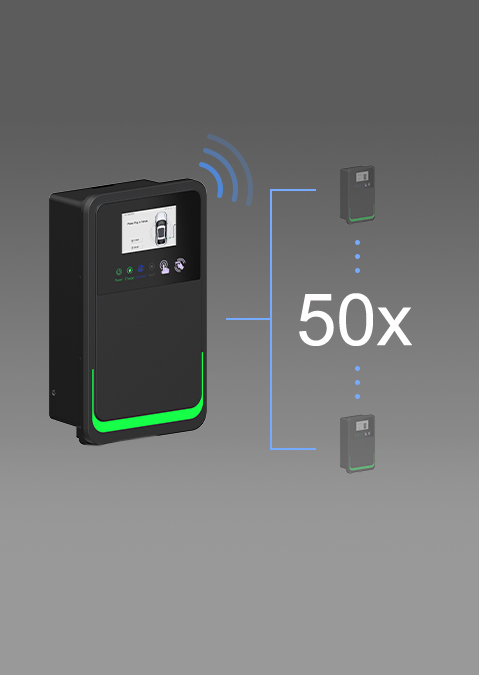

Leading Wireless Self-Organizing Network for Multiple Chargers

Lower CAPEX and Faster ROI

By eliminating the need for individual network modules (SIM cards, routers, or wired Ethernet), the UN2WLC + UN2WCP system significantly reduces infrastructure and labor costs. This not only lowers the upfront capital expenditure but also shortens the return-on-investment cycle—ideal for operators deploying 10, 50, or 100+ chargers at once.

Scalable, Flexible Deployment Across Complex Sites

Thanks to the wireless self-organizing network (based on Wi-Fi HaLow), this system thrives in underground parking, large commercial zones, and remote locations with poor signal. As a result, it simplifies scaling across malls, residential blocks, or retrofits in older infrastructures where traditional networking is a hurdle.

Future-Proofed by Protocol and Software Compatibility

With full support for OCPP 1.6J, OCPP 2.0.1, and ISO15118, plus remote firmware management and plug-and-play deployment, this solution is ready for smart charging programs, load balancing systems, and next-gen grid integrations—providing a long-term platform for evolving energy landscapes.

UN1 EV Charging Series

UN2WLC vs. UN2WCP – Compare Features and Performance

UN2WLC functions as the central coordinator of the system, offering unified control and network access for up to 50 UN2WCP units. In contrast, UN2WCP units are edge devices designed to operate without individual 4G or Ethernet connections—they connect effortlessly to UN2WLC through a self-forming wireless mesh network based on Wi-Fi HaLow. While UN2WLC handles tasks like real-time monitoring, remote updates, and power distribution, UN2WCP focuses on delivering reliable, user-facing EV charging experiences. Thanks to the plug-and-play design of UN2WCP, installation is quick and scalable, making it ideal for parking lots, residential complexes, or retrofitting older infrastructures. The combination of UN2WLC and UN2WCP provides a cost-effective and stable wireless charging solution, especially in environments where traditional networking is challenging.

UN2WLC Specifications

Rated Power: 48A, 80A

Voltage: 208/240V, 180 to 264 VAC

Input Connector: Hardwired

Charging Connector: SAE J1772 (Type 1) / SAE J4300 (NACS)

Mounting Type: Wall-mount / Pedestal-mount

Cable Length: 18ft (Standard), 25ft (Optional)

Display: 4.3”color LCD, 480 x 272

Network Interface: LAN and WiFi/BT Standard, 4G Optional

Wireless Self-organizing Network: WIFI-Halow

Protocols: OCPP 1.6J /OCPP 2.0.1

ISO 15118: Optional(support ISO15118 EIM, Plug & Charge)

RS485: 2*RS485

Config Tool: Web Portal over LAN or WiFi

Debug Tool: SSH over LAN

IP/IK Level: IP65/IK08

Operating Altitude: ≤2000m, No Derating

Safety Protection: Ground Fault Detection: CCID20, Ground Monitor: UL2231, Surge Protection: 6kV @3,000A

Protection: UVP, OVP, OCP, OTP, Control Pilot Fault Protection, Relay-sticking protection, Ground Fault Protection

Safety Compliance: UL 2594 / CSA C22.2 No. 280-16, UL 2231-1 / CSA C22.2 No. 281.1-12, UL 2231-2 / CSA C22.2 No. 281.2-12

Certifications: ETL, FCC, Energy Star

Net Weight: 7KG

Gross Weight: 8.2KG

Product Dimensions: 341W*200D*111H(mm)

Package Dimensions: 438W*373D*315H(mm)

UN2WCP Specifications
