AC Home Chargers

UNR1 Residential EV Charging Series

EV Charger Home NACS

Smart and Customizable Home EV Charging

Smart, durable, and fully customizable EV charger for residential use with NACS and Type 1 compatibility.

Remote O&M
Scheduler
PV Charging
Load Balancing
App
RFID
Plug & Play
OCPP
Wi-Fi
Bluetooth

Get a Quote Spec Sheet

30%

Stronger Wi-Fi Signal

2 Types

Type 1 & NACS Compatible

66 Rated

IP66 Rated for Outdoor Durability

25ft

Standard Charging Cable

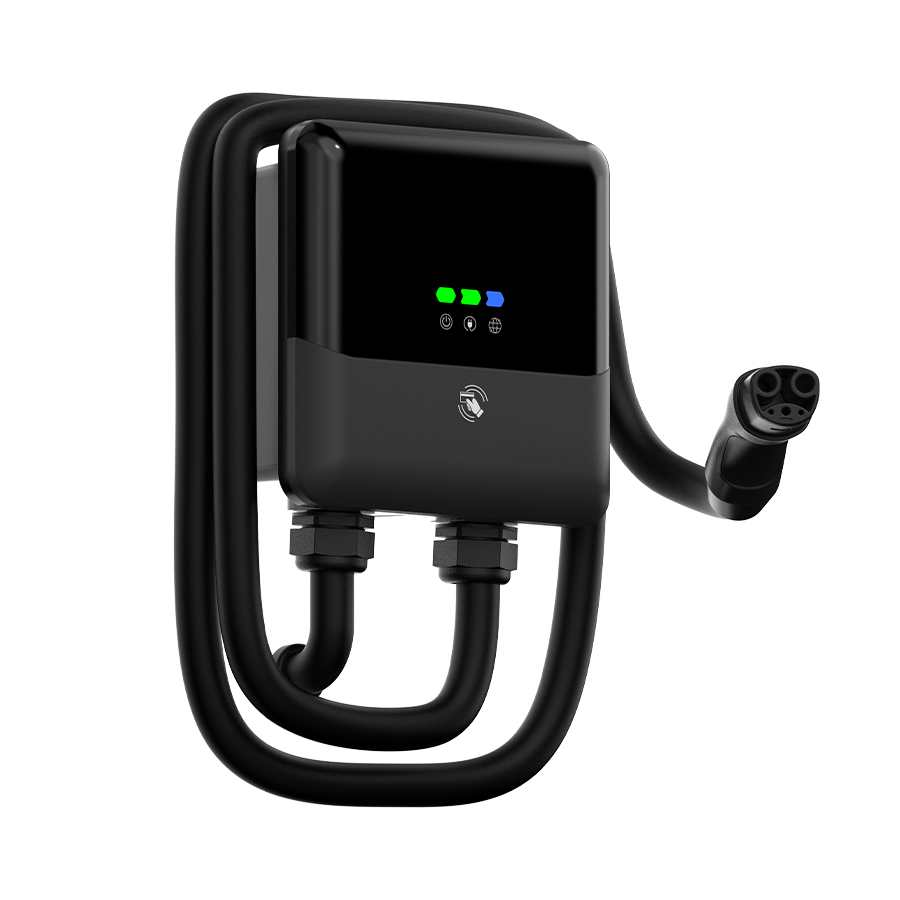

UNR1 NACS Smart Home EV Charger

Versatility

Power Flexibility: Choose between 40A or 48A

Connector Types: NACS,Type 1 Optional

Flexible Installation: Wall-mounted or Pedestal-mounted

Charging Cable: 25ft Standard

Connection: Plug-in (40A) or hardwired

Enhanced Design

Improved Wi-Fi Antenna for stronger connectivity

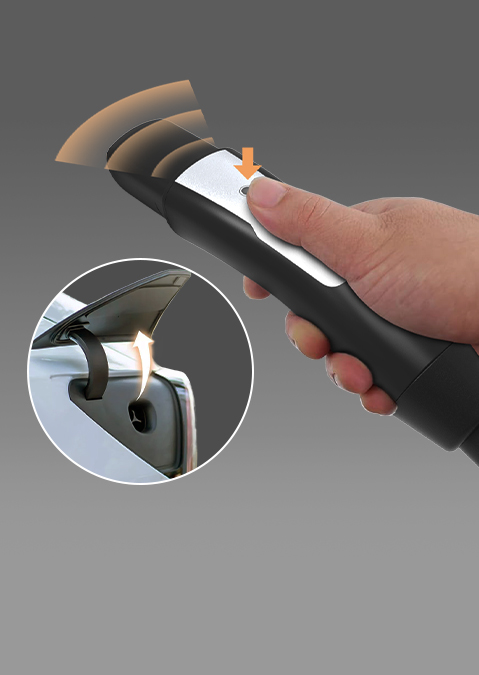

One-touch open and release design

Dual compatibility with Type 1 & NACS

Flexibility

Customizable: White-label charger, app, and platform

Connectivity: Wi-Fi, RS485, Bluetooth,

Start Modes: Plug & Play, RFID, or app

High Reliability

Certifications: FCC, ETL, ENERGY Star

Protection: IP66 & IK10 rated for high durability

Safety and Endurance

Multiple Protection Layers

Copper-based Thermal Dissipation: Efficient heat management

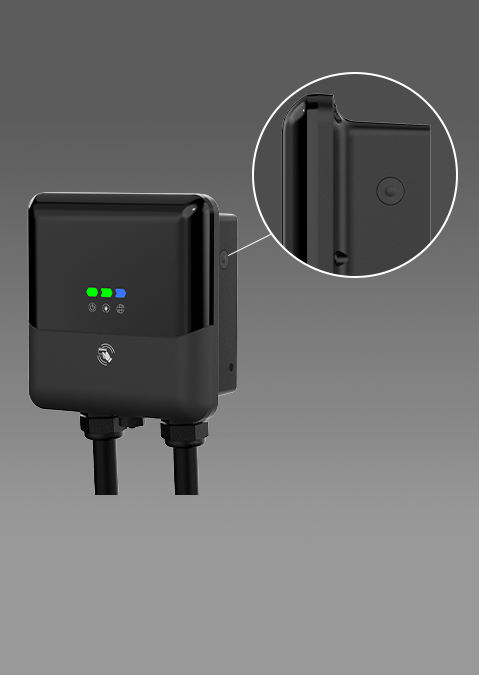

Simple troubleshooting with a quick reset button

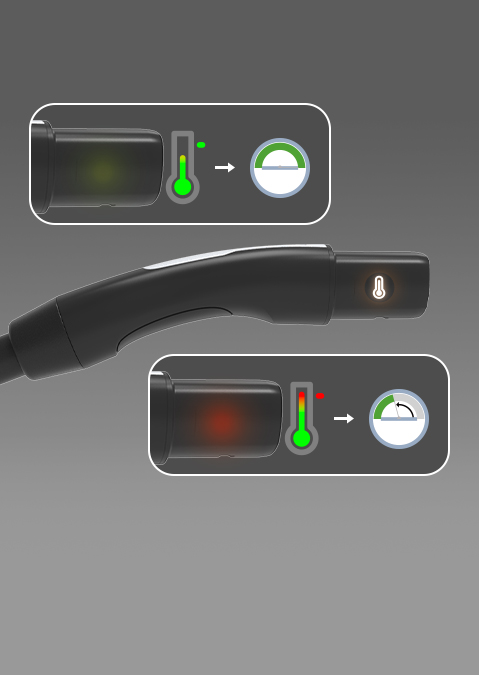

Gunhead Temperature Sensing

Smart Connectivity

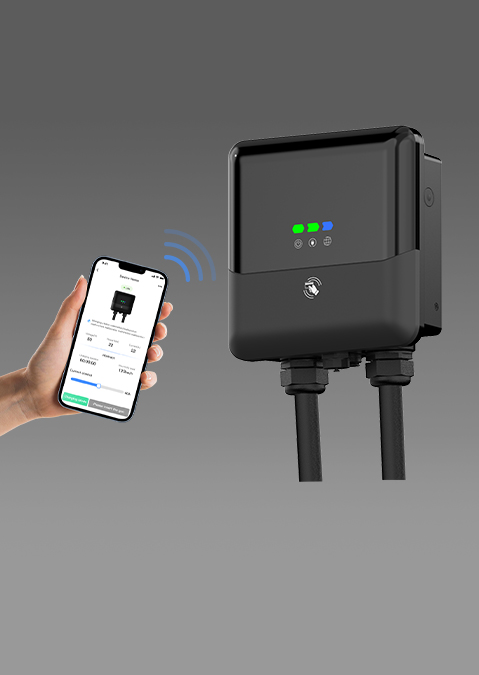

Smart APP via WlFl or Bluetooth

OCPP 1.6J Supported for flexible charging management

RS485 & CT-clamp(Pro version): load balancing and PV charging

Remote Setup: Web-based via PowerConfig

Key Features OF EV charger at a Glance
Innovative Details, Premium Quality

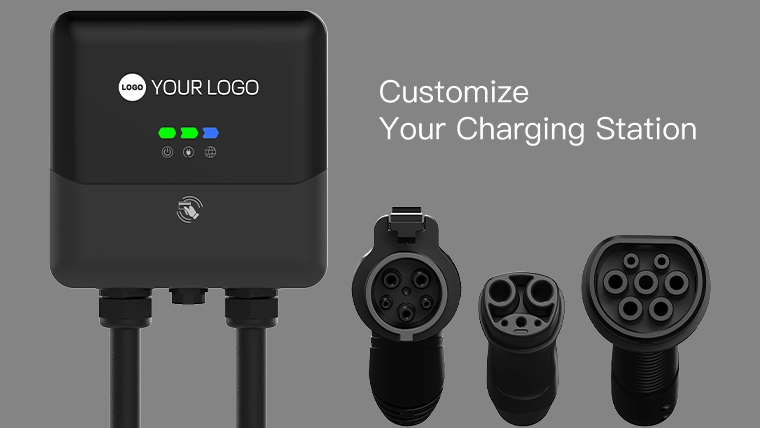

Versatility & Customization for Brand Partners

The UNR1 Residential EV Charger offers flexible customization options for brand partners. It supports white-labeling of the charger, app, and platform, allowing businesses to tailor the product to their brand identity. The charger is also compatible with Type 1 and NACS connectors, providing the flexibility to cater to different market needs.

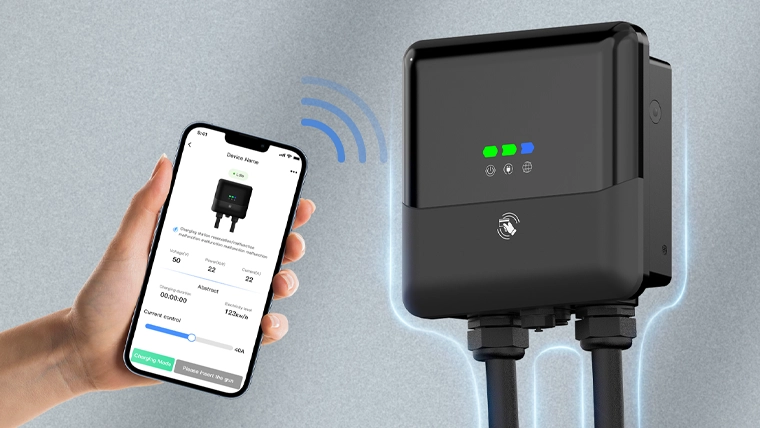

Smarter Charging Experience & Stronger Market Competitiveness

With a 30% stronger Wi-Fi signal, plus support for Bluetooth, LAN, and RS485, the UNR1 ensures stable and flexible connectivity in all environments. It supports OCPP 1.6J, enabling seamless integration with existing platforms. Remote setup via PowerConfig and user control through a smart app allow sales partners to offer a fully connected, user-friendly experience.

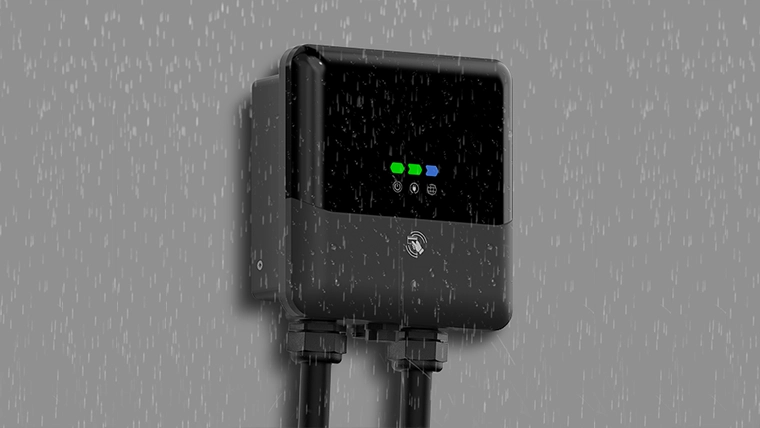

Reliable and Safe EV Charging for Outdoor Use

Built for outdoor reliability with IP66 waterproof and IK10 impact resistance, the UNR1 is also ETL, FCC, and ENERGY STAR certified. Features like a 25ft charging cable, one-touch open design, quick reset button, and temperature sensing protection make installation, usage, and maintenance simple—reducing after-sales efforts and increasing customer satisfaction.

UNR1 vs. UNR1Pro – Key Differences

Network Connectivity: The UNR1 supports WiFi/BT for basic network connections, while the UNR1Pro adds the option for LAN connectivity, providing a more stable connection, especially suited for commercial use.

Expandability: The UNR1Pro offers RS485 and CT-clamp options, allowing for more flexible setup and integration in larger commercial systems. The UNR1 does not have these expansion options.

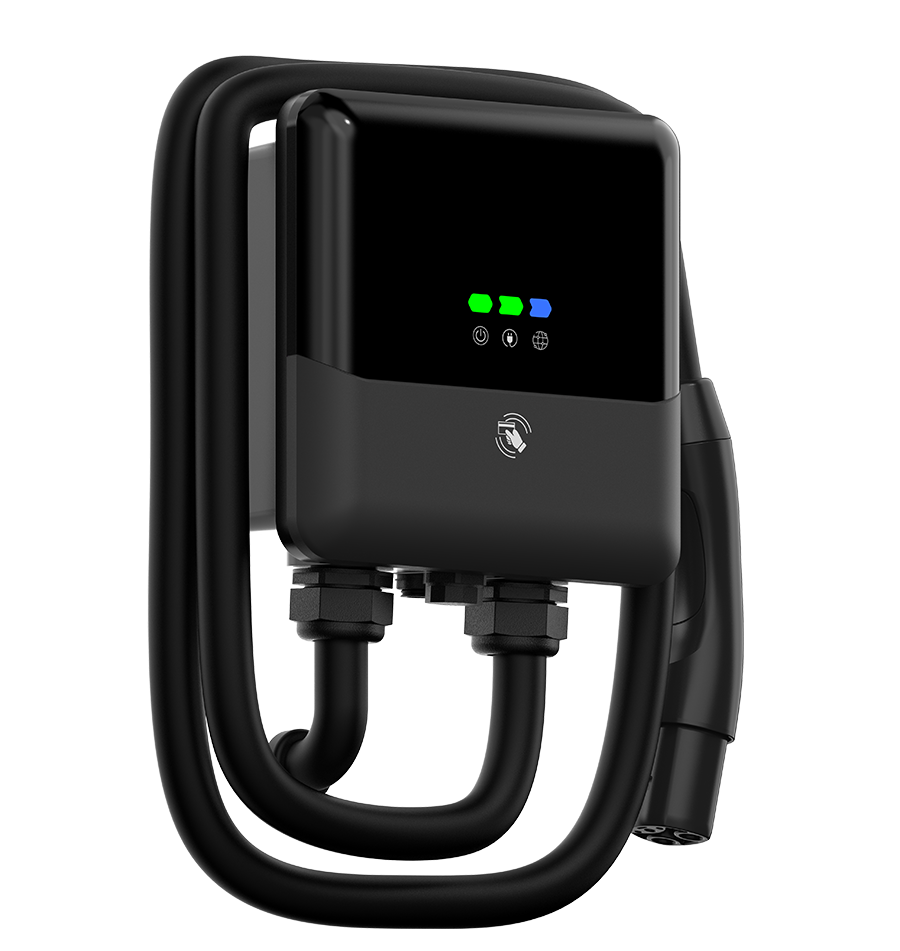

UNR1 NACS Specifications

Rated Power: 40A, 48A

Voltage: 208/240V, 180 to 264 VAC

Input Connector: 40A Version: MEMA 14-50, Hardwired Optioanl; 48A Version: Hardwired

Charging Connector: SAE J4300 (NACS), SAE J1772 (Type 1) Optional

Mounting Type: Wall-mount / Pedestal-mount

Cable Length: 25ft

Remote control: U-Charger APP

Network Interface: WiFi/BT Standard

Protocols: OCPP 1.6J

Extend:Without

IP/IK Level: IP66/IK10

Operating Altitude: ≤2000m, No Derating

Safety Protection: Ground Fault Detection: CCID20, Ground Monitor: UL2231, Surge Protection: 6kV @3,000A

Protection: UVP, OVP, OCP, OTP, Control Pilot Fault Protection, Relay-sticking protection, Ground Fault Protection

Safety Compliance: UL 2594 / CSA C22.2 No. 280-16, UL 2231-1 / CSA C22.2 No. 281.1-12, UL 2231-2 / CSA C22.2 No. 281.2-12

Certifications: ETL, FCC, Energy Star

Net Weight: 6.5KG/7.4KG

Gross Weight: 9.9KG/10.8KG

Product Dimensions: 341W*200D*111H(mm)

Package Dimensions: 395W*375D*295H(mm)
