AC Home Chargers

UNR1 Smart Home EV Charger with Type 1 Plug

UNR1 Residential EV Charging Series

Home EV Charger Type 1

Versatile EV Charger with Smart Connectivity

A flexible 40A/48A charger featuring dual connector support(Type 1 or NACS), smart app control, and multiple installation options—ideal for both home use.

Remote O&M
Scheduler
PV Charging
Load Balancing
App
RFID
Plug & Play
OCPP
Wi-Fi
Bluetooth

Get a Quote Spec Sheet

48 A

Max Output – Fast, efficient charging

2 Choices

Type 1 or NACS Connector

25 ft

Standard Charging Cable

30 %

Stronger Wi-Fi Signal

UNR1 Type 1 Home Charging Point

Versatility

1. Selectable Output with 40A or 48A options

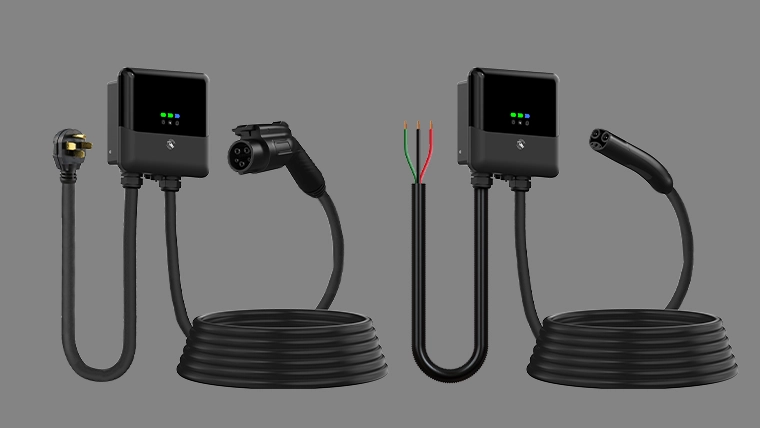

2.Compatible with Type 1 and optional NACS connectors
3.Flexible mounting with wall or pedestal installation
4.Equipped with a standard 25ft charging cable

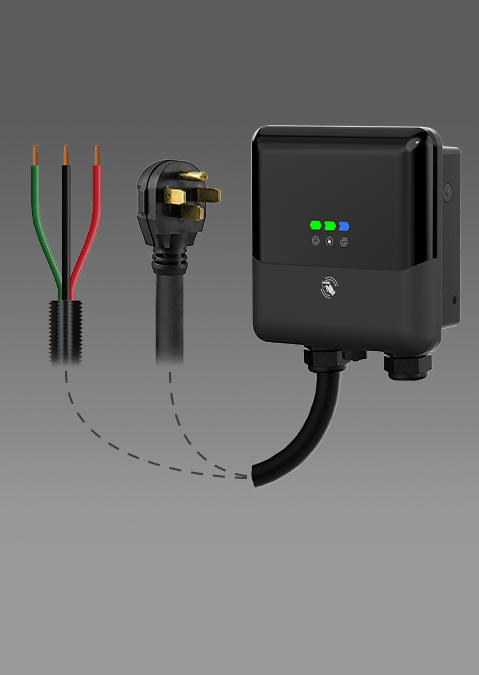

5.Supports plug-in (40A only) or hardwired connection

Enhanced Design

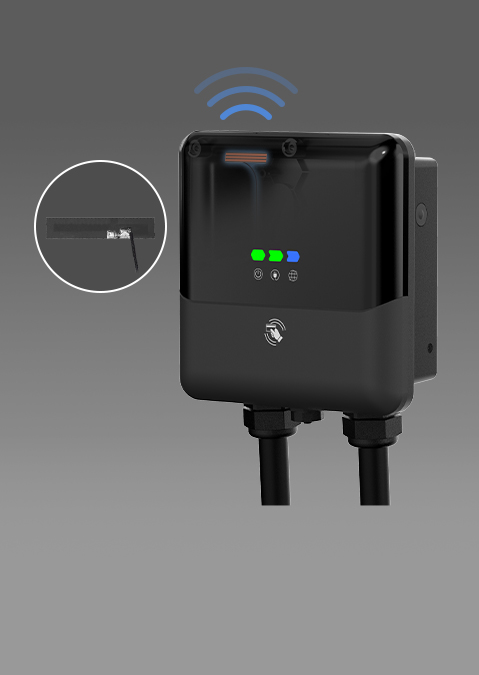

1.Stronger, more stable Wi-Fi with upgraded antenna
2.Durable nylon gun head with ergonomic grip
3.Dual compatibility with Type 1 and NACS for flexible charging

Flexibility

1.Multiple connectivity methods including Wi-Fi, Bluetooth
2.Start charging with ease via Plug & Play, RFID, or mobile app
3.Custom-branded app and platform supported

High Reliability

1.FCC, ETL & ENERGY STAR
2.IP66 and IK10 protection ratings

Safety and Endurance

1.Integrated multi-layer protection system
2.Efficient copper-based thermal management
3.One-button reset function streamlines troubleshooting

Smart Connectivity

1.Smart control via user-friendly app using Wi-Fi or Bluetooth
2.Supports OCPP 1.6J protocol for flexible backend integration
3.Load balancing & PV charging (Pro version)
4.Remote configuration made easy with PowerConfig web platform

Key Features OF EV charger at a Glance
Innovative Details, Premium Quality

Durable, Low Maintenance Design for Long-Term Profitability

With an IP66 and IK10 protection rating, this EV charger is built to withstand harsh conditions and require minimal maintenance. This durability translates into long-term cost savings for end-users, positioning it as a high-value product that can be trusted for years, boosting customer satisfaction and repeat business.

Expand Your Product Offerings with Versatile EV Charging Solutions

By offering a charger that supports both Type 1 and NACS connectors, you tap into a larger market segment, catering to a wide range of electric vehicle models and increasing your sales opportunities across multiple customer bases.

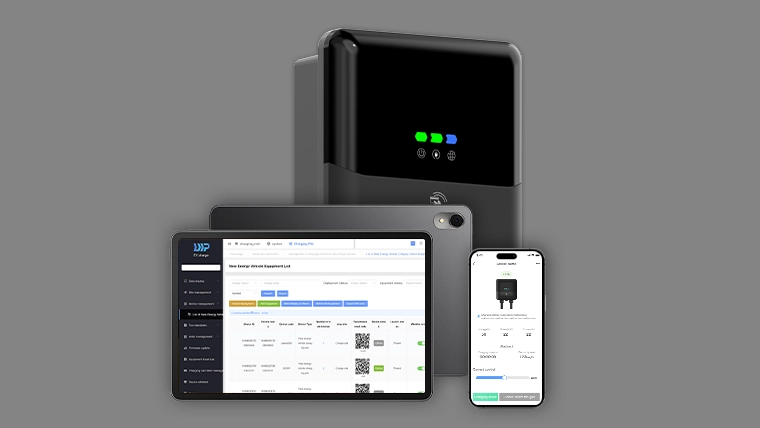

Complete Home Charging Solution with App and Platform

This EV charger is paired with an intuitive app for end-users and a powerful platform for you, enabling easy management and scheduling of charging sessions. By offering both hardware and software, you provide a seamless, convenient solution that enhances the customer experience and drives sales opportunities for your business.

UNR1 vs. UNR1Pro – Key Differences

Network Connectivity: The UNR1 supports WiFi/BT for basic network connections, while the UNR1Pro adds the option for LAN connectivity, providing a more stable connection, especially suited for commercial use.

Expandability: The UNR1Pro offers RS485 and CT-clamp options, allowing for more flexible setup and integration in larger commercial systems. The UNR1 does not have these expansion options.

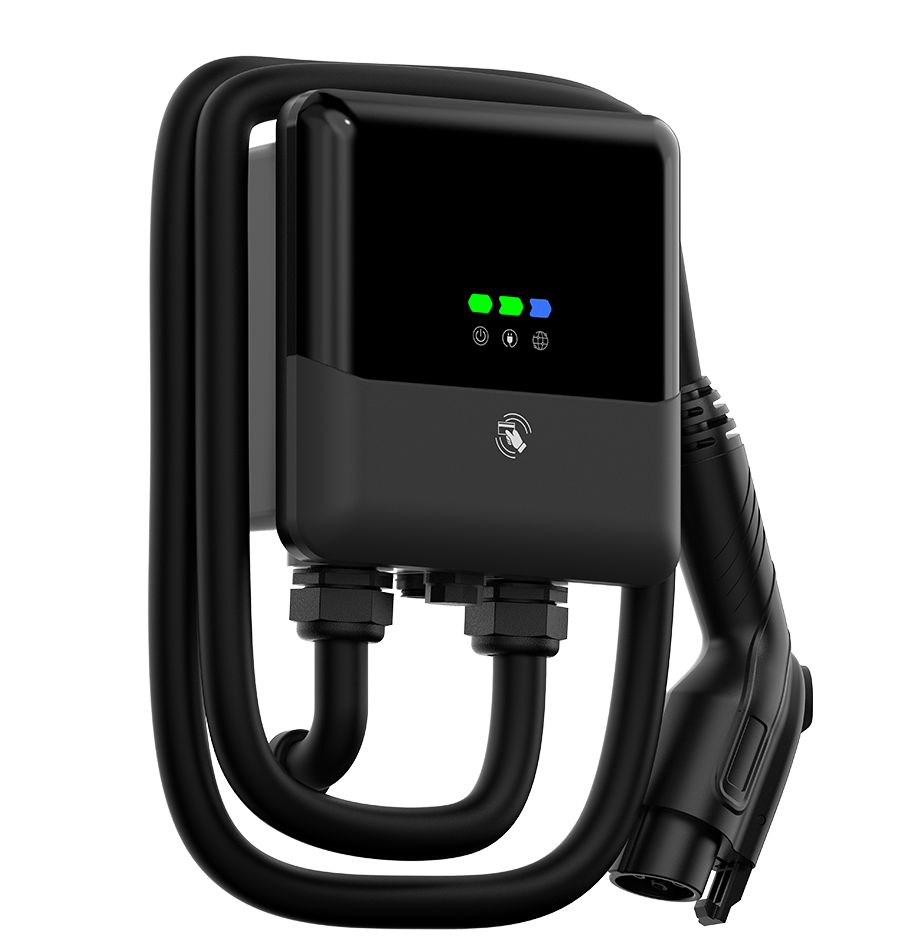

UNR1 Type 1 Specifications

Rated Power: 40A, 48A

Voltage: 208/240V, 180 to 264 VAC

Input Connector: 40A Version: MEMA 14-50, Hardwired Optioanl; 48A Version: Hardwired

Charging Connector: SAE J1772 (Type 1), SAE J4300 (NACS) Optional

Mounting Type: Wall-mount / Pedestal-mount

Cable Length: 25ft

Remote control: U-Charger APP

Network Interface: WiFi/BT Standard

Protocols: OCPP 1.6J

Extend:Without

IP/IK Level: IP66/IK10

Operating Altitude: ≤2000m, No Derating

Safety Protection: Ground Fault Detection: CCID20, Ground Monitor: UL2231, Surge Protection: 6kV @3,000A

Protection: UVP, OVP, OCP, OTP, Control Pilot Fault Protection, Relay-sticking protection, Ground Fault Protection

Safety Compliance: UL 2594 / CSA C22.2 No. 280-16, UL 2231-1 / CSA C22.2 No. 281.1-12, UL 2231-2 / CSA C22.2 No. 281.2-12

Certifications: ETL, FCC, Energy Star

Net Weight: 6.5KG/7.4KG

Gross Weight: 9.9KG/10.8KG

Product Dimensions: 341W*200D*111H(mm)

Package Dimensions: 395W*375D*295H(mm)

UNR1Pro

Type 1

Specifications
